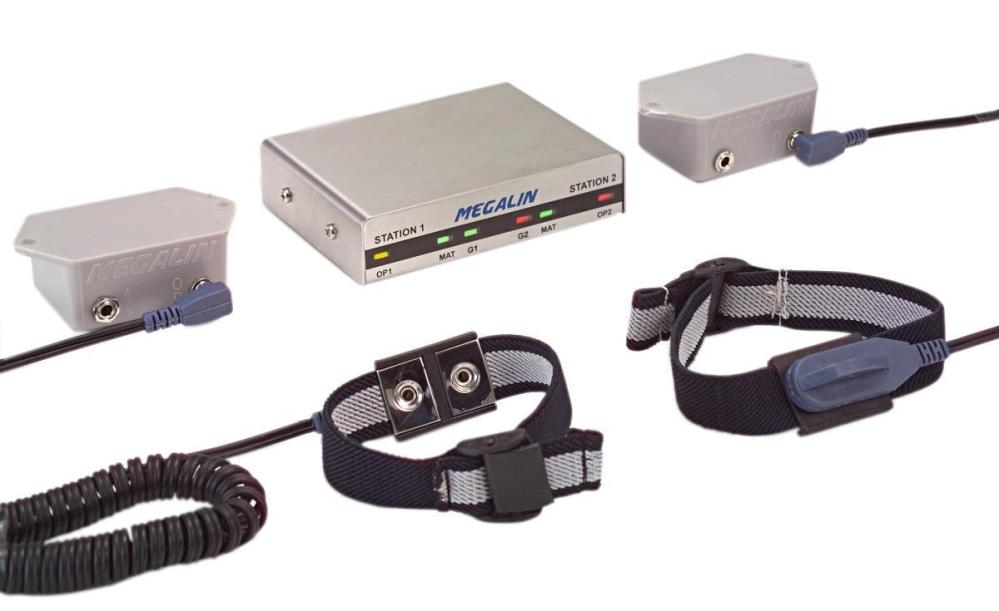

Eurostat Dual Workstation Monitor
Bilder
  • Eurostat Dual Workstation Monitor

Eurostat Dual Workstation Monitor

Art. nr: Eurostat Dual Workstation Monitor
3 500 kr

Antal




Produktbeskrivning

Versatile continuous monitor specifically designed for those price-sensitive
customers.
  • Based on a unique, accurate, low-voltage, resistive loop detection technology.
  • Being manufactured by precision SMT technology along with its compact stainless steel housing
  • Able to sustain supreme reliability
  • Can monitor the grounding of 2 operators and/or 2 ESD mats (100M)

Product Specifications
  • Monitor 2 operators, 2 ESD mats, 2 machines independently.
  • 3-color LED to indicate status of operator wrist-strap: HIGH, LOW, SAFE.
  • Audio and LED will give alarms when monitor detects problems on grounding.
  • Audio alarm volume is user adjustable with maximum of 85dB typical.
  • Normal voltage when wearing wrist-strap is 100mV.
  • Maximum mat voltage:900mV
Maximum machine voltage and current (Hard Grounding):50mV, 0.2m
