Schlöder SESD 230 30 KV ESD Simulator IEC/EN 61000-4-2

ESD simulator with air and contact discharge up to 30 kV, predefined test levels, discharge voltage indication, and programmable test sequences.


The ESD Simulator SESD 230 is suitable for performing EMC tests on systems in accordance with the standard IEC / EN 61000-4-2 (ESD test). Higher test levels can be set far beyond the standard limits. Depending on the test object and test setup, two test methods are to be used: Air discharge and Contact discharge. In air discharge the pulse is triggered by approaching the SESD 230 towards the DUT. With the method of contact discharge the test tip of the generator is placed directly on the test object.



Important: In the case of non-contacting (e.g. painted or oxidized surface), the impulses are not triggered. The display shows "No contact". This ensures that when triggering a discharge actually takes place. The contact discharge is the favourite test method since it is most reproducible. Air discharges are used when contact discharges are not possible e.g. at plastic housings.



Key Facts

  • 2 test methods are to be used: Air discharge and Contact discharge
  • Predefined standard test levels: Higher test levels can be set far beyond the standard limits
  • Displaying of the real discharge voltage at air mode
  • Programmable automatic test runs
  • Large display with easy to read digits
  • Battery and mains operation
SESD 230 is delivered with

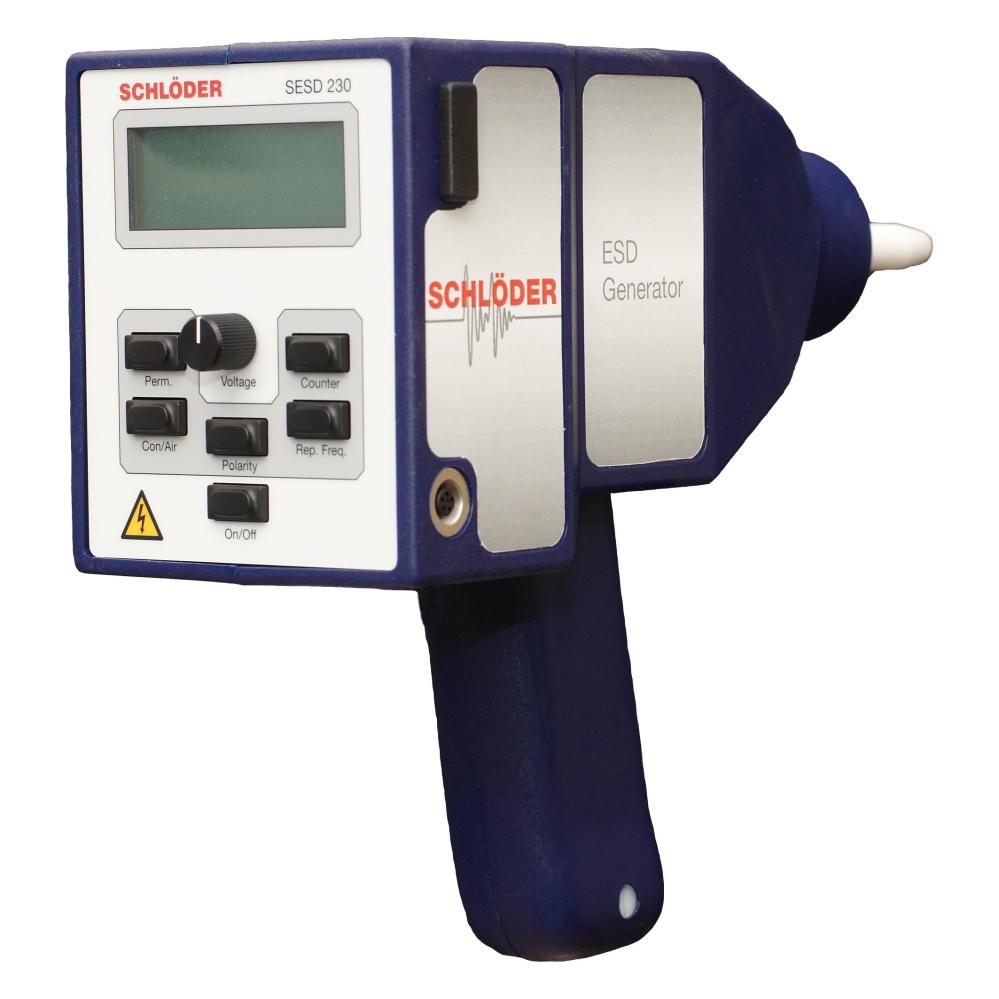

  • ESD simulator SESD 230
  • Battery charger incl. cable
  • Standard discharge electrodes for air discharge
  • (SESD 3020)
  • Standard discharge electrodes for contact
  • discharge (SESD 3021)
  • Weight (with content): aprox. 3,4 kg
  • Ground cable (SESD 231)
  • Manual
