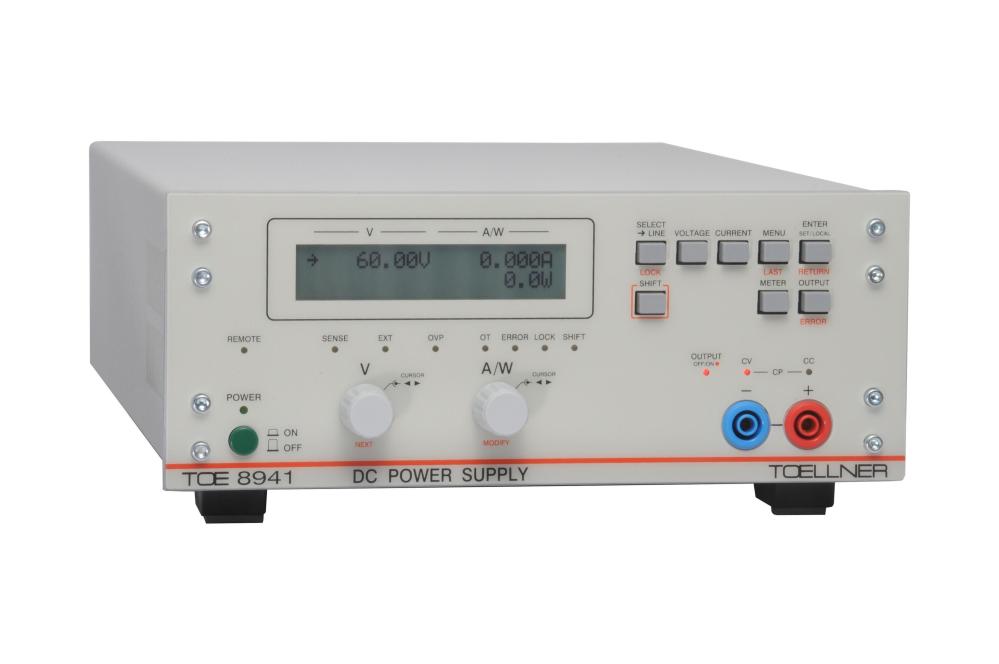

Toellner TOE 8941-80 Linjärt Nätaggregat

1-kanaligt nätaggregat med 0–80 V och upp till 5 A, 200 W uteffekt, autoranging, CV/CC/CP-läge, låg rippel och fjärrstyrning via analoga gränssnitt.

12 980 SEK

Det finns flera varianter av denna modell, välj i listan

The power supplies from the TOE 8941 series are suitable
for applications associated with:

  • Research / development
  • Laboratory / testing / experiments
  • Production / test bays
  • Quality assurance
  • Service / training

Special features:

  • Active wide range PFC: Input voltage 85 V to 265 V, 47 to 63 Hz
  • Autoranging
  • Can be used as constant voltage, constant current
    and constant power source (CV/CC/CP)

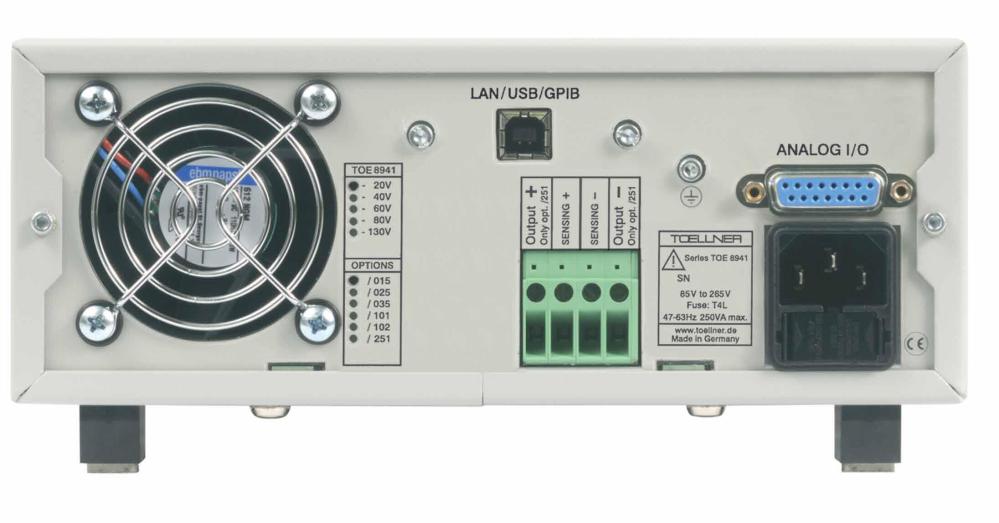

  • Outputs at front; at rear as optionOn/Off switching of the outputs
  • Sensing
  • Analog interfaces included as standard
  • USB, LAN or GPIB interfaces as option
  • Free LabViewTM driver
  • ½ 19" width, 2 HU design
  • Parallel installation possible

Options:

  • GPIB, USB and LAN interfaces
  • Interlock
  • Inhibit
  • Power output at rea

Produktinformation

  • Art. nr

    Toellner TOE 8941-80
