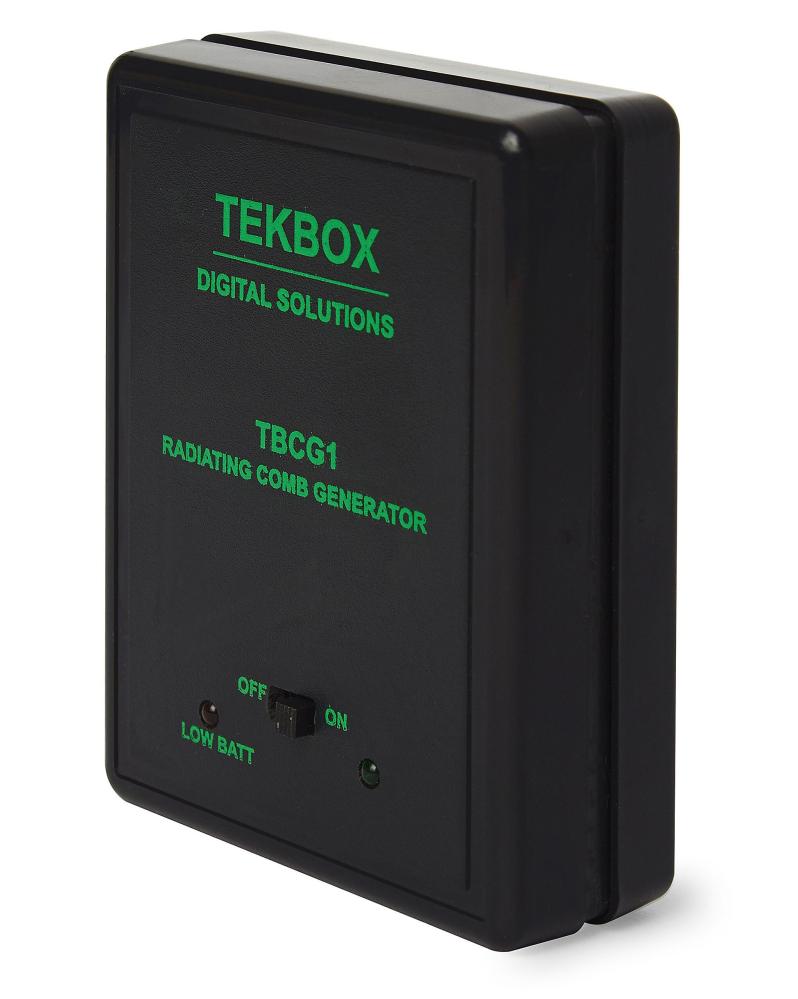

Tekbox TBCG1-25MHz Radiating Comb Generator
Radiating comb generator with a base frequency of 25 MHz, comb spectrum 30 MHz–6 GHz and internal antenna, battery-powered 9 V.
- Base frequency: 25MHz and 100 MHz
- Characterized comb spectrum: 30 MHz - 6 GHz
- Power supply: 9V PP3 (E-block) alkaline battery
- Current consumption: 175 mA
- Dimensions: 80mm x 61mm x 27mm
- Weight including battery: 76 g
The TBCG1 is a radiant comb generator with an internal antenna and a base frequency of 100MHz.

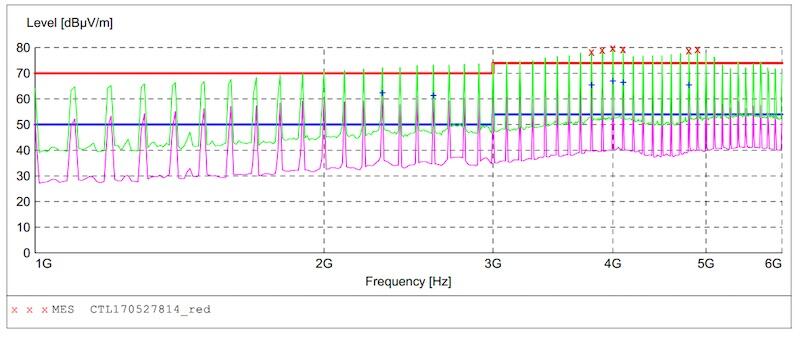

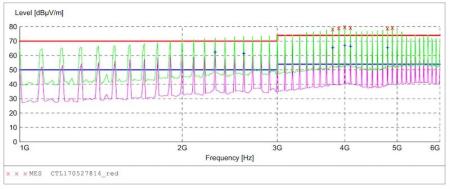

It emits a comb spectrum with up to 6 GHz.
The comb generator is built and characterized to serve as a rough reference for testing radiated noise setups in anechoic chambers, TEM/GTEM cells, shielded chambers, etc.
It is a portable device powered by a 9V alkaline cell.
Warning!
The TBCG1 radiates over a wide spectrum and significantly exceeds the radiated noise limits specified in any CISPR standard.
Use it only in a shielded environment to avoid interference with other electronic products
