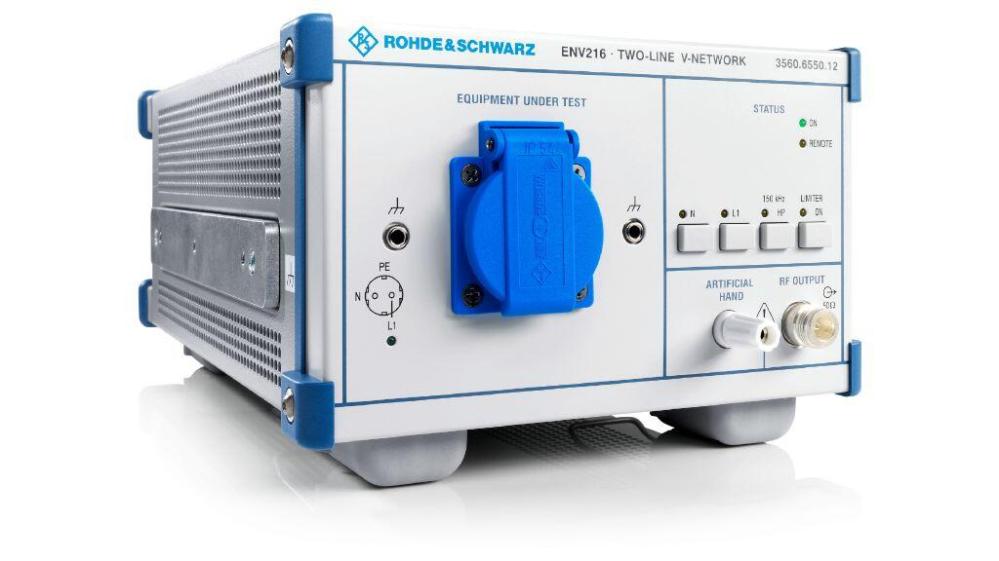

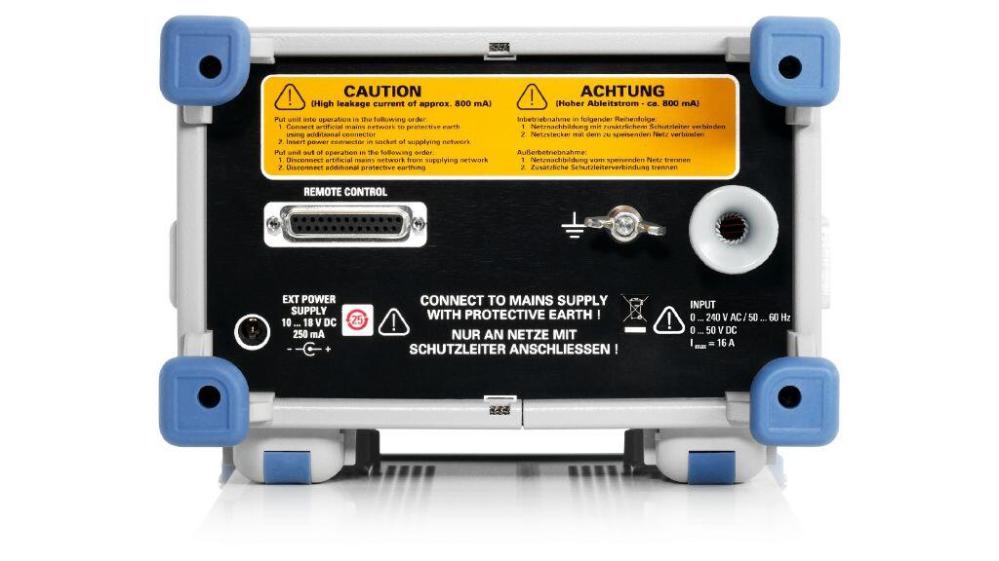

Rohde & Schwarz ENV216 Two-line V-network

Art. nr: 72459
36 050 kr

Antal




Produktbeskrivning

For disturbance voltage measurements on single-phase EUTs

The R&S ENV216 two-line V-network meets the requirements of CISPR 16-1-2 and EN 55016-1-2 for V-networks with a simulated impedance of (50 μH + 5 Ω) || 50 Ω in the frequency range from 9 kHz to 30 MHz as well as the ANSI C63.4 in the frequency range from 150 kHz to 30 MHz. A socket with protective earth contacts connects to the EUT. Various models with country-specific connector systems are available. The compact design and low weight make the R&S®ENV216 ideal for frequently varying applications, especially for on-site disturbance voltage measurements on single-phase EUT.

Key facts
  • Frequency range 9 kHz to 30 MHz
  • Power-handling capacity up to 16 A, constant current (country-specifi c)
  • Simulated impedance (50 µH + 5 Ω) || 50 Ω in line with CISPR 16-1-2 Amd. 2:2006
  • V-network in line with CISPR, EN, VDE, ANSI, FCC Part 15 and MIL-STD-461D, E and F
  • Calibrated in line with CISPR 16-1-2

Dokumentation

pdf
Ladda ner datablad >>
pdf
Ladda ner manual >>



Mer information

Benefits and key features

Air-core design and artificial hand
The R&S®ENV216 two-line V-network is based on air-core
inductances and contains an artificial hand.

Switch-selectable highpass filter of 150 kHz
To prevent the measuring receiver from being overdriven
by low-frequency spectra of high level, a 150 kHz highpass
filter can be cut in.

Built-in 10 dB attenuator pad
To ensure standard impedance irrespective of the receiver
input attenuation, the R&S®ENV216 is equipped with a
10 dB attenuator pad.

Built-in pulse limiter (can be switched off)
A built-in pulse limiter which can be switched off protects
the receiver input.

Remote control with TTL levels (compatible with
Rohde&Schwarz measuring receivers)
TTL control inputs that can be driven by controllers and
Rohde&Schwarz measuring receivers are provided for
remote control in automatic test systems (phase selection
and activation of highpass filter). Optocouplers prevent
pick-up of external disturbance.
