A wide variety of measurements can be supported by the amplifier module.
It is also possible to mix measurements by adding different types of modules.

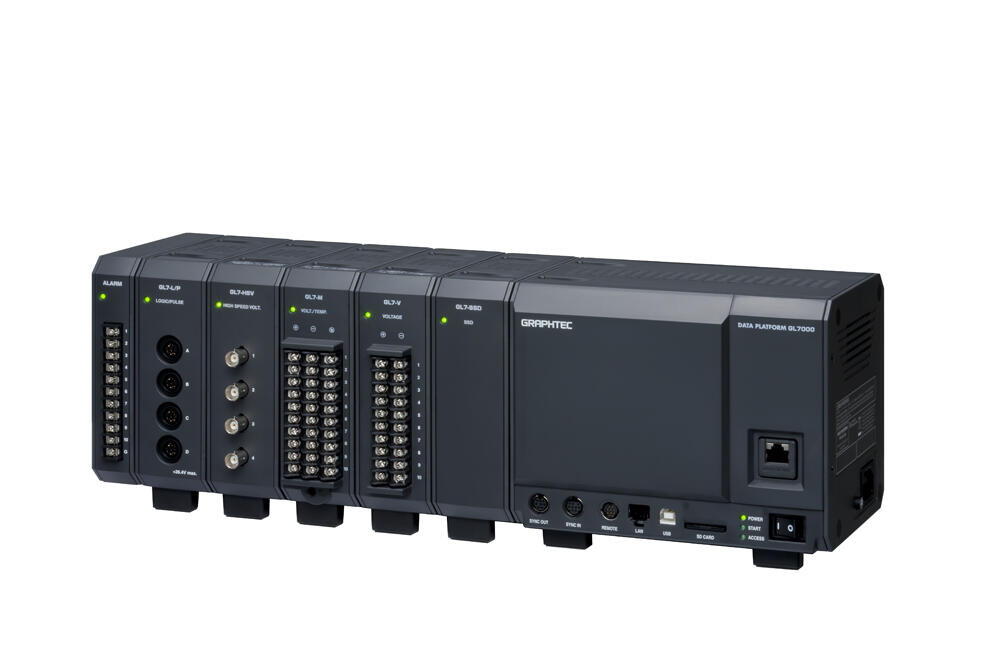

Up to 10 amplifier modules can be attached for multi-channel measurements, with up to 112 channels on one GL7000.
Up to 10 units of the GL7000 can be connected to 1 PC through LAN or USB and controlled using the software.
Multi-channel measurement is possible to 1120 channels using the PC.
Supports four destinations to save the captured data according to the conditions of the measurement.
1. Built-in RAM
2. Built-in Flash memory
3. SD memory card
4. SSD module (64GB)
FTP client function
Captured data is periodically transferred to the FTP server for backup when the GL7000 is connected to the LAN (Local Area Network).

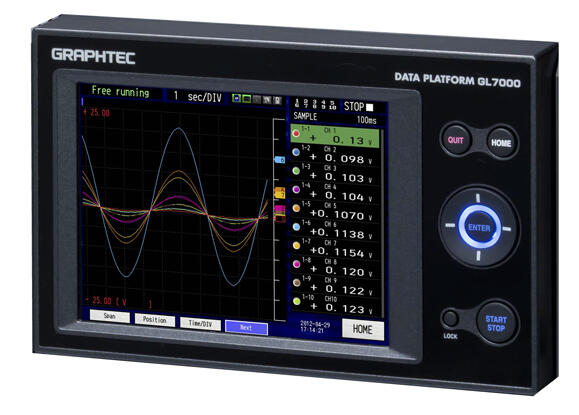

Improved ease-of-use with the high-definition display and touch panel makes setting the conditions intuitive, and it can also be operated using the cursor keys.
Up to 5 units of the GL7000 can be fully synchronized using the sync. cable
The start/stop trigger, and sampling can be synchronized in the GL7000 when they are connected by a sync cable. The master and slave units are automatically identified.

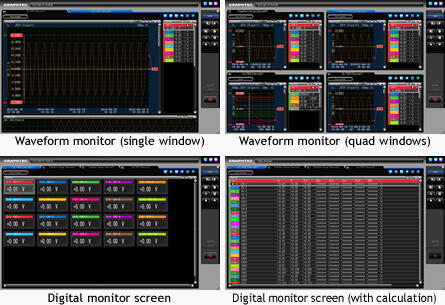

Various measurement screens
The measurement signal can be displayed as various types of screens by the unit, the module or the specific channels that are specified in the group function.

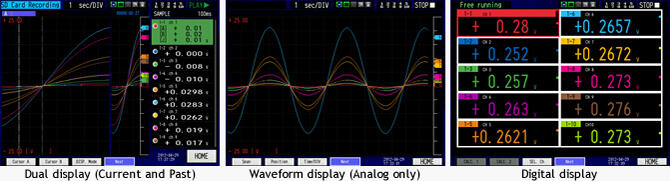

It can also be displayed as a combination of the capturing data and captured data, the Y-T format and the X-Y format, simultaneously. Up to 112 channels can be displayed in each window.*
(* In case of using dual screen, total 244 channels can be displayed).
