Model / Description

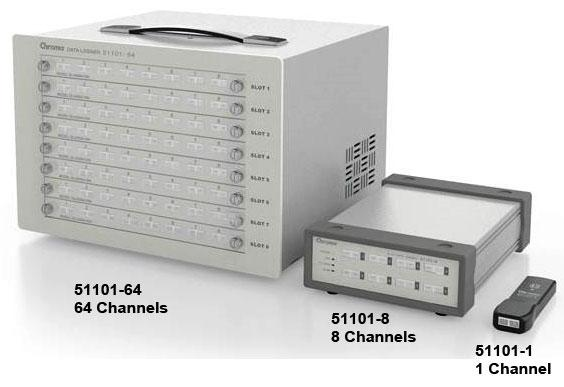

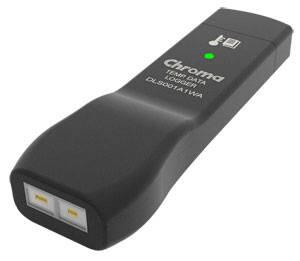

51101-1 Data Logger - 1CH

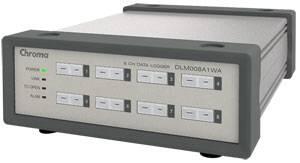

51101-8 Data Logger - 8CH

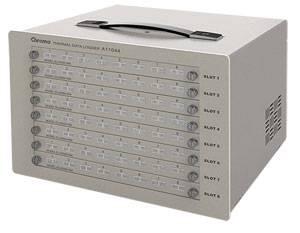

51101-64 Data Logger - 64CH

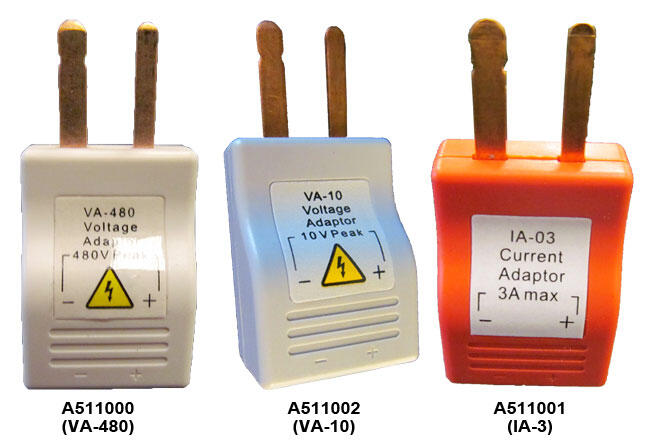

A511000 Voltage Adapter VA-480
A511001 Current Adapter IA-3
A511002 Voltage Adapter VA-10
A511003 8-Port Sensor Card
G12 000207 Filler Panel for empty A511003
It is a general requirement to record temperatures, voltages, currents, and many physics quantities during research, product development, productions, and quality assurance processes.
The number of record channels can be a simple one to several complicated set of hundreds.
Thermal/multi-function data loggers are prefect solutions to serve for these measurement and tracking needs.
There are several measurement products in the market to perform such a largescale and extensive time varying recording.
Some are expensive, some are limited in accuracy or resolution, and some have low immunity to interference.
Chroma thermal/multi-function data loggers are by far the most cost-effective solutions for versatility, accuracy, stability, and interference immunity among this category.
Chroma thermal/multi-function data loggers measure temperatures, voltages, and currents with high accuracy and resolutions.
For example, they support 8 types of thermocouple measurement with ITS-90 defined temperature range at 0.5˚C accuracy and 0.01˚C resolution*, while most data loggers in the market are at 1 ˚C accuracy and 0.1˚C resolution*.
Chroma loggers are with 1000VDC channel to channel isolation, which means they can attach thermocouple to objects with high electricity, such as batteries, solar cells, working PCB, etc., and still get correct data.
Many competitors are just malfunctioned or even damaged in those cases.

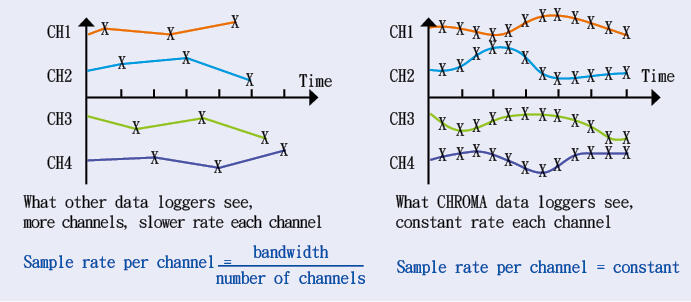

Data retrieve in Chroma loggers are in a parallel architecture, while most of competitors use a sequential multiplexing method.
This means data rate per channel is quick and constant for Chroma loggers, while others become much slower when number of channels is bigger.
Using Chroma thermal/multi-function data loggers, customers get confidence in measured data and high Performance/Cost ratio. Most of all, we can help in certain cases that our competitors fail, and only Chroma succeeds.
(*Thermal couple error excluded. Please see specification list for detail).
