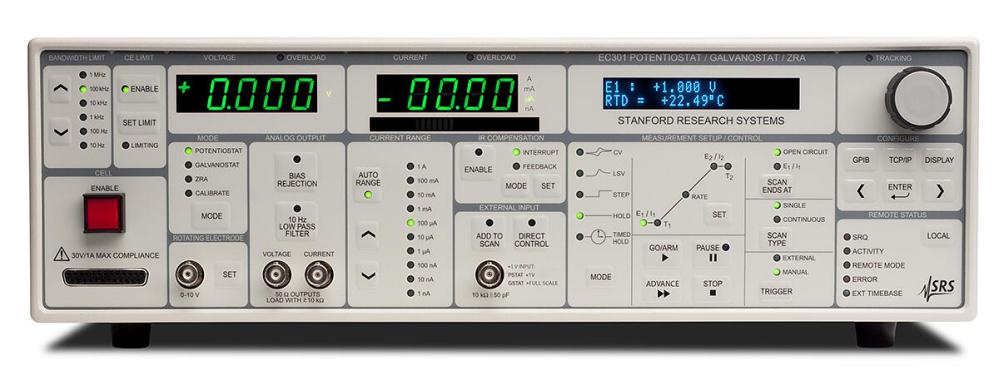

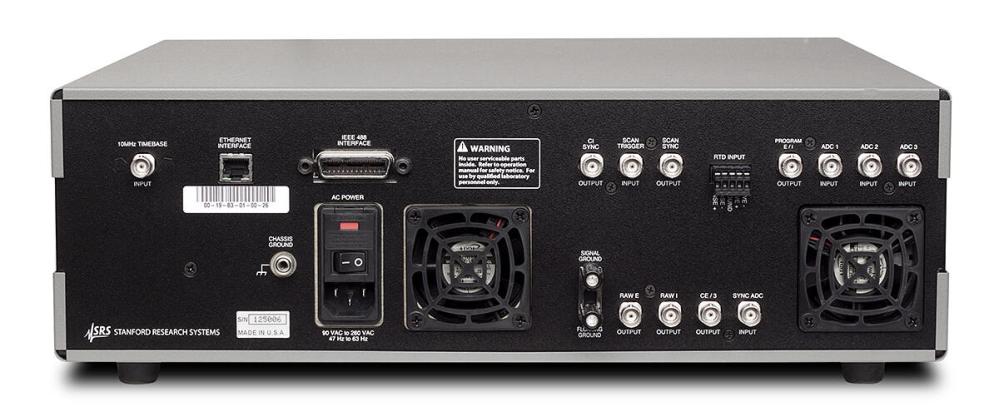

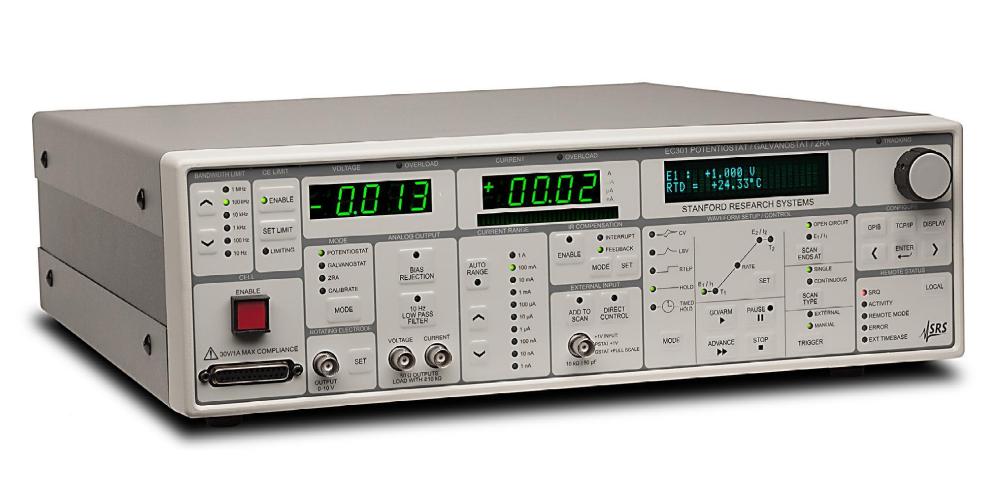

SRS EC301 Potentiostat/Galvanostat

Research-grade potentiostat/galvanostat with ±30 V compliance, ±1 A maximum current, 1 MHz EIS bandwidth, front-panel control, GPIB/Ethernet and free software.


The EC301 gives electrochemists the opportunity to equip their labs with high compliance, research-grade instrumentation at a very attractive price.



Stand-alone front-panel operation allows easy use in the field or in handling routine electrode preparation.



The free Windows software (SRSLab) has routines for all major electrochemical experiments and can be downloaded from the SRS web site.



The EC301 has an open command set which allows scientists to write their own unique waveforms and even write custom software.

  • ±30 V compliance voltage
  • ±1 A maximum current
  • ±15 V polarization range
  • Front-panel setup & operation
  • Free full-featured Windows software
  • 1 MHz control bandwidth for EIS
  • Ramps from 0.1 mV/s to 10 kV/s
  • GPIB and Ethernet interfaces

Product information

  • Art.no

    SRS EC301
