- Max. output power: 800 W
- Max. voltage per channel: 32 V or 64 V
- Max. current per channel: 10 A or 20 A
- Up to 250 V or 80 A in series or parallel operation
- Intuitive, price-transparent online product configurato
Boost your efficiency with quadcore power

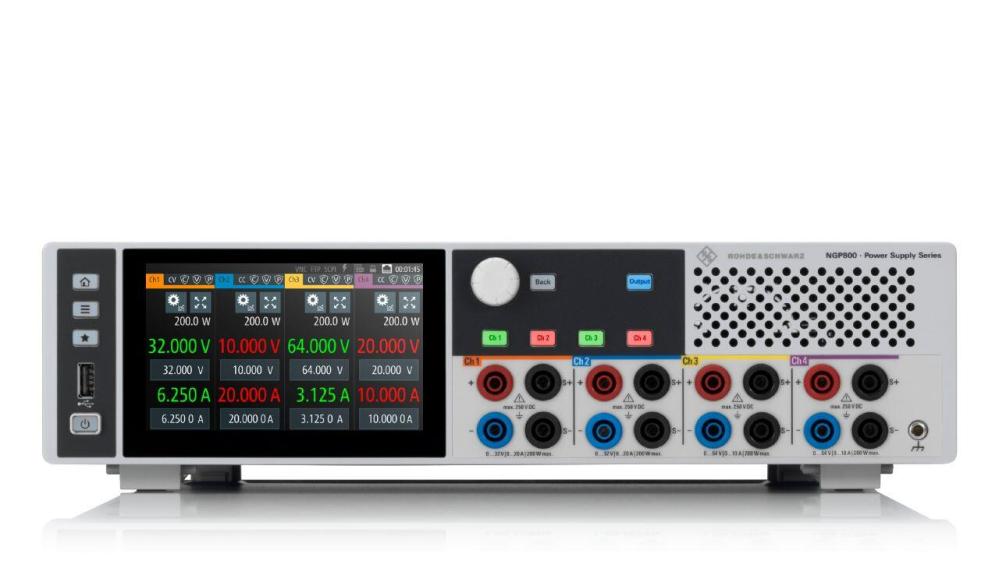

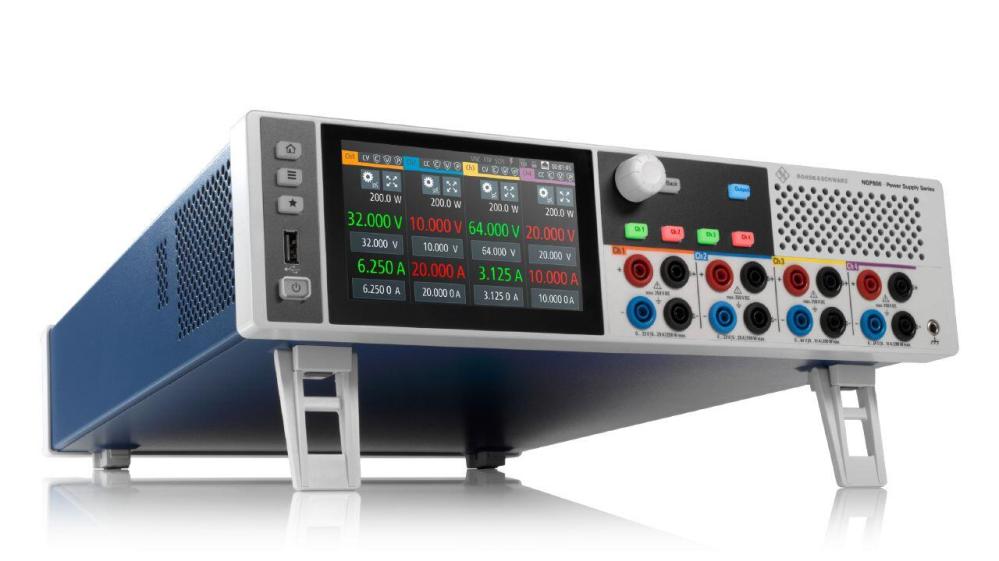

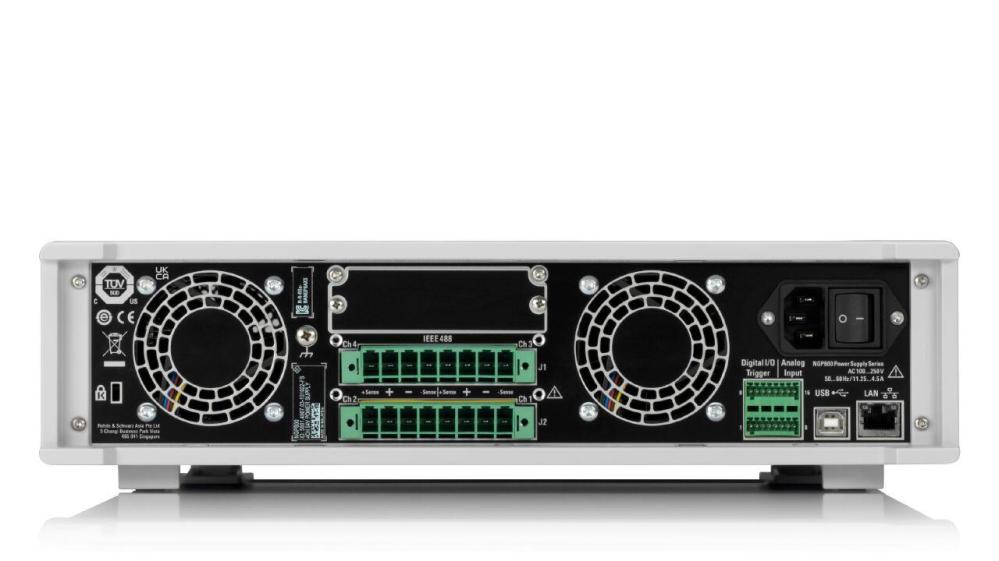

The R&S®NGP800 DC power supply series, comprising of five models with 400 W or 800 W, provides maximum power at a variety of operating points. The two or four 200 W outputs can each supply up to 64 V or up to 20 A. Electrically equivalent and galvanically isolated outputs can be wired in series or parallel for up to 250 V or 80 A. The R&S®NGP800 DC power supply series is ideal for a variety of T&M scenarios: automotive, R&D, manufacturing and general purpose use.
Configure your R&S®NGP800 with our online configurator tool for:
- full price transparency
- ease of configuration
- fast processing of your request and purchase from authorized distributor of your choice
NGP824COMB Complete package Contains serialized product+options:
R&S®NGP824 4-CH POWER SUPPLY 800W
5601.4007.03
consisting of:
-R&S®NGP824 4-CH POWER SUPPLY 64V/10A
-R&S®NGP-K103 DIGITAL TRIGGER I/O
-R&S®NGP-K107 ANALOG INPUT
