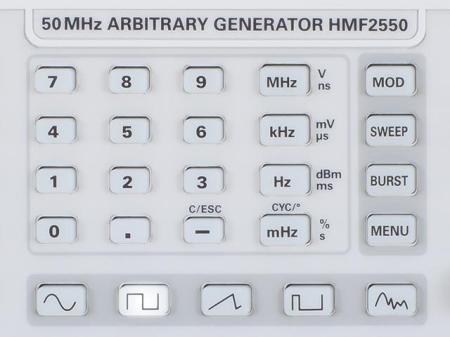

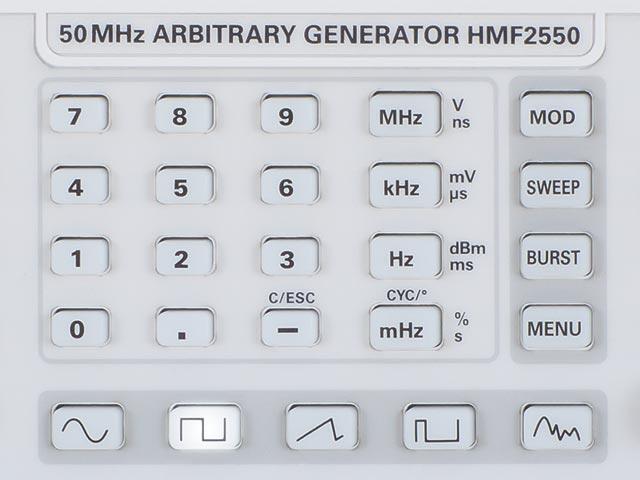

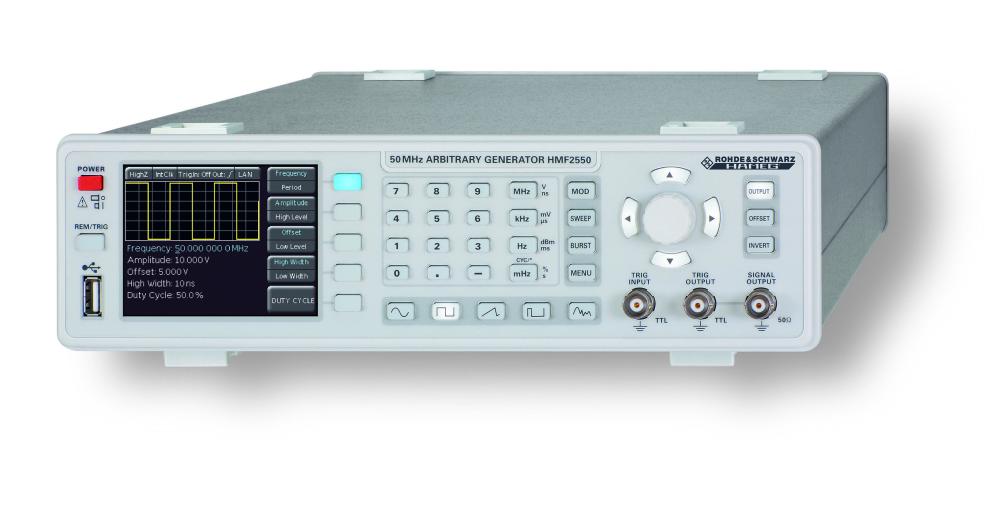

Rohde & Schwarz HMF2550 Arbitrary Function Generator 50MHz

Art. nr: Rohde & Schwarz HMF2550
19 500 kr

Antal




Produktbeskrivning

  • Frequency Range 10μHz...50MHz
  • Output Voltage 5mVpp...10Vpp (into 50Ω) DC Offset ±5mV...5V
  • Arbitrary Waveform Generator: 250MSa/s, 14 Bit, 256kPts
  • Sine, Square, Pulse, Triangle, Ramp, Arbitrary Waveforms, incl. Standard Curves (white Noise, Cardiac etc.)
  • Total harmonic Distortion 0.04% (f <100kHz)
  • Burst, Sweep, Gating, external Trigger
  • Rise Time <8ns, in Pulse Mode 8...500ns Variable-Edge-Time
  • Pulse Mode: Frequency Range 100μHz...25MHz, Pulse Width 10ns...999s, Resolution 5ns
  • Modulation Modes AM, FM, PM, PWM, FSK (int. and ext.)
  • 10 MHz Timebase: ±1ppm TCXO, rear I/O BNC Connector
  • Front USB Connector: Recall of Waveforms
  • 8.9cm (3.5") TFT: crisp Representation of the Waveform and all Parameters
  • USB/RS-232 Dual-Interface, optional Ethernet/USB or IEEE-488 (GPIB)

Dokumentation

pdf
Ladda ner datablad >>



Mer information

Demovideo, klicka på bilden ovan!
