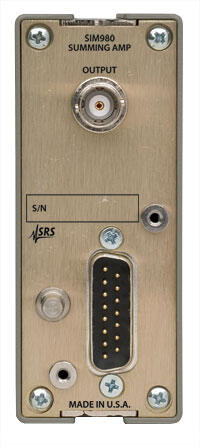

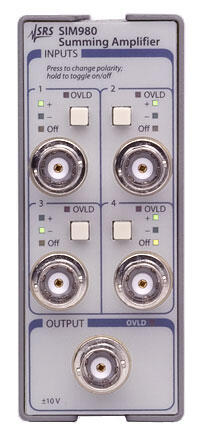

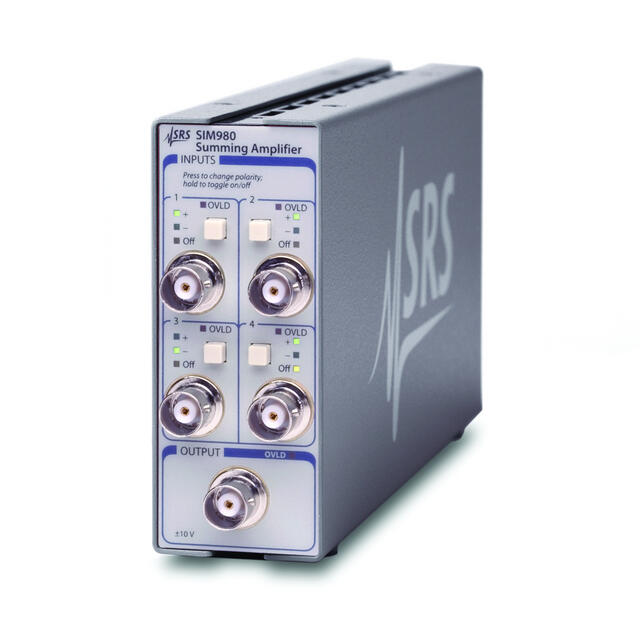

SRS SIM980 Four channel analog summing amplifier

Art. nr: SRS SIM980

Begär offert




Produktbeskrivning

  • Four summing inputs
  • ±10 V operating range
  • 1 MHz bandwidth
  • Low crosstalk (-80 dB)
  • <100 µV input offset
  • High slew rate

The SIM980 Summing Amplifier has four input channels that can be added or subtracted from each other.

The output noise is less than 60 nV/√Hz, and crosstalk between channels is less than -80 dB. With a bandwidth of 1 MHz, a slew rate of 40 V/ms, and input offsets that are trimmed to ±100 µV, the SIM980 is extremely useful in many analog applications.



The digital control circuitry in the SIM980 is designed with SRS's special clock-stopping architecture in which the microcontroller is turned on only when switch settings are being changed. This guarantees that no digital noise contaminates low-level analog signals.





Mer information

Specifications



Number of inputs 4
Function Inverting, non-inverting or off
Gain
Impedance 1 MΩ
Bandwidth DC to 1 MHz
Output noise 60 nV/√Hz @ 1 kHz
Crosstalk -80 dB @ 1 kHz
Offset ±100 µV (after 5 min. warm

up)
Max. input & output ±10 V
Input slew rate 40 V/µs
THD 0.01 % (80 dB) @ 1 kHz
Output slew rate 75 V/µs
Operating temp. 0 °C to 40 °C, non-condensing

Interface Serial via SIM interface
Connectors BNC (5 front-panel, 1 rear-

panel)

DB15 (male) SIM interface
Power Power supplied by the SIM900

Mainframe, or optionally by a

user-supplied DC power supply

(±15 V and +5 V)

Dimensions 1.5" × 3.6" × 7.0" (WHL)
Weight 1.5 lbs.
Warranty One year parts and labor on

defects in materials and

workmanship
