SRS SIM910 Preamplifier
Low-noise BJT preamplifier with 4 nV/√Hz input noise, 1 MHz bandwidth, selectable gain 1–100, differential or single-ended input and remote control.

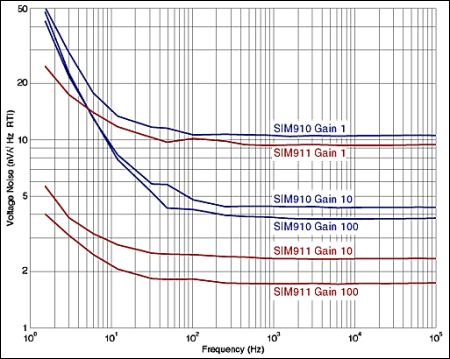

- 4 nV/√Hz input noise
- Low output noise
- 1 MHz bandwidth
- Selectable gain from 1 to 100
- AC or DC coupled
- Differential or single-ended input
- 85 dB CMRR
- Remote interface

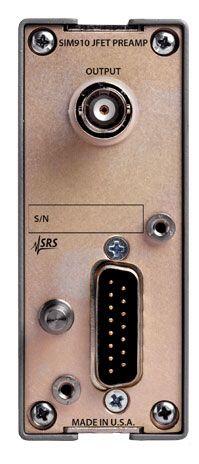

The module maintain very low output noise resulting in exceptional overall noise performance-even at low gain levels. The bandwidth of the preamplifier is independent of gain setting so waveforms do not change shape as the gain is varied. Dual parallel outputs (one frontand one rear) provide flexibility in cabling.

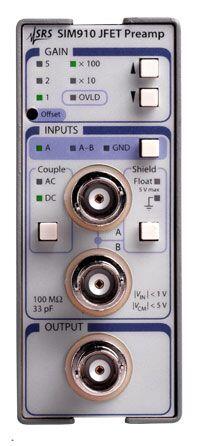

Inputs can be configured as differential (A-B), single-ended (A), or internally grounded, and can be either AC or DC coupled. Additionally, the BNC input shields can be floated, avoiding spurious ground loops when measuring remote signals.
The digital control circuitry in the SIM910 is designed with a special clock-stopping architecture in which the microcontroller is turned on only when settings are being changed.
This guarantees that no digital noise can contaminate low-level analog signals. Settings may be changed from the front panel or through the remote interface. All instrument settings can also be queried via the remote interface. The module generates a status signal to alert the user of an overload condition.
The SIM910 can be operated outside the SIM mainframe by powering it with the required DC voltage.
