Meatest M530 RF Resistansstandard

RF-resistansstandard för kalibrering av LCR-mätare upp till 100 MHz, 10 Ω–1 kΩ, låg frekvensberoende och fyrpolig BNC-anslutning för direktkoppling.

Begär offert

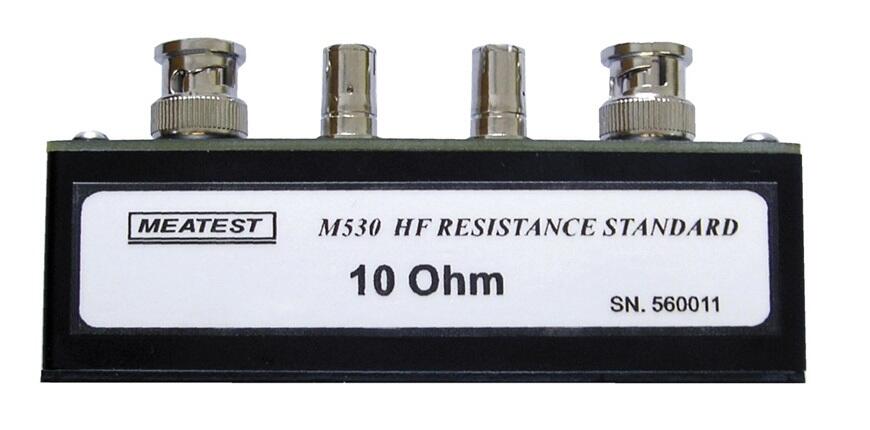

M530 series is designed specifically for calibration of LCR meters in frequency range from DC to 100 MHz, thanks to its HF design and using strip line technology.

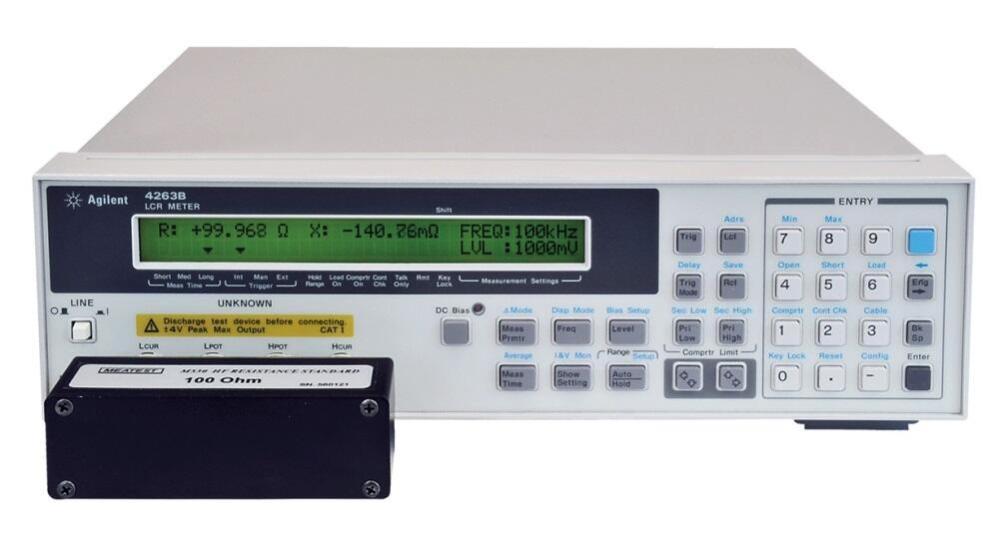

 Four-pair BNC terminal connection with 22 mm distance can be connected directly to UUT without additional test leads.

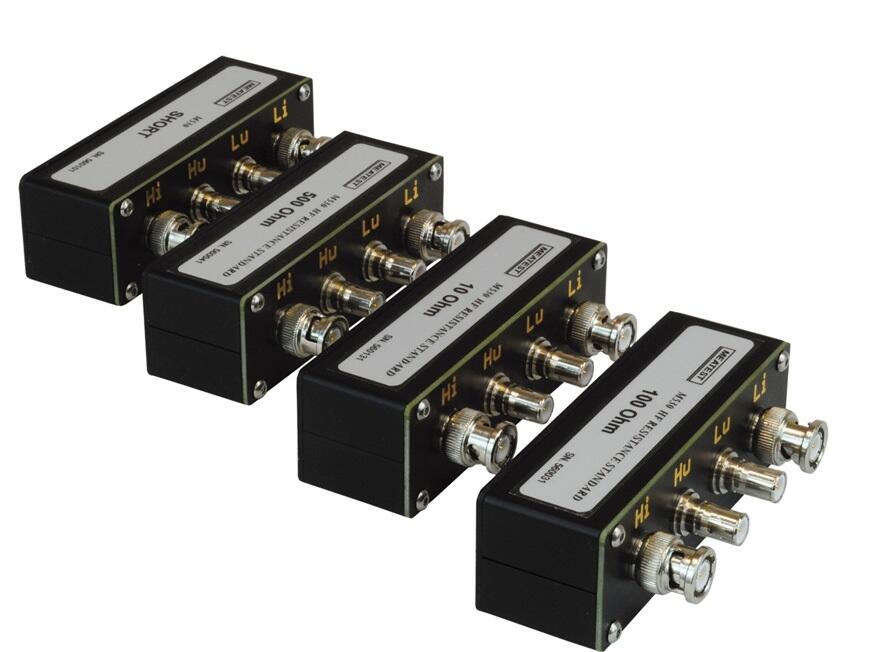

The standards are available with nominal values 10 Ω, 50 Ω, 100 Ω, 500 Ω, 1000 Ω in 1% tolerance.

Reference positions OPEN and SHORT for easy "zero" compensation are available as well.

  • Resistance range 10 Ω to 1000 Ω
  • Very low frequency dependency
  • Applicable frequency range to 100MHz
  • Calibration of wide frequency rangeLCR meters

Produktinformation

  • Art. nr

    Meatest M530
