Active Technologies PG-1500 Series Pulse Generator with High Amplitude

Art. nr: Active Technologies PG-1500 Series

Begär offert




Produktbeskrivning

Models:

  • PG-1501 (1 Channel Pulse Generator)
  • PG-1502 (2 Channel Pulse Generator)

Built-in options (Factory installed):

  • GP-IB and USB TMC (Paid option)
  • LAN - Gb Ethernet (Free of Charge)
Key Features:
  • Up to 2 channels
  • < 400 ps rise/fall time (20%-80%)
  • Adjustable output level from 100 mVpp to 50 Vpp
  • Adjustable baseline offset ± 25 V
  • Maximum repetition rate 400 MHz per channel
  • Pulse width from 1 ns to > 1 s
  • Width resolution 10 ps
  • continuous, single, burst, gated, external trigger mode
  • Trigger in to output jitter < 30 ps RMS
  • External clock-in and clock-out for easy synchronization

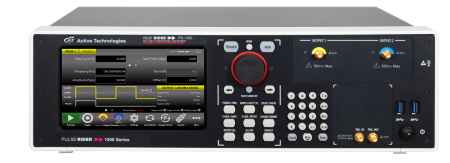

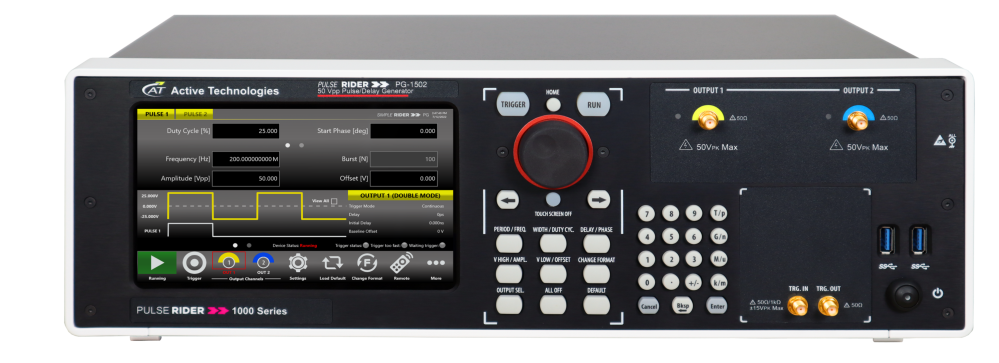

The Pulse Rider Series includes a set of fast rise time pulse generators, that offer premium signal integrity with the easiest to use touch screen display interface (SimpleRider™), that allows pulse creation in few screen touches.



The signal output Voltage can be adjusted up to 50 Volts pp-pk in a window of ±25 Volts with 400 ps edge rate.



Its innovative hardware architecture provides the possibility to generate multiple pulse sequences, such as double, triple or quad pulses, with fully independent timing parameters. The maximum repetition rate of Pulse Rider Pulse Generator is 400MHz and the minimum pulse width is 1 ns @ 50V



Take a look to the video to see how to create a  pulse, or download the full documentation to learn more.
