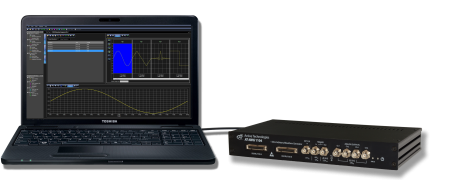

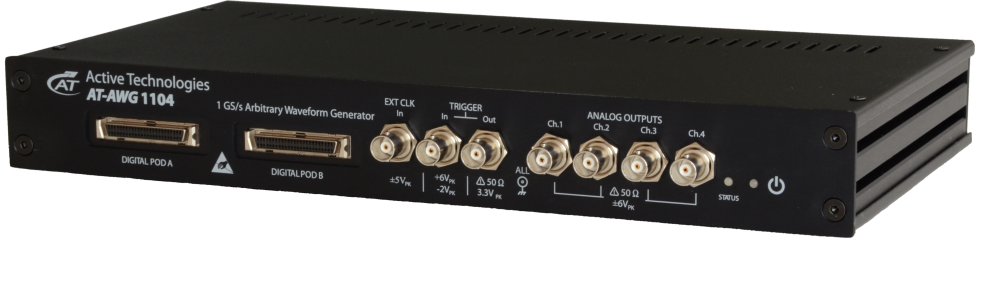

Active Technologies AWG-1102/1104 Series Arbitrary Waveform Generator

Art. nr: Active Technologies AWG-1102/1104 Series

Begär offert




Produktbeskrivning

Models:

  • AWG-1102 (2 channels)
  • AWG-1102D (2 channels, 18 digital channels)
  • AWG-1104 (4 channels)
  • AWG-1104D (4 channels, 36 digital channels)

Test with confidence:
  • 2 or 4 channel configuration with a maximum output of: 12 Vpp, 50 Ohm – 24 Vpp, Open circuit.
  • Synchronize multiple devices for up to 32 channels
  • Flexibility: Arbitrary and Direct Digital Synthesis (DDS) waveform generation
  • Modulation: built-in modulation capabilities:AM, PM,FM, ASK,PSK,FSK
  • Mixed signal generation: analog and digital pattern generation

Key Features:
  • 1 GS/s Sample Rate Interpolated – 250 MS/s Real Time
  • 125 Mhz Bandwidth
  • Long Memory: 2 Mpts/Ch
  • 16 bit Resolution
  • 2 and 4 channel models
  • Arbitrary and Direct Digital Synthesis (DDS) modes
  • Sweep and Burst mode
  • Modulation: AM,FM,PM,ASK,FSK,PSK
  • Sweep and Burst mode
  • Synchronize Multiple Devices for up to 32 Channels
  • Easy access to basic functiongenerator mode
  • Digital Pattern Generator: 18 or 36 channels
  • PWM Mode
  • SDK software package available for Microsoft Visual Studio and LabView

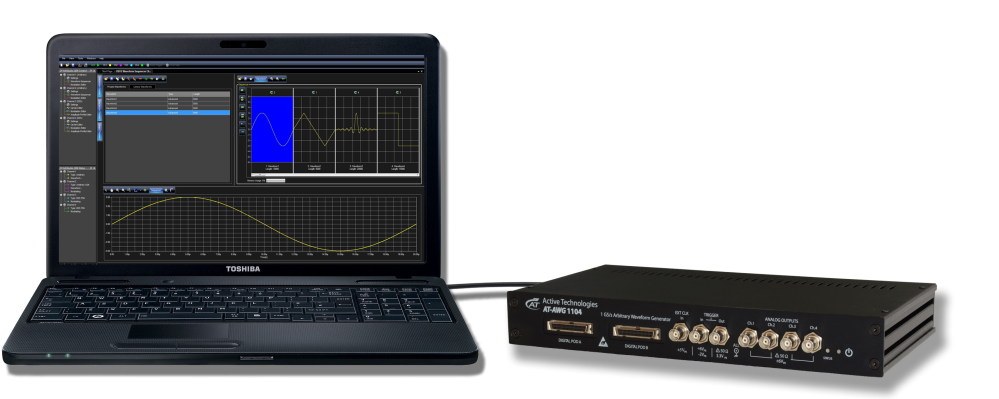

  • USB 2.0 PC Interface
  • 19″ Rackmount option (1104 and 1104D only)

A waveform generator must provide flexibility to cover a wide range of applications, high-performance to meet demanding signal requirements and be easy to use.
AT-AWG 1102/1104 meet the needs of today’s engineers and technicians with uncompromised performance, a wide variety of signal types, modulation schemes and generation modes all controlled through an intuitive, easy to use interface.
