Active Technologies ARB-Rider AWG-2000 Series Pulse Generator

Art. nr: Active Technologies ARB-Rider AWG-2000

Begär offert




Produktbeskrivning

Models:

  • AWG2182-2M (2 channels - 2Msample memory per channel)
  • AWG2182-64M (2 channels - 64Msample memory per channel)
  • AWG2182-256M (2 channels - 256Msample memory per channel)
  • AWG2184-2M (4 channels - 2Msample memory per channel)
  • AWG2184-64M (4 channels - 64Msample memory per channel)
  • AWG2184-256M (4 channels - 256Msample memory per channel)
License Options:
  • High voltage option (12Vpp instead of 6Vpp)
  • 8 digital channel licenses option
Built-in options (Factory installed):
  • LAN - Gb Ethernet (Free of Charge)
  • GP-IB and USB TMC (Paid option)
Key Features:
  • 600 MS/s (1.2 GS/s 2x interleaved), 16 Bit Vertical Resolution
  • Minimum Edge time down to 2.2 ns
  • Maximum dynamic range up to 12Vpp into 50 ohms (24V on open)
  • Up to 256 Mpts per Channel
  • up to 8 Digital Channels synchronous with analog Channels
  • SW User Interfaces: Simple Rider for AFG mode and Simple True Arb for AWG mode

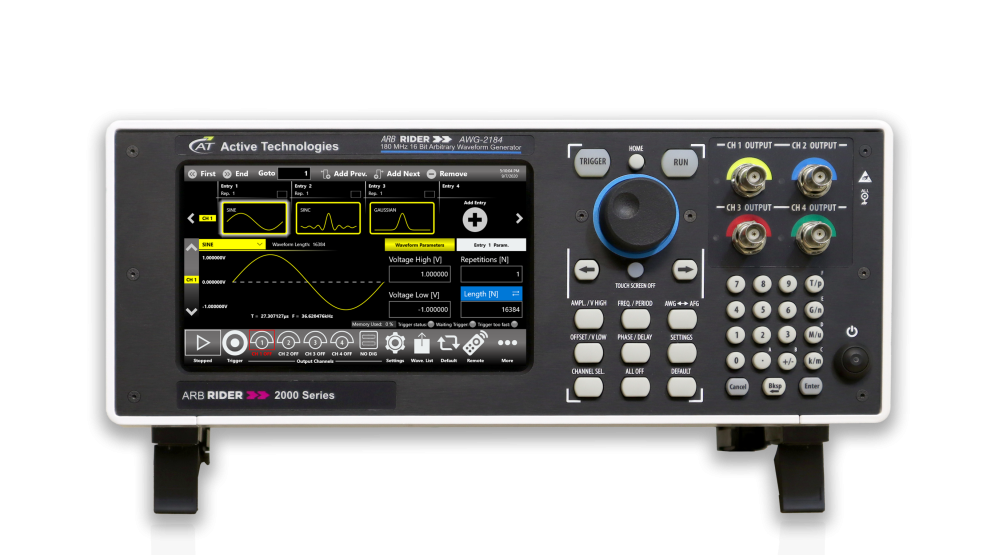

The ARB Rider AWG-2000 is the cost-effective and powerful 2 or 4 channel Pulse Generator with programmable rise and fall time.

Thanks to the extremely easy to use interface, it’s possible set a pulse train in few clicks. AWG-2000 is the ideal choice for physic experiment, automotive test validation, IoT & sensor emulation.
The 8 channel digital option combined with 2 or 4 analog channels make the AWG-2000 a full featured mix signal generator. It’s now possible generate 2 o 4 analog signals fully synchronized with 8 digital lines (LVTTL or LVDS standards).
