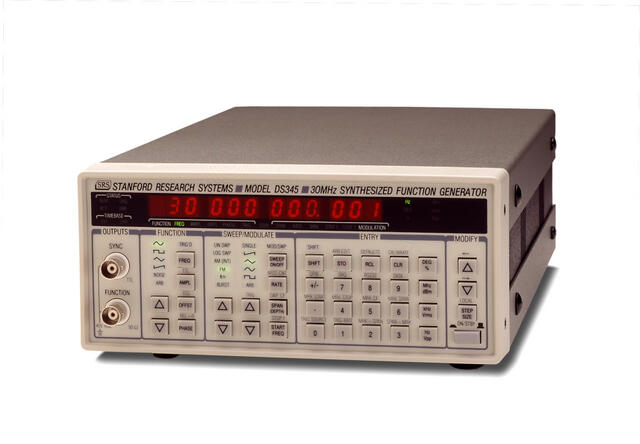

The DS345 Function Generator is a full-featured, 30 MHz instrument that uses an innovative Direct Digital Synthesis (DDS) architecture.
It generates many standard waveforms with excellent frequency resolution (1 µHz), and has versatile modulation capabilities including AM, FM, Burst, PM and frequency sweeps.
It also generates arbitrary waveforms with a fast 40 Msample/s update rate.
The DS345 isn't just a function generator. It's also a full-featured arbitrary waveform generator.
Output waveforms have 12-bit vertical resolution, and can be played back at rates up to 40 Msamples/s.
Since composing complex arbitrary waveforms at the keyboard can be a tedious task, Arbitrary Waveform Composer (AWC) software is provided at no charge.
AWC is a menu-based program which lets you create and edit arbitrary waveforms on the screen, store them, and download them to the DS345.
Click here for the latest version of the Windows AWC software.
