Start | Sortiment | Bänkinstrument | Generatorer | Arbiträra | SRS DS340, Direct Digital Synthesized Function and Arbitrary Waveform Generator, 15 MHz
SRS DS340, Direct Digital Synthesized Function and Arbitrary Waveform Generator, 15 MHzSRS DS340, Direct Digital Synthesized Function and Arbitrary Waveform Generator, 15 MHzSRS DS340, Direct Digital Synthesized Function and Arbitrary Waveform Generator, 15 MHzSRS DS340, Direct Digital Synthesized Function and Arbitrary Waveform Generator, 15 MHz
  • SRS DS340, Direct Digital Synthesized Function and Arbitrary Waveform Generator, 15 MHz
  • SRS DS340, Direct Digital Synthesized Function and Arbitrary Waveform Generator, 15 MHz
  • SRS DS340, Direct Digital Synthesized Function and Arbitrary Waveform Generator, 15 MHz
  • SRS DS340, Direct Digital Synthesized Function and Arbitrary Waveform Generator, 15 MHz

SRS DS340, Direct Digital Synthesized Function and Arbitrary Waveform Generator, 15 MHz

Art. nr: SRS DS340 Generator

Begär offert




Produktbeskrivning

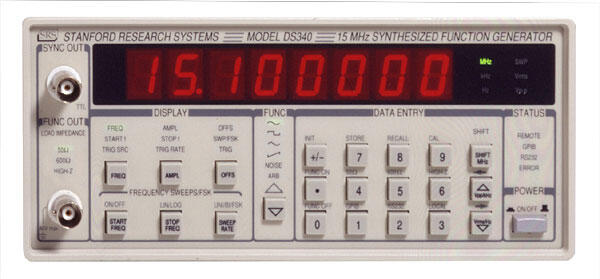

The DS340 is a 15 MHz function and arbitrary waveform
generator based on Direct Digital Synthesis (DDS).



A combination of features, performance and low cost make the DS340 ideal for a variety of test and measurement applications.



Sine waves and square waves can be generated at frequenciesup to 15.1 MHz, and ramps and triangles up to 100 kHz.

Frequency resolution is 1 μHz for all functions.



The DS340 also includes a 10 MHz Gaussian white-noise generator.



Mer information

  • 1 µHz to 15.1 MHz frequency range
  • 1 µHz frequency resolution
  • Sine, square, ramp, triangle and noise
  • Phase continuous frequency sweeps
  • 16,300 point arbitrary waveforms
  • FSK modulation

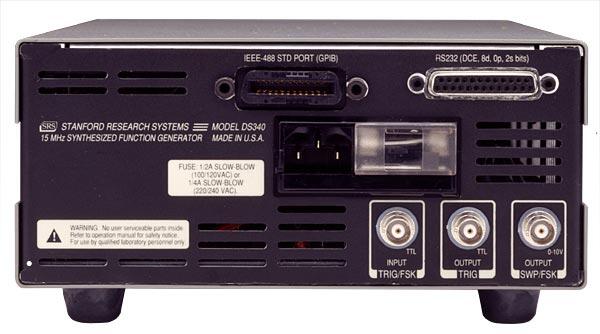

  • Option 01: RS-232 and GPIB interfaces
  • Option 02: 2 ppm TCXO Timebase




Relaterade

SRS Option 01 GPIB and RS-232 interfaces
SRS Option 01
SRS Option 01 GPIB and RS-232 interfaces
All instrument functions are controllable over the interface...
