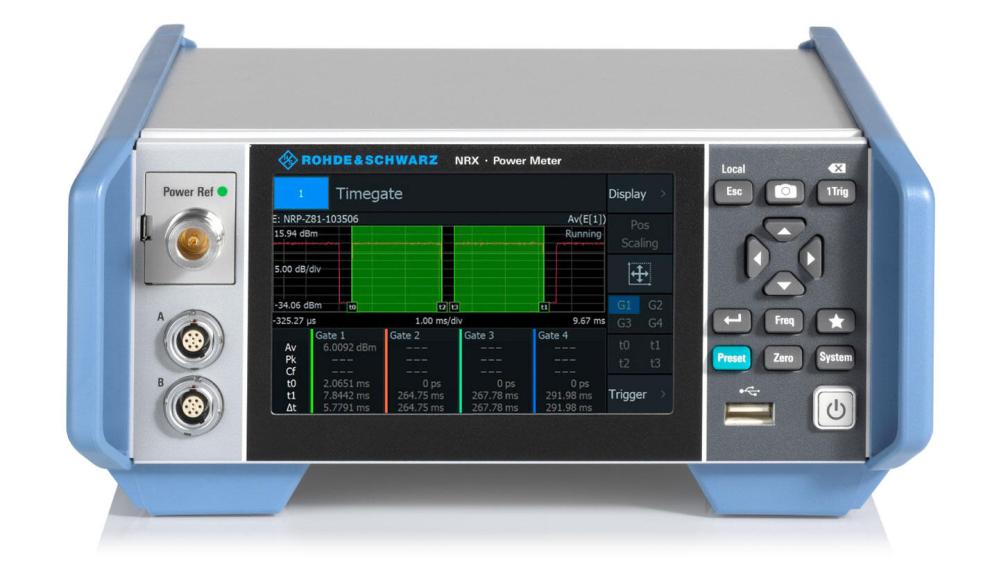

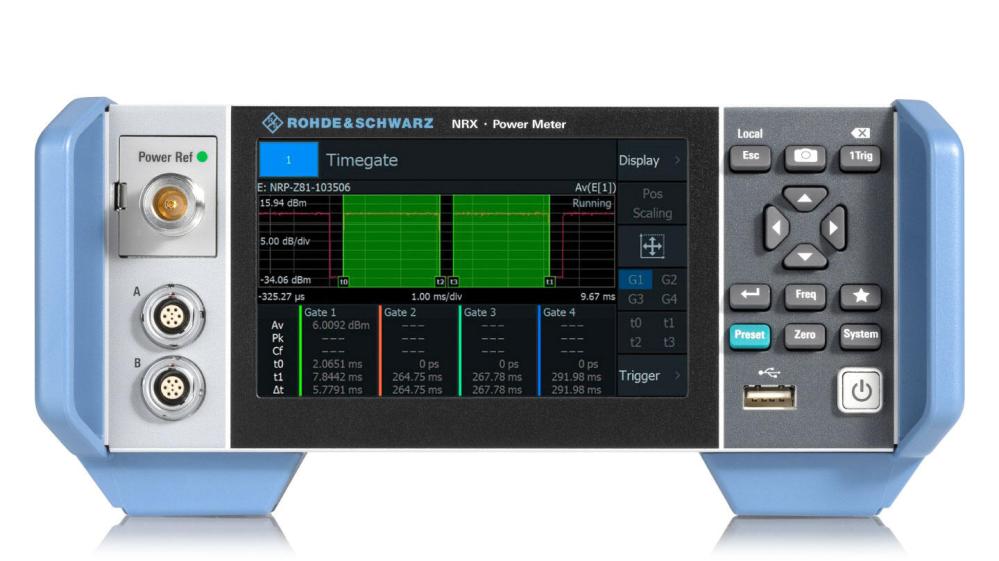

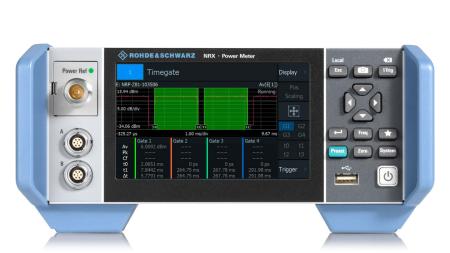

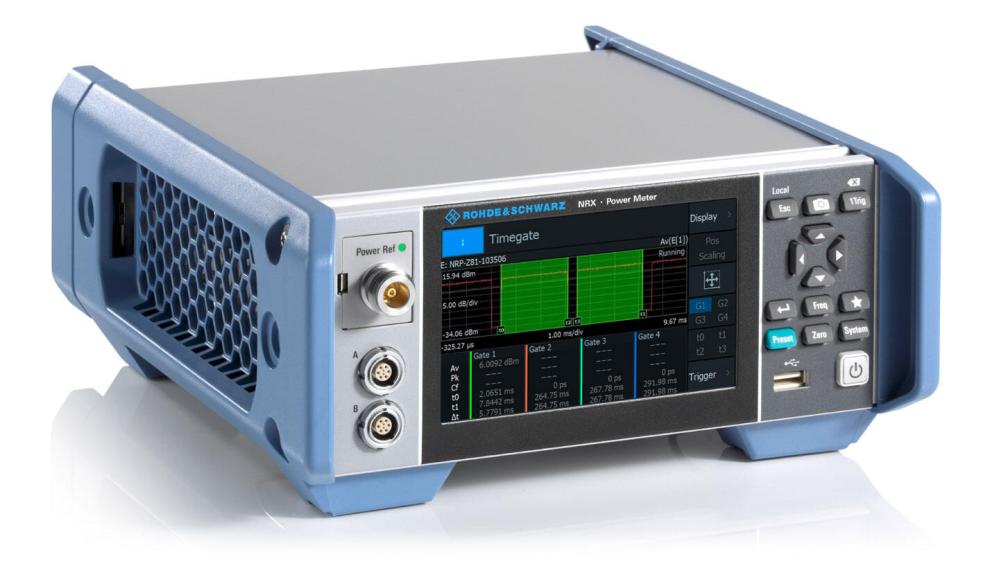

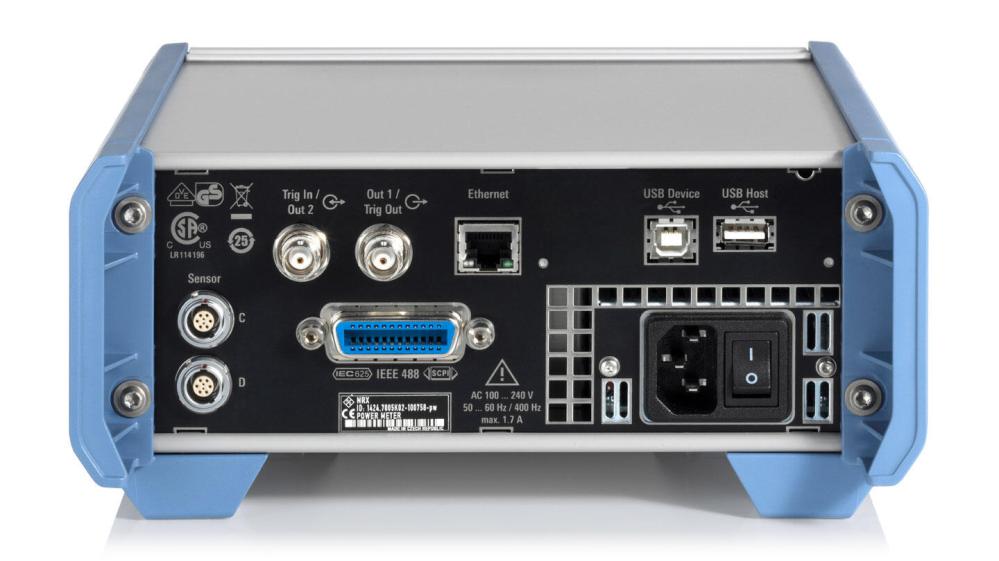

Rohde & Schwarz NRX Power Meter - Base Unit

Art. nr: R&S NRX Power Meter

Begär offert




Produktbeskrivning



  • Intuitive operation with touch screen based GUI
  • Supports up to four R&S®NRP and R&S®NRQ6 power sensors
  • Supports all sensor-dependent measurement functions
  • Optional high-precision CW and pulse mode reference source module
  • Optional power reflection measurements with NRT-Zxx sensors



The R&S®NRX simultaneously supports up to four R&S power sensors and displays the results clear on the flexible configurable screen.

The user interface with the touch screen based operating concept simplifies the operation.

In addition function keys on the front panel provide quick access to the most important functions.





Mer information

Users can open the frequency setting menu or zero the connected sensors at the push of a button.

User-programmable save/recall memory locations allow fast access to personal settings.



Presets for all major mobile radio standards, such as 3GPP LTE, 3GPP WCDMA, GSM/EDGE, WLAN and Bluetooth®, ensure correct measurement with a minimum of keystrokes.



The 5" TFT color display supports the intuitive, window based operating concept.

Key parameters and functions are color-coded and can be seen at a glance.

Results are presented in numerical and graphical display windows that can be easily configured.
