Sensepeek 4015 PCBite kit med 2x SP100 100 Mhz oscilloskop prober

Art. nr: 71989
1 485 kr

Antal




Produktbeskrivning

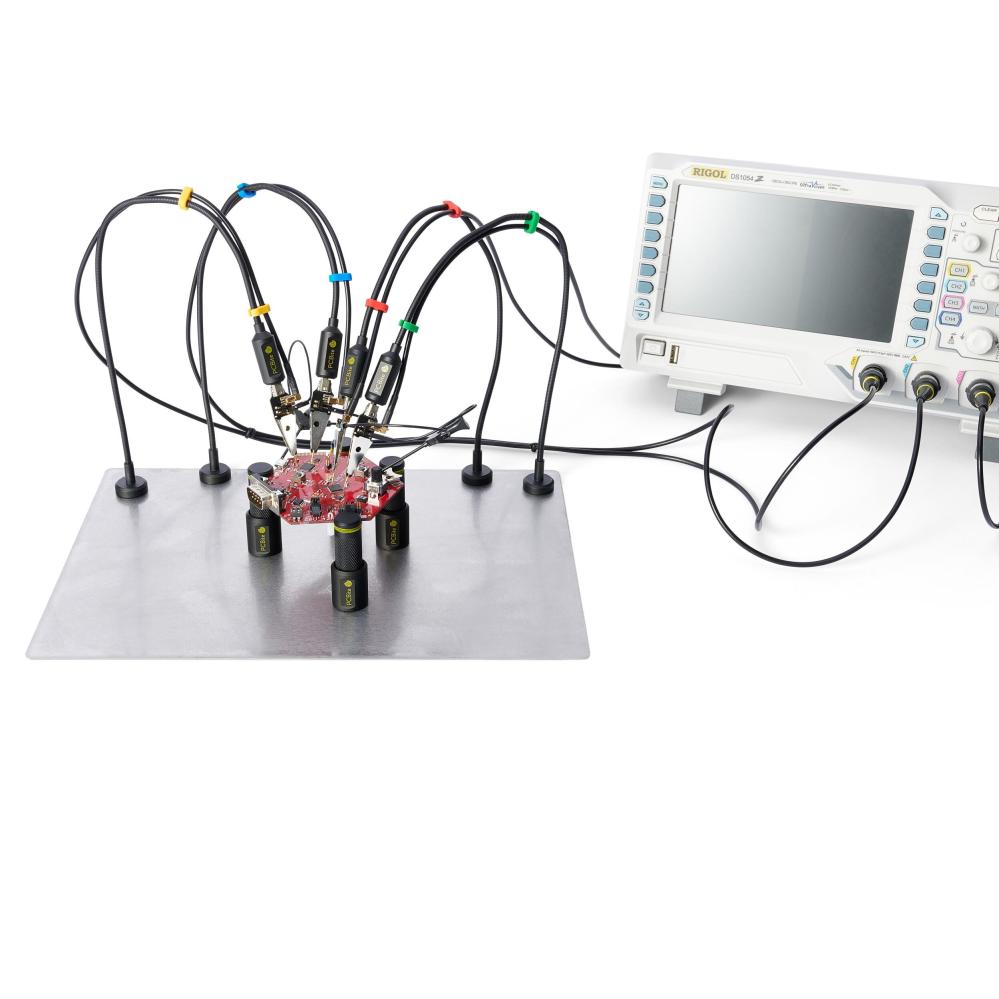

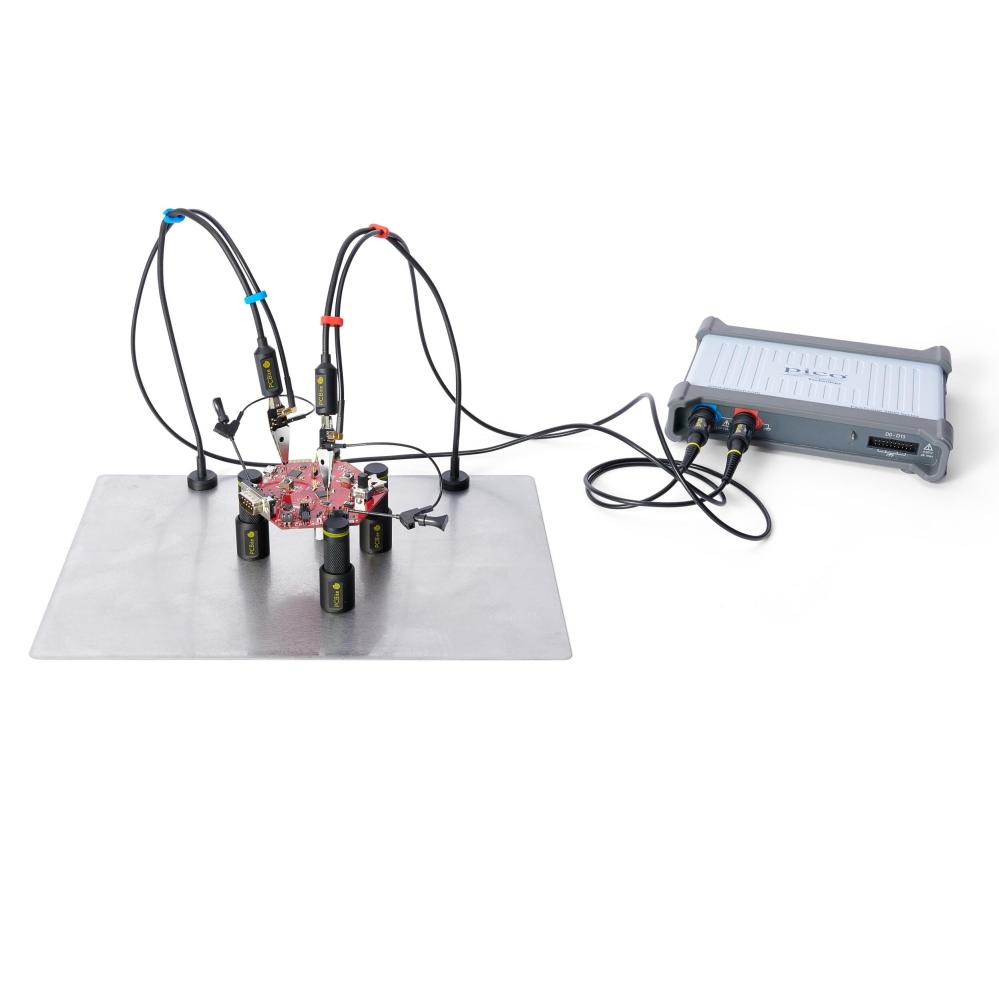

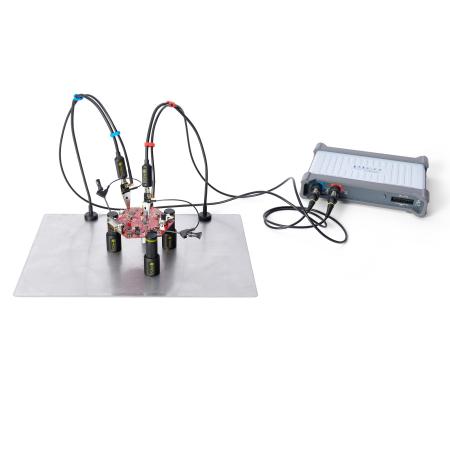

This complete kit includes everything you need for hands-free measurements with your oscilloscope.

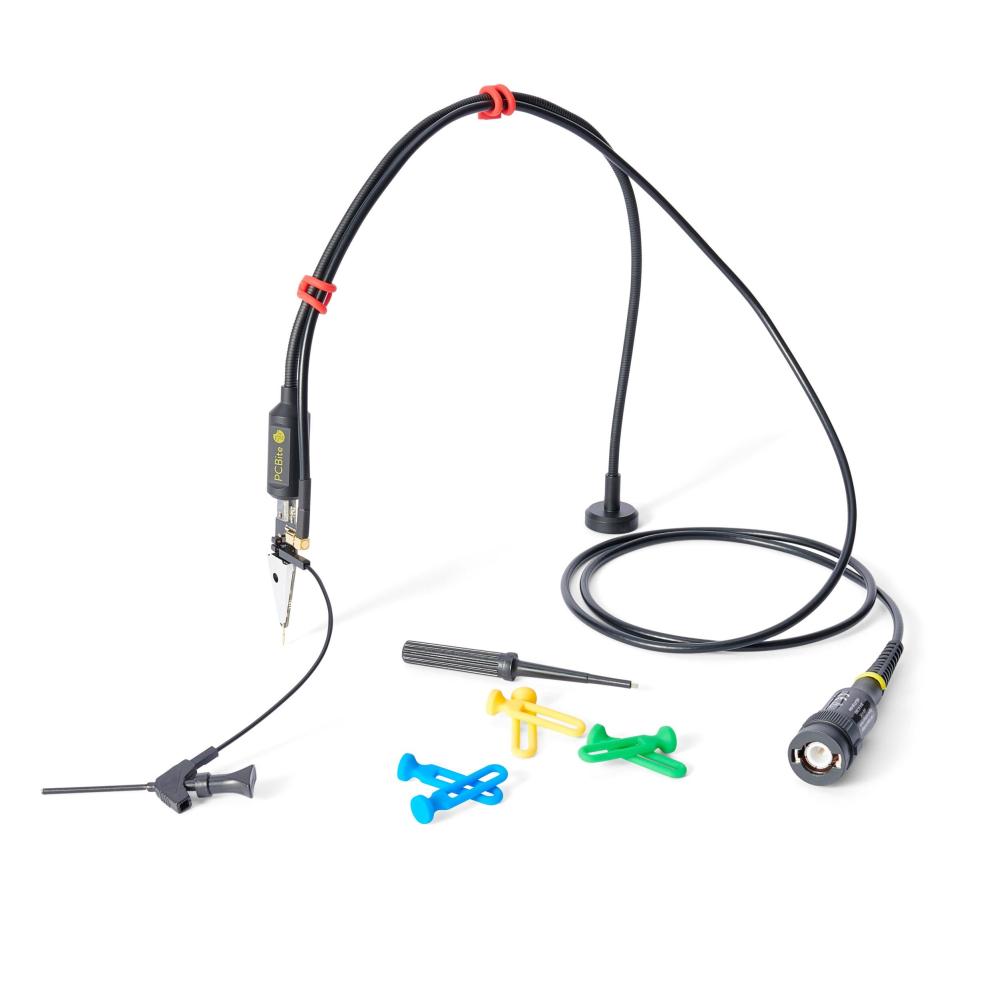

SP100 is the first truly handsfree 100Mhz 10:1 oscilloscope probe! Makes instant measurements or long triggering sessions a breeze.

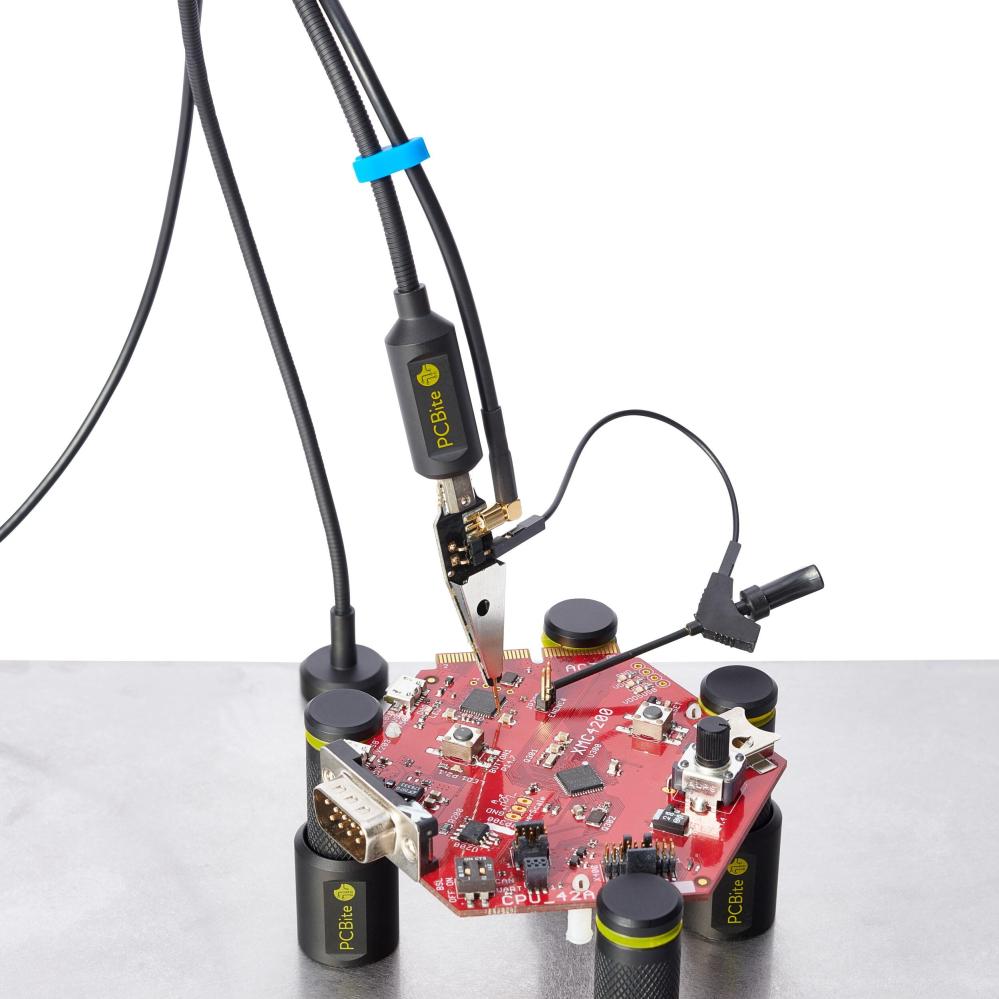

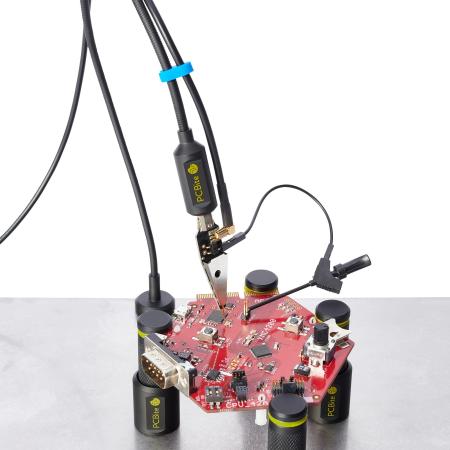

No more soldering wires to connect your probe or complicated tools to setup, just positioning the probe needle on any test point or component in the signal path and release.

Saves time and frustration during development, verification and repairs.

The minimalist design and the spring loaded test needle makes it possible to simultaneously measure on fine pitch components and nearby signals.

The ground probe connection has a detachable quality hook and the cable fits directly on a 2.54mm (0.100”) pitch pin header. If you need a even more flexible and handsfree ground(or other reference) connection then our passive 1:1 readout probe SP10(sold separately) is a great companion. Just connect the included short wire between the SP100 and SP10 pinheaders!

The SP100 comes with a powerful magnet in the base, as for all PCBite probes and holders which makes the probe easy to place and reposition.

SP100 probes are also sold separately if you have more channels on your oscilloscope.


Mer information

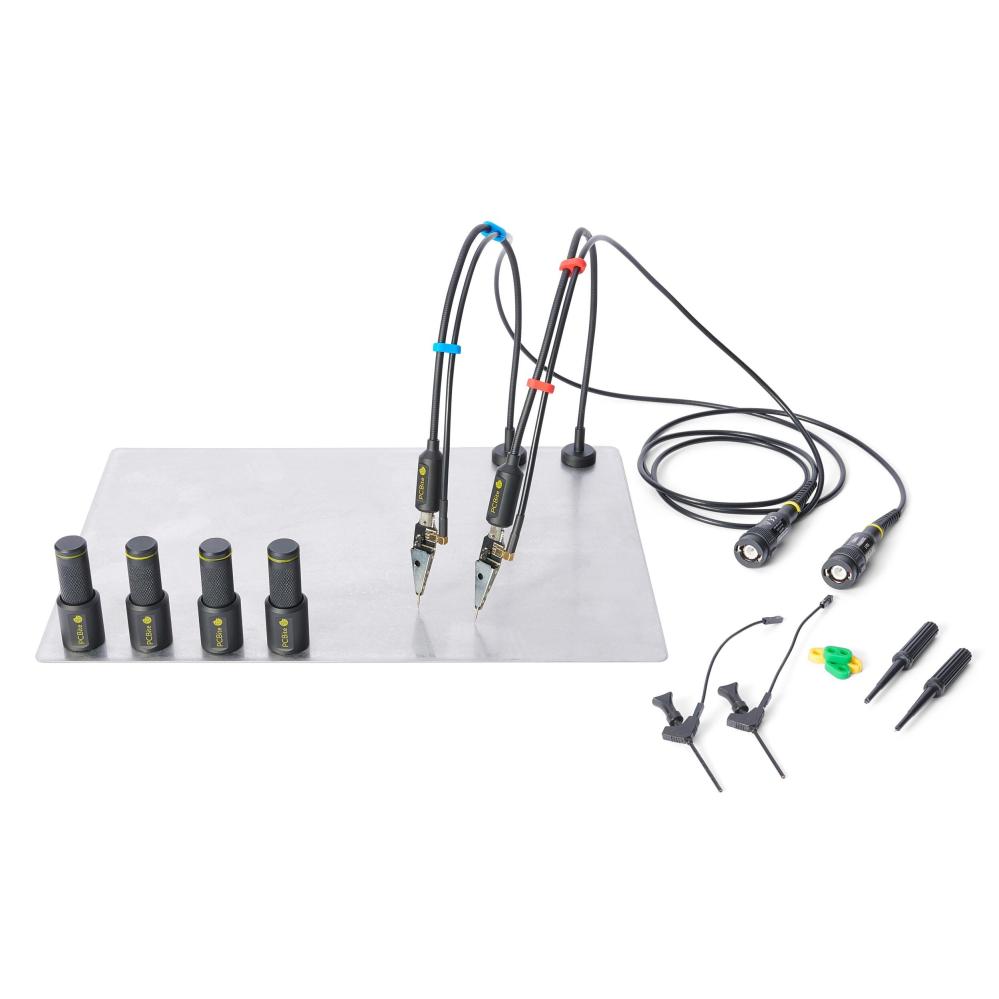

INCLUDES:
4× PCBite holder
1x Large Base plate (A4)
2x SP100 - 100 Mhz handsfree oscilloscope probes (article 4013)
1x Set of yellow insulation washers
1x Micro fiber cloth
