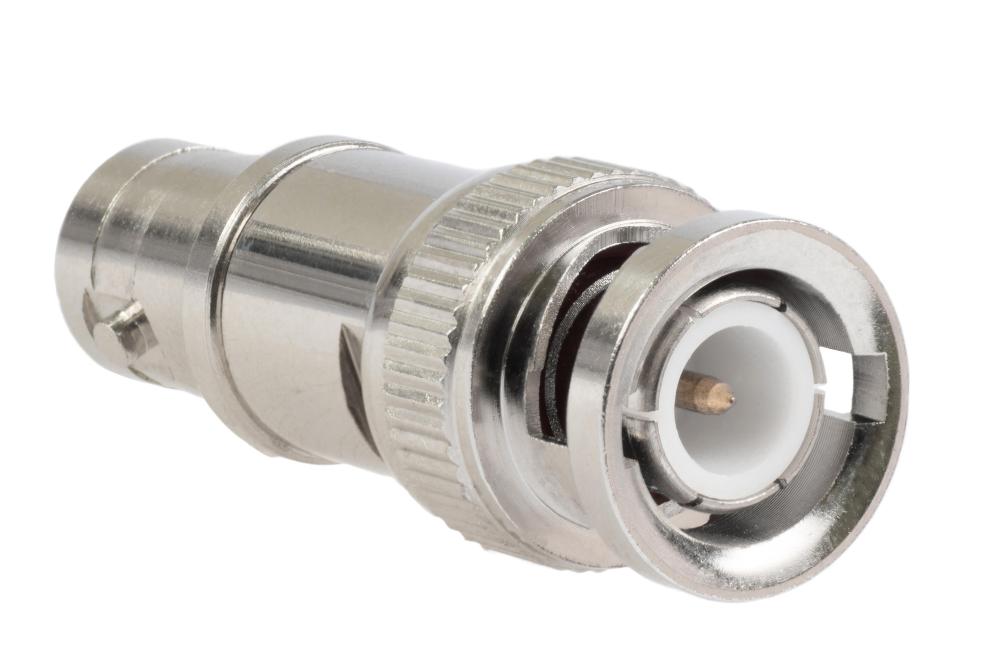

Tekbox TBTERFT-0.5W-1GHz-BNCF/BNCM RF-terminering
50 Ω genomgångstermination med BNC-kontakt (hona/hane), 0,5 W effekt, frekvensområde DC – 1 GHz, VSWR < 1.2.
| Model | TBTER-25W-3GHz-50-N | TBTER-10W-6GHz-50-N | TBTER-2W-6GHz-50-N | TBTER-2W-3GHz-50-BNCM | TBTER-0.5W-2GHz-BNCM | TBTERFT-0.5W-1GHz-BNCF/BNCM |
| Type | 50Ω load | 50Ω load | 50Ω load | 50Ω load | 50Ω load | 50Ω feed-through termination |
| RF Connector | N-male | N-male | N-male | BNC-male | BNC-male | BNC-male / BNC-female |
| Frequency range | DC – 3 GHz | DC – 6 GHz | DC – 6 GHz | DC – 3 GHz | DC – 2 GHz | DC – 1 GHz |
| VSWR | < 1.2 | < 1.2 | < 1.2 | < 1.2 | < 1.2 | < 1.2 |
| Power Rating | 25 W | 10 W | 2 W | 2 W | 0.5 W | 0.5 W |
Produktinformation
-
Art. nr
TBTERFT-0.5W-1GHz-BNCF/BNCM
