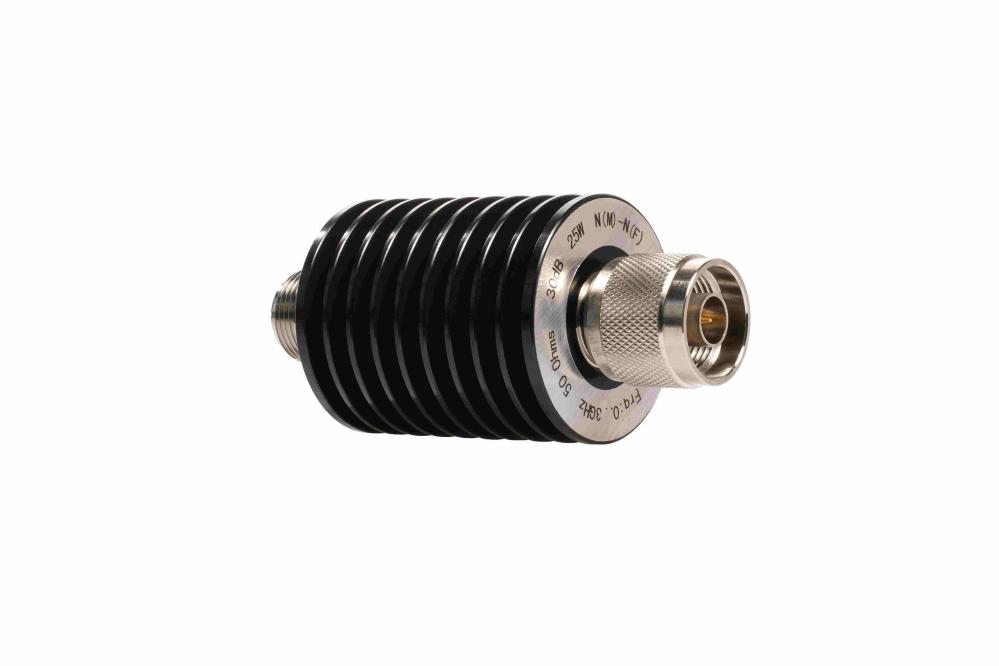

N-hane/N-hona för laboratorie- och testapplikationer, DC–3 GHz frekvensområde, 25 W effektklass och 3 dB dämpning.
| Model | TBATT-N-10-3
TBATT-N-10-6 TBATT-N-10-10 TBATT-N-10-20 TBATT-N-10-30 | TBATT-N-25-3
TBATT-N-25-6 TBATT-N-25-10 TBATT-N-25-20 TBATT-N-25-30 | TBATT-N-50-3
TBATT-N-50-6 TBATT-N-50-10 TBATT-N-50-20 TBATT-N-50-30 | TBATT-N-100-3
TBATT-N-100-6 TBATT-N-100-10 TBATT-N-100-20 TBATT-N-100-30 |
| RF Connector | N-male / N-female | N-male / N-female | N-male / N-female | N-male / N-female |
| Frequency Range | DC – 3 GHz | DC – 3 GHz | DC – 3 GHz | DC – 3 GHz |
| VSWR | < 1.3 | |||
| Tolerance | 3, 6, 10dB: ± 0.5 dB
20 dB: ± 0.8 dB 30 dB: ± 1 dB | 3, 6, 10dB: ± 0.5 dB
20 dB: ± 0.8 dB 30 dB: ± 1 dB | 3, 6, 10dB: ± 0.5 dB
20 dB: ± 0.8 dB 30 dB: ± 1 dB | 3, 6, 10dB: ± 0.5 dB
20 dB: ± 0.8 dB 30 dB: ± 1 dB |
| Power rating | 10 W | 25 W | 50 W | 100 W |
| Attenuation | 3 dB, 6 dB, 10 dB, 20 dB, 30dB | 3 dB, 6 dB, 10 dB, 20 dB, 30dB | 3 dB, 6 dB, 10 dB, 20 dB, 30dB | 3 dB, 6 dB, 10 dB, 20 dB, 30dB |
