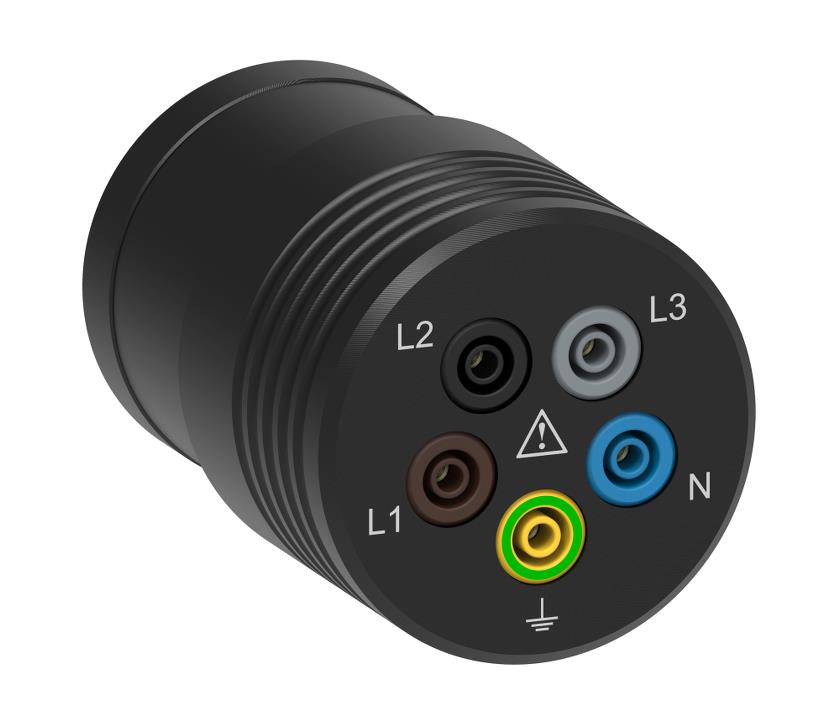

PJP ADAFM-TETRA32 Plug-In Adapter

Adapter for measurements in 32 A CEE sockets with five 4 mm safety sockets for L1, L2, L3, N and PE. 415 V AC CAT IV, 32 A.

2 370 SEK

  • Connection: CEE 32 A, 6h, male
  • Sockets: 5 × 4 mm safety banana sockets
  • Rated voltage: 415 V AC CAT IV
  • Rated current: 32 A
  • Contact parts: Brass
  • Insulating material: POM


The adapter is designed for safe and convenient connection of test instruments to 5-pole CEE sockets. It can be used for applications such as installation testing, functional testing, phase sequence testing and insulation testing.
The five 4 mm safety banana sockets provide separate access to L1, L2, L3, N and PE. This allows test leads to be connected directly to each conductor without having to hold test probes against the contacts of a CEE socket.
The adapter is rated for 415 V AC CAT IV and 32 A.

Product information

  • Art.no

    71692
