The integrated R&S®RTC-B6 waveform and pattern generator up to 50 Mbit/s is useful for educational purposes and for implementing prototype hardware.

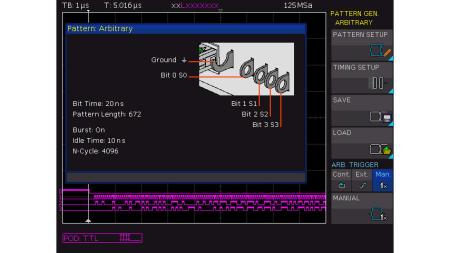

In addition to common sine, square/pulse, ramp and noise waveforms, it outputs 4-bit patterns.
Waveforms and patterns can be imported as CSV files or copied from oscilloscope waveforms.
You can preview signals before playing them back to quickly check signal correctness.
Predefined patterns for e.g. I2C, SPI, UART and CAN/LIN are provided
