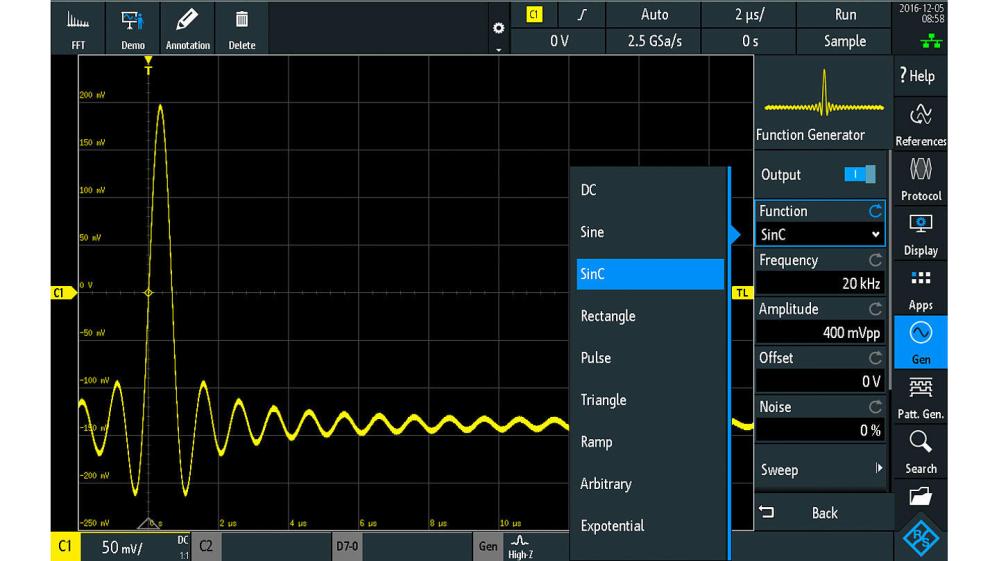

The integrated R&S®RTB-B6 waveform and pattern generator up to 50 Mbit/s is useful for educational purposes and for implementing prototype hardware.
Apart from the common sine, square/pulse, ramp and noise waveforms, it outputs arbitrary waveforms and 4-bit signal patterns.
Waveforms and patterns can be imported as CSV files or copied from oscilloscope waveforms.
Before playing signals back, the user can preview them to quickly check signal correctness.
Predefined patterns for e.g. I2C, SPI, UART and CAN/LIN can be used.
