Rohde & Schwarz B1 Mixed signal, max. 300 MHz, for R&S®RTC1002 oscilloscope 1GSa/s (software license)

Art. nr: Rohde & Schwarz RTC-B1 MSO option
5 650 kr

Antal




Produktbeskrivning

  • Easy upgrade of any Rohde & Schwarz oscilloscope to an MSO
  • Precision measurement: up to 5 Gsample/s sampling rate
  • Deep memory: acquire long signal sequences
  • Comprehensive processing and analysis functions

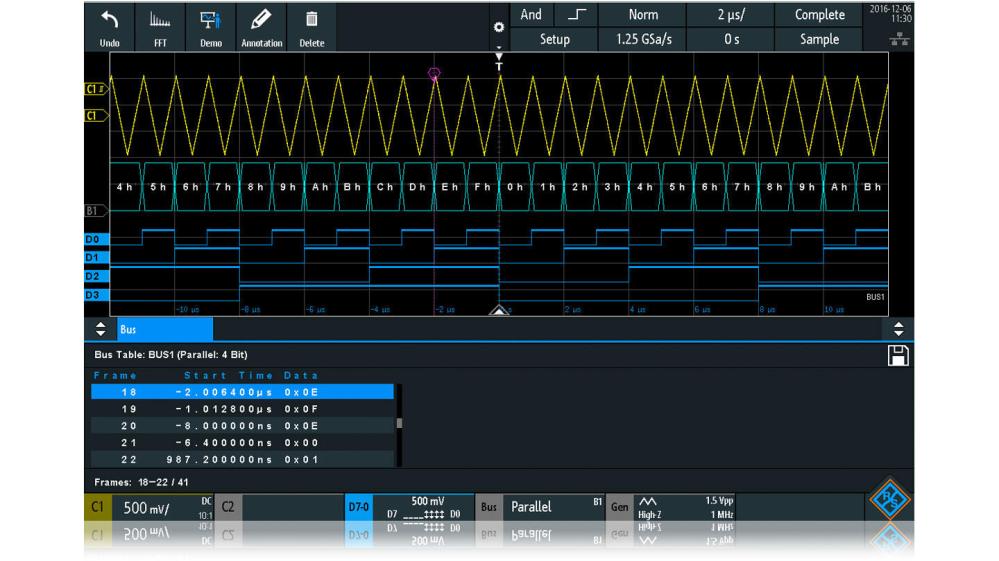

  • Analysis of serial protocols, even with digital channels

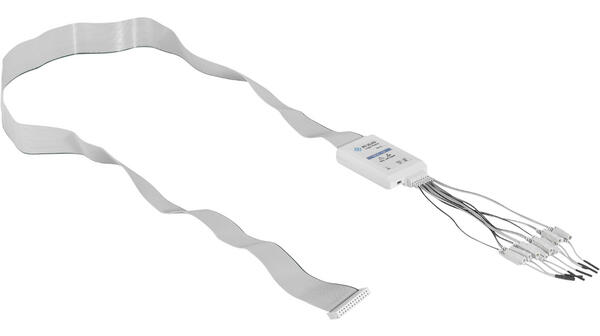

The R&S®B1 MSO options turns Rohde & Schwarz oscilloscopes into fast, precise and easy-to-use mixed signal oscilloscopes (MSO) with 8 additional digital channels.



The oscilloscope captures and analyzes signals
from analog and digital components in an embedded design - synchronouslyand time-correlated to each other.

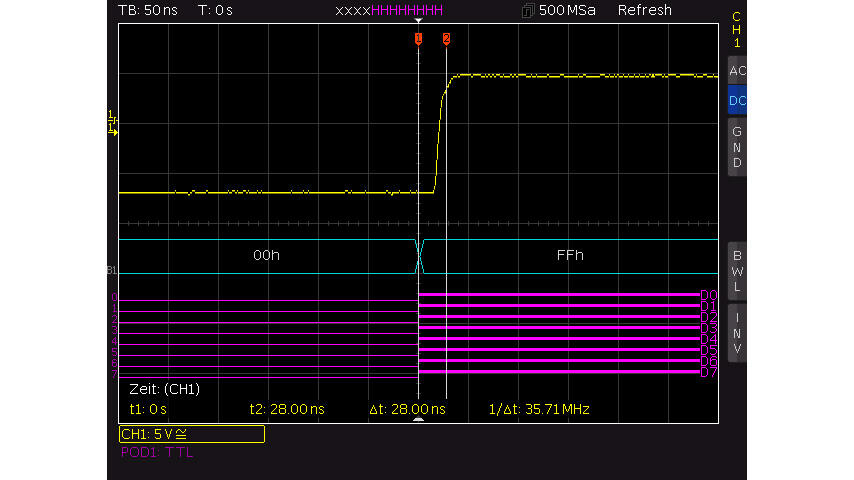

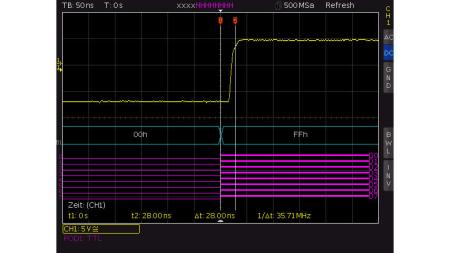

For example, the delay between the
input and output of an A/D converter can be conveniently determined using the
cursor measurements..



Mixed signal oscilloscopes are hybrid test instruments that combine the measurement capabilities of digital oscilloscopes with the analysis capabilities of logic analyzers.



Number of channels: 8

Bandwidth: 300 MHz

Max sampling rate: 1 Gsample/s.

Max memory depth: 1 Msample
