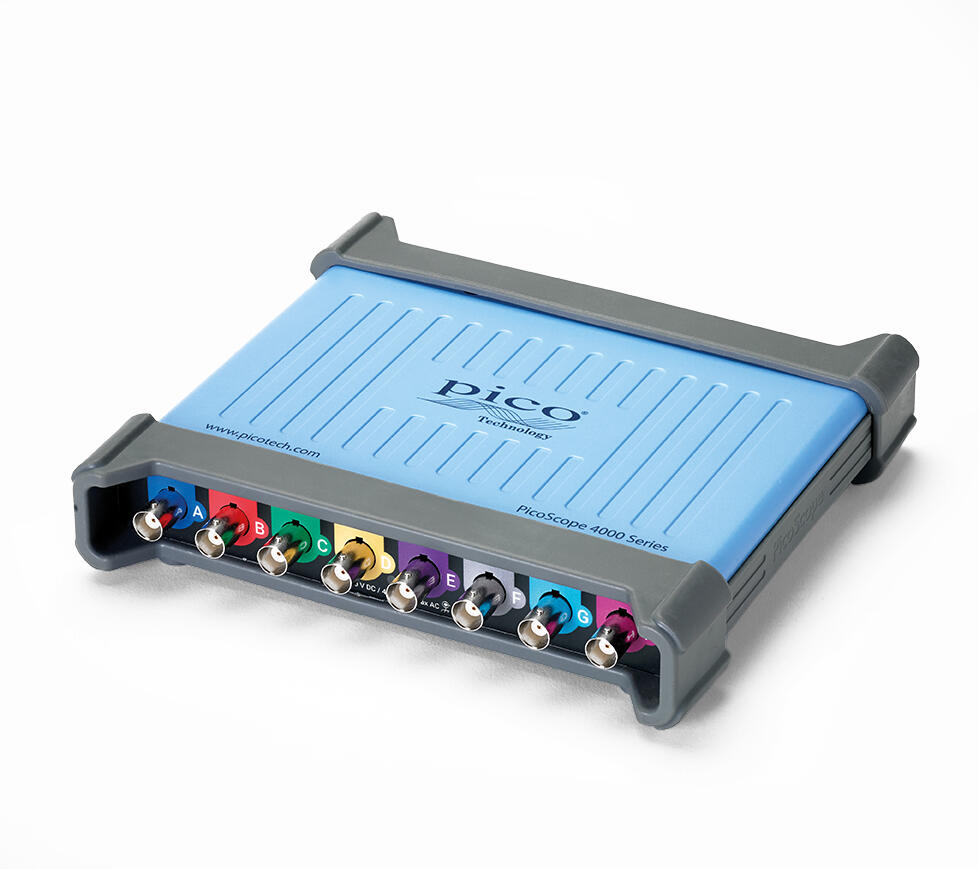

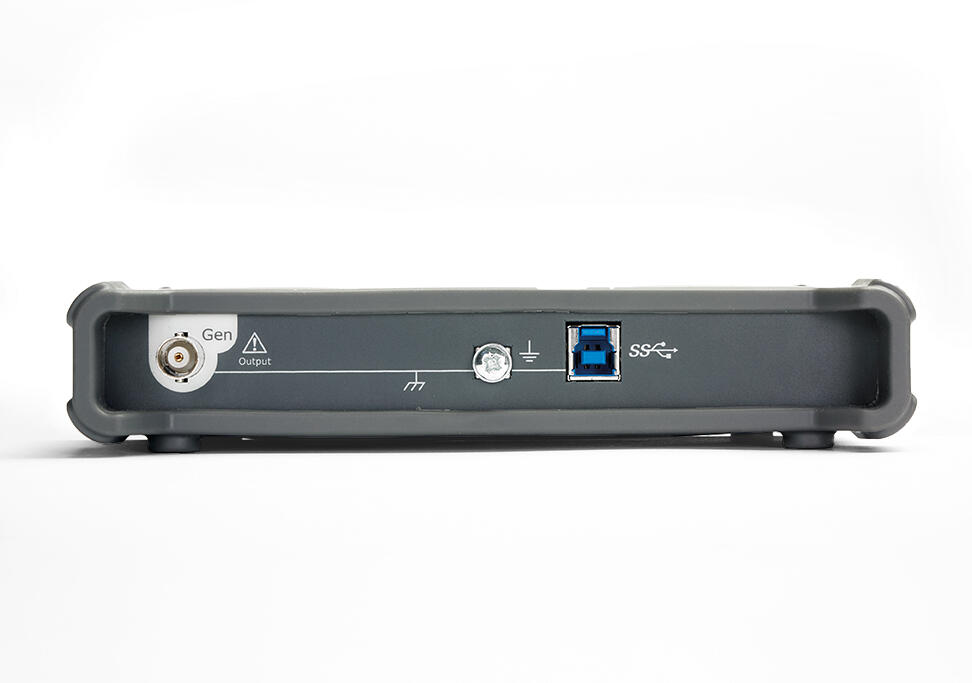

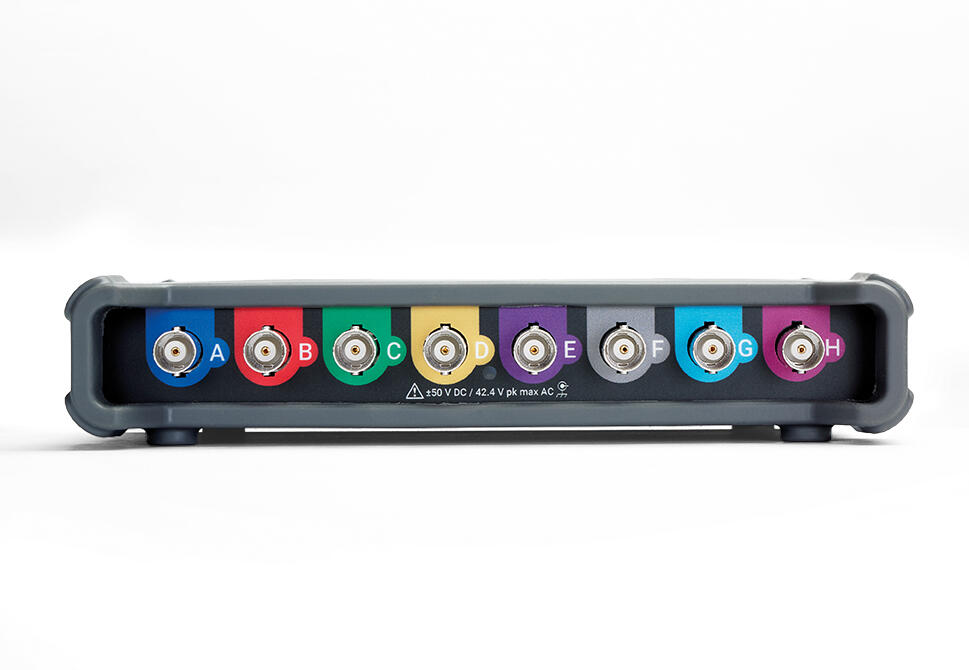

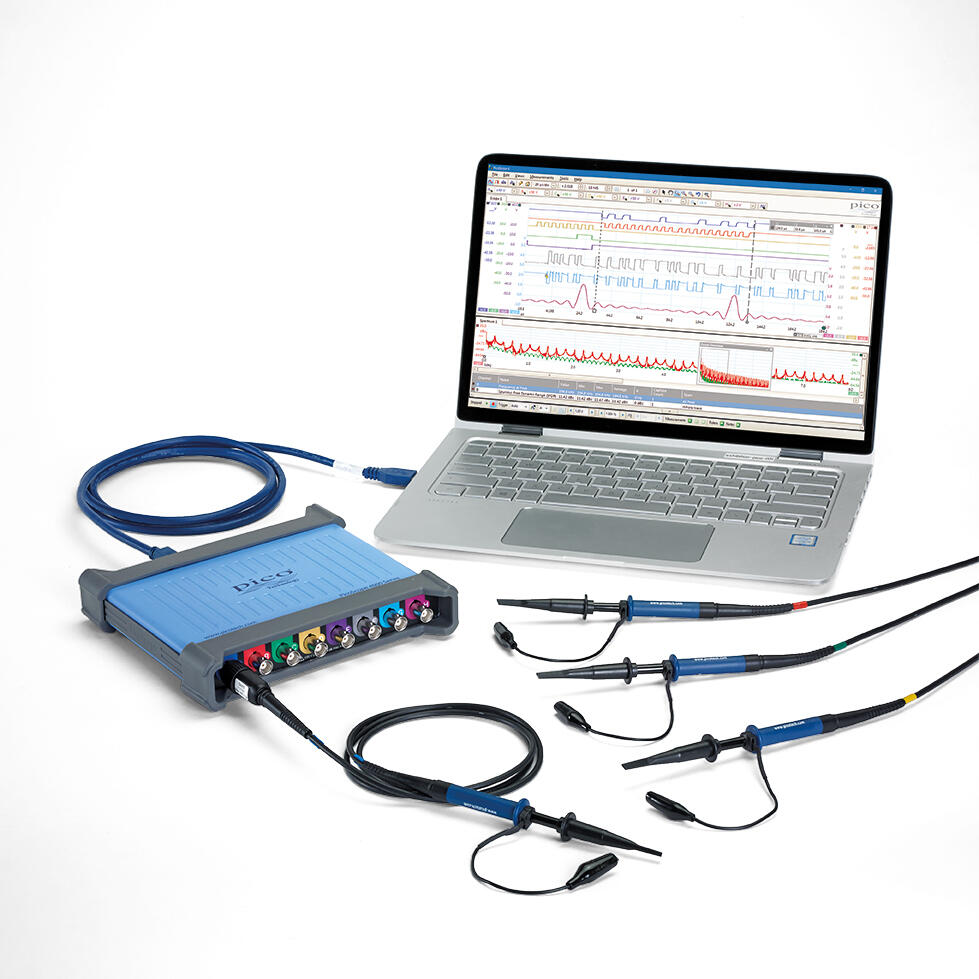

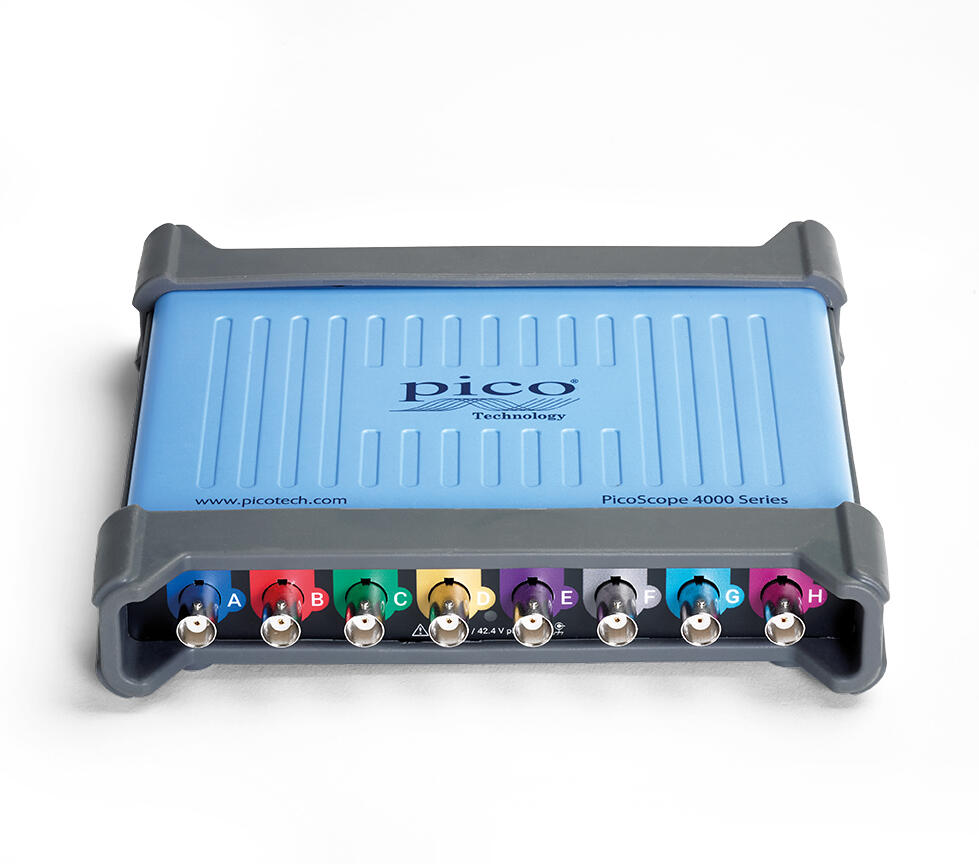

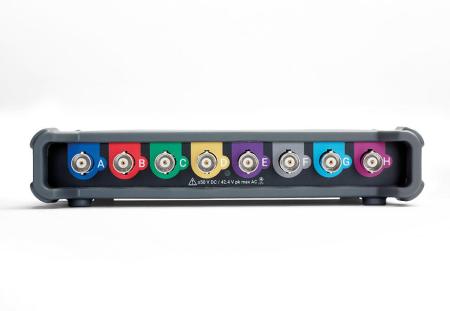

PicoScope 4824A, 8-kanaler, 12 bit, 20 MHz bandbredd, stort minnesdjup, Generator

Art. nr: Picoscope 4824A
22 690 kr

Antal




Produktbeskrivning

  • 8 channels
  • 20 MHz bandwidth
  • 12-bit resolution
  • 256 MS capture memory
  • 80 MS/s sampling rate
  • 1% DC accuracy
  • ±10 mV to ±50 V input ranges
  • 10 000 segment waveform buffer
  • 80 MS/s AWG update rate
  • 14-bit resolution AWG
  • Low-cost and portable
  • SuperSpeed USB 3.0 interface
  • Split-screen waveform viewing
  • Up to 70 dB SFDR
  • Advanced digital triggering
  • Serial bus decoding
  • PicoScope and PicoSDK® software included

The PicoScope 4000A Series of PC oscilloscopes is a second-generation upgrade and expansion of our high-resolution, deep-memory product portfolio.



With 2-, 4- and 8-channel models available, the PicoScope 4000A Series boasts 12-bit hardware resolution (to 16 bits with Resolution Enhancement), 256 MS deep capture memory, 20 MHz bandwidth with 80 MS/s sampling speed, up to 70 dB SFDR and a built-in 14-bit triggerable signal generator and 80 MS/s AWG. A SuperSpeed USB 3.0 interface powers the instrument and delivers up to 160 MS/s communications to the host PC. All models run with the popular PicoScope 6 user interface and benefit from the free PicoSDK software development kit, which gives users direct programming control of the hardware for custom applications. The scopes also work with PicoLog 6 data logging software for lower-speed long-duration captures.




Relaterade

Pico PP969 Hård skyddsväska - Medium
70939
Pico PP969 Hård skyddsväska - Medium
Hard carry case - medium The PP969 is a hard carry case with...

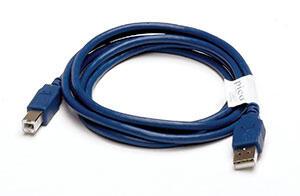

Pico TA207 - USB 2.0 kabel, 1.2 m
Pico TA207
Pico TA207 - USB 2.0 kabel, 1.2 m
The TA207 is a high-quality 1.2 metre USB 2.0 cable, designe...
PicoTA268 USB 2.0 kabel, 0.5 m
PicoTA268
PicoTA268 USB 2.0 kabel, 0.5 m
The TA268 is a high-quality 0.5 metre USB 2.0 cable, designe...
Pico MI121 USB 2.0 kabel, 4.5 m
Pico MI121
Pico MI121 USB 2.0 kabel, 4.5 m
The MI121 is a high-quality, extra long 4.5 metre USB 2.0 ca...

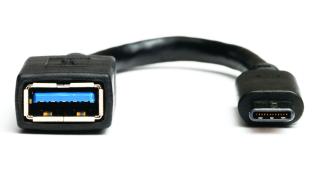

Pico TA285 USB Type-C to Standard-A (f) adaptor, 0.14 m
