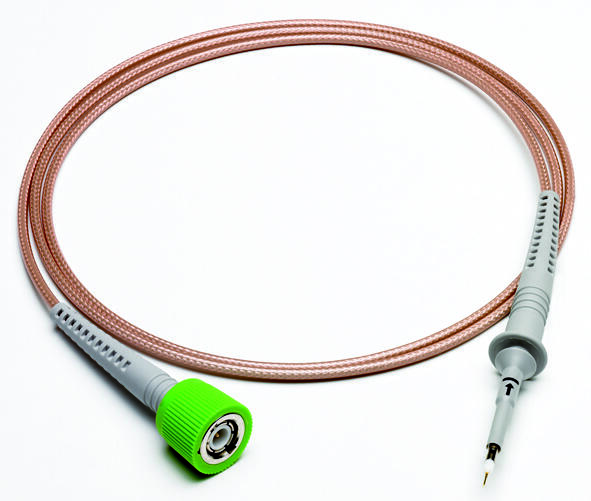

Pico TA062 1.5 GHz låg-impedans passiv oscilloskop prob 10:1 med BNC anslutning
  • Pico TA062 1.5 GHz låg-impedans passiv oscilloskop prob 10:1 med BNC anslutning

Pico TA062 1.5 GHz låg-impedans passiv oscilloskop prob 10:1 med BNC anslutning

Art. nr: Pico TA062
2 990 kr

Antal




Produktbeskrivning

The TA062 is a low-impedance, low-capacitance probe designed for use with oscilloscopes that have 50 Ω input impedance and a BNC input connector.



Features:

  • Narrow 2.5 mm diameter at the probe tip
  • New IC contact system for 0.5 to 1.27 mm pitch
  • Interchangeable spring contact tip
  • Ideal for measurements of SMT components
  • Coaxial design
  • Low input capacitance

TA062 Specifications

Connector type: BNC
Attenuation: 10:1
Input resistance: 500 Ω
Input capacitance: 2 pF
Input coupling of the measuring instrument: 50 Ω
System bandwidth (-3 dB): 1.5 GHz

Risetime (10% - 90%): 240 ps
Rated voltage: 12 V DC inc. AC pk
Cable length: 1.3 m (approx. 4 ft 3 in)
Weight (probe only): 48 g

Operating temperature: 0 to +50 °C
