Pico TA043 Aktiv Differentialprob för oscilloskop 100MHz, 700V, 10:1/100:1
Bilder
  • Pico TA043 Aktiv Differentialprob för oscilloskop 100MHz, 700V, 10:1/100:1

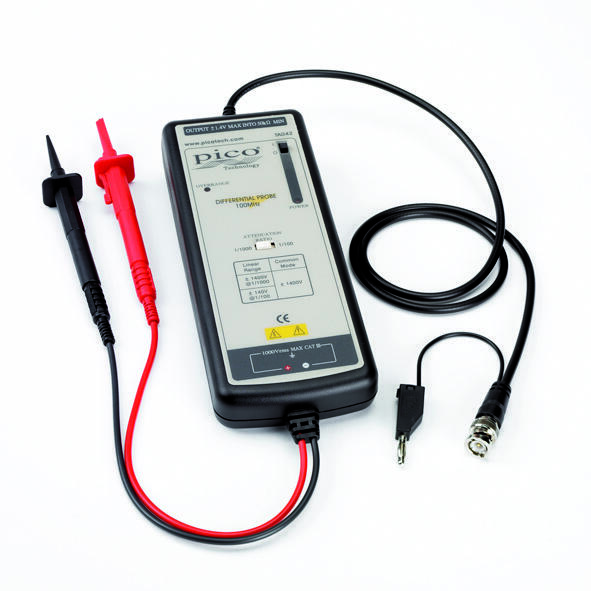

Pico TA043 Aktiv Differentialprob för oscilloskop 100MHz, 700V, 10:1/100:1

Art. nr: 70948
8 510 kr

Antal




Produktbeskrivning

TA043 är en aktiv differentialprob lämplig för applikationer för hög common-mode spänningsmätning upp till ±700 V (DC + topp AC). Den kan användas med signalhastigheter på upp till 100 MHz.

Denna differentialprob utökar funktionaliteten hos standardingångsoscilloskop med enkel ände för att möjliggöra en säker och exakt metod för att göra differentialmätningar med hög spänning. Tillämpningar inkluderar att göra säkra mätningar i kraftkretsapplikationer och inhämtning av låghastighetsbalanserade differentialsignaler som finns i seriella kommunikationsbussar.


Mer information

TA043 differential probe specifications
Bandwidth DC to 100 MHz (–3 dB)
Attenuation ratio 10:1 / 100:1
Accuracy ±2%
Input impedance 4 MΩ || 7 pF each side to ground

Input voltage
Differential range (10:1)
Differential range (100:1) ±70 V (DC + peak AC) or 70 V RMS
±700 V (DC + peak AC) or 500 V RMS
Common mode range ±700 V (DC + peak AC) or 500 V RMS
(10:1 and 100:1)
Absolute max. voltage
(differential or common-mode) 1000 V RMS CAT III (10:1 and 100:1)

Output voltage
Swing ±7V into 50 kΩ load
Offset (typical) <±5 mV
Noise (typical) 0.9 mV RMS
Source impedance (typical) 50 Ω
CMRR (typical) 85 dB @ 50 Hz; 55 dB @ 1 MHz
Ambient operating Temperature –10 to 40 ℃
Ambient storage temperature –30 to 70 ℃

Power requirements
Standard 4xAA cells or 6 V DC / 200 mA mains adaptor
or regulated 9 V DC / 120 mA mains adaptor
Length of input leads 30 cm
Length of BNC lead 90 cm
Weight 500 g
Dimension (LxWxH) 202 mm x 83 mm x 38 mm
