Tekbox TBAS1 N RF Attenuator Set

RF attenuator set DC–3 GHz, 2 W with 3, 6, 10 and 20 dB attenuators, VSWR

1 200 SEK

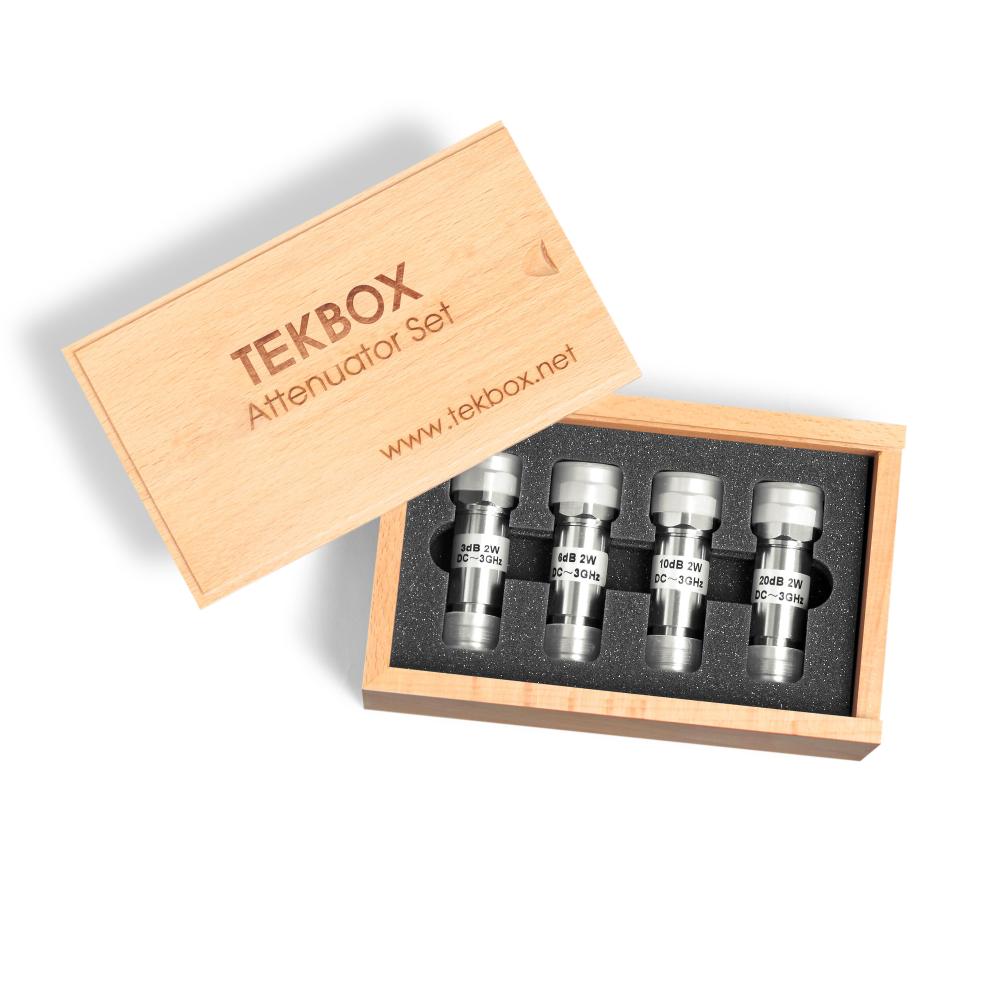

The TBAS1 RF Attenuator Kit includes the following items:
  • 3dB RF attenuator, N connector, 3 GHz, 2W
  • 6dB RF attenuator, N connector, 3 GHz, 2W
  • 10dB RF attenuator, N connector, 3 GHz, 2W
  • 20dB RF attenuator, N connector, 3 GHz, 2W

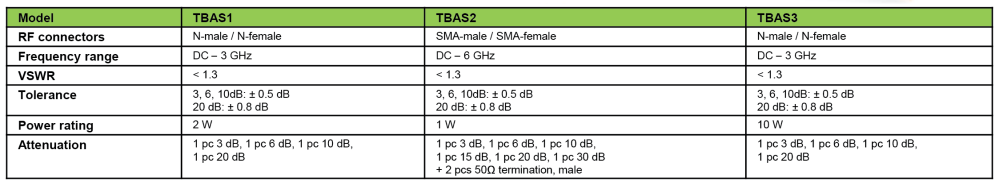

Specifications:
  • Tolerance: 3, 6, 10 dB +/- 0.5 dB
  • 20 dB +/- 0.8 dB
  • Frequency range: DC-3GHz, VSWR < 1.2
  • Power rating: 2W @ -55 to 70°C; up to 125°C with 50% power de-rating
  • Connectors: N-male / N-female; bidirectional
  • Dimensions: 150mm x 95mm x 45mm
  • Weight: 490g

Product information

  • Art.no

    71396
