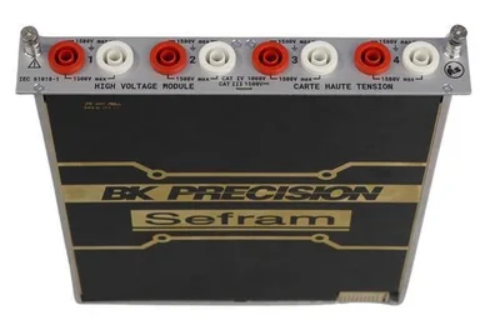

BK Precision D18-HVM4 Ingångsmodul

4-kanalig högeffektsmodul för DAS1800 med isolerade differensingångar upp till ±1500 V DC, 1 MSa/s samplingshastighet och 16-bitars upplösning för högspänningsmätning.

35 070 SEK

High Voltage input module of 4 channel for DAS1800. The D18-HVM4 is the newest module for the DAS1800 High Speed Modular Data Acquisition Recorder. It provides inputs for measuring high voltage signals up to ± 1500 VDC or 1000 Vrms with CAT III 1500 V and CAT IV 1000 V safety ratings.

4 Isolated high voltage input channels
Simultaneous sampling at up to 1 MSa/s
1500 V Maximum voltage
6 kV Withstand voltage for 5 seconds
Differential channels are rated CAT III 1500 V and CAT IV 1000 V
16-bit resolution
Measure voltage, current, frequency, PWM, and true RMS
