- Two/four quadrants: operates as source and sink
- High speed data acquisition (FastLog function)
- Voltage priority and current priority mode
- High-capacitance mode
- Intuitive, price-transparent online product configurator
Their extremely high accuracy and fast load recovery times make R&S®NGU source measure units (SMU) perfect for challenging applications, such as:
- battery and power consumption tests
- supplying wireless devices with power
- simulation of voltage drops
A special ammeter design is used to precisely measure current drains from nA to A in one pass – no need to make multiple measurement sweeps. The short recovery times enable the instruments to handle fast load changes when mobile communications devices switch from sleep mode to transmit mode. Every detail is detected down to 2 μs resolution with high speed data acquisition. R&S®NGU source measure units have two- or four-quadrant architecture to function both as a source and a sink.
Configure your own R&S®NGU SMU with our online configurator tool and benefit from full price transparency, ease of configuration along with fast processing and shipment through an authorized distribution partner of your choice

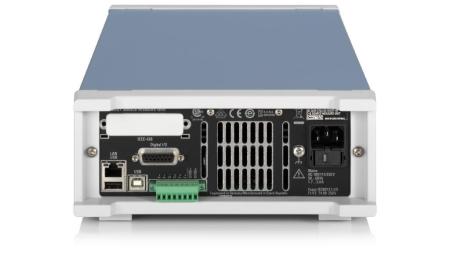

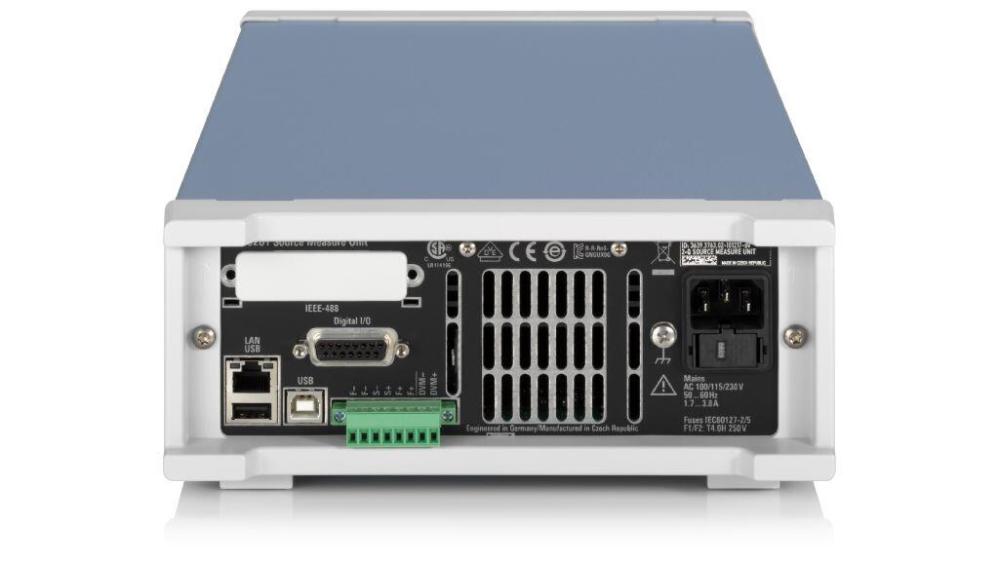

Product bundle description
NGU201COM Complete product bundle description
Contains serialized product+option:

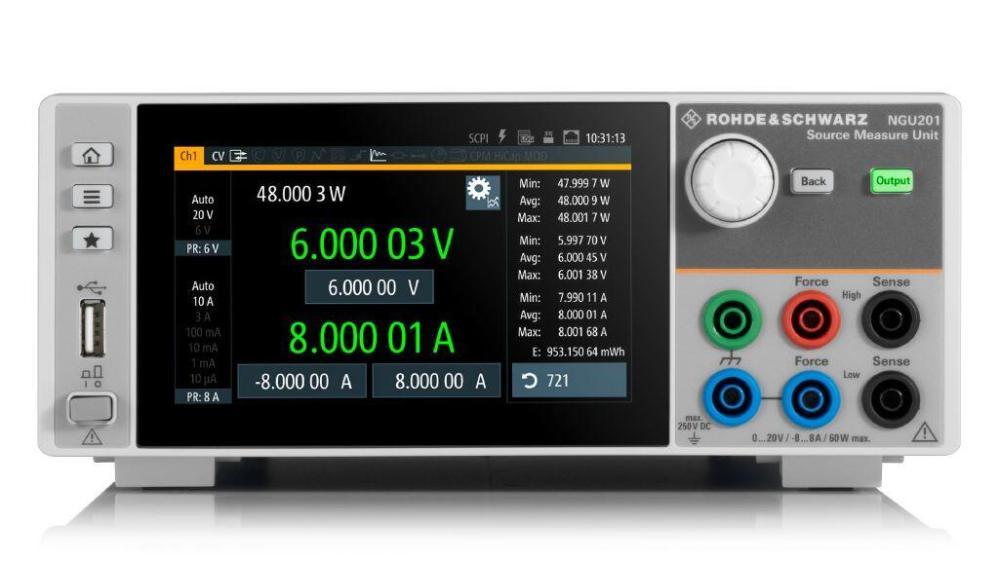

R&S®NGU201 2-Q SOURCE MEASURE UNIT
3639.3763K02
consisting of:
-R&S®NGU201 2-Q SOURCE MEASURE UNIT
-R&S®NGU-K103 DIGITAL TRIGGER I/O
-R&S®NGU-K104 DVM OPTION
-R&S®NGU-K106 BATTERY SIMULATION"
