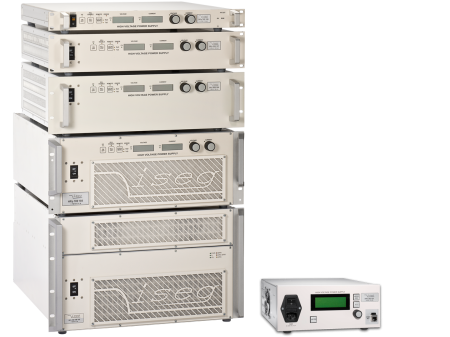

- Three-phase AC supplied HV PS up to 10 kW output power
- High voltages up to 20 kV (1kV, 2kV, 5kV and 10kV also available)
- Extraordinary control characteristics for output voltage and current.
- C-charger (KPS and LPS series) with high repetition accuracy at high charging frequencies
- Resonance mode technique, low EMI
- Very high efficiency, up to 93 %
- Other voltage/current combinations on request
>>Read more at the iseg Website!
Modern resonance mode and circuit technologies which have been used
for this high voltage power supply allow to reach highest efficiencies.
Excellent control capabilities are realized at the same time as well as little
ripple and noise.
This enables these HV power supplies for use in a broad range of applications, e.g. magnetrons, laser, ion implantation, ion pumps, electron guns, capacitor charging, e-beam systems, electron beam processing, etc.
Through customer specified modifications these HV PS are
matched perfectly to existing requirements.
