Time Electronics 8030 Automatic Pressure Calibrator
Bilder

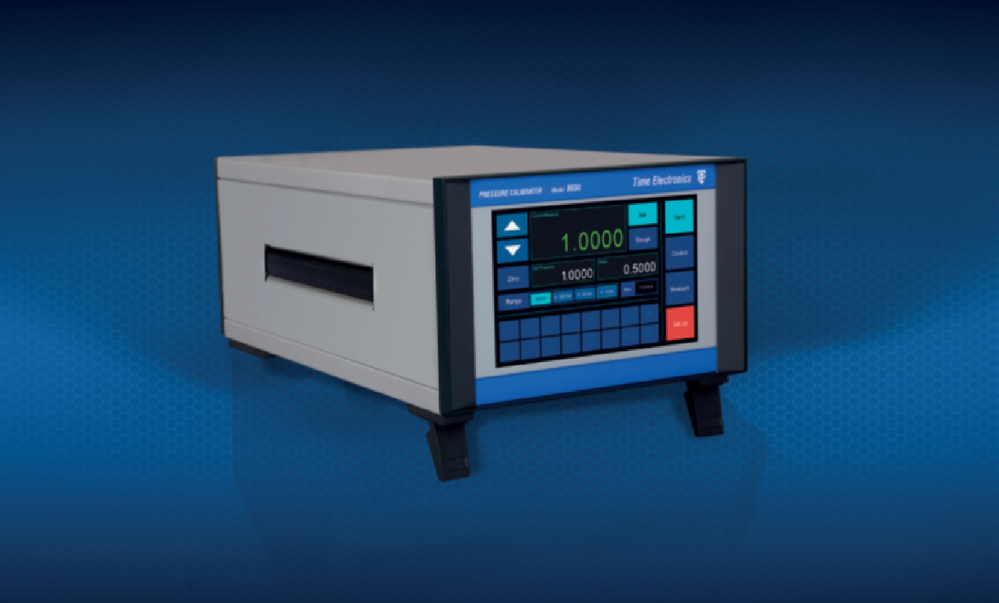

  • Time Electronics 8030 Automatic Pressure Calibrator

Time Electronics 8030 Automatic Pressure Calibrator

Art. nr: Time 8030

Begär offert




Produktbeskrivning

  • Multi-range controller configurable from -1 to 100 bar
  • Configured based on end user requirement
  • Gauge, compound, absolute, differential
  • Up to 3 precision sensors built in
  • Control stability 0.003 % FS (of active sensor)
  • Auto-ranging capabilities
  • Accuracy 0.01 % FS (of active sensor)
  • Barometric reference option
  • Touch screen user interface
  • EasyCal software compatible
  • High range pneumatic & hydraulic versions available

Description
The 8030 is an advanced pressure controller/calibrator suitable for wide workload calibration of pressure devices such as transmitters, sensors and gauges.
The standard unit can be configured for multiple ranges from vacuum to 100 bar (1500 psi), integrating up to three high accuracy reference sensors for maximum workload coverage.
Additionally a barometric reference option enables absolute pressure emulation.
High range versions up to 230 bar (3350 psi) are also available.
Due to its fully configurable design, the 8030 offers the maximum flexibility to end user requirements.
Accuracy is 0.01 % FS for each internal sensor fitted, and control stability is 0.003 % FS of the active sensor range. This provides the necessary coverage for applications
with outstanding accuracy, control and speed for testing applications.


Mer information

The 8030 features a colour touch-screen interface with user-friendly menus designed for simple operation, enabling users to quickly learn and master the operation of the module.
Manually specifying pressure set points is made simple with clearly defined controls on
the display. The 8030 auto-ranging capabilities enable each sensor to be actuated as pressure increase or decreases, providing optimal control and accuracy when performing
applications.
The 8030 is also supplied with a virtual control panel application that provides a simple user interface for remote operation on a laptop or PC. Set and output pressure, and use the primary front panel buttons as per the instrument display.
The 8030 is supplied with a benchtop 2 port manifold and contamination trap as standard.
Options include the 7165 compact compressor pumps that can supply pressure up to 70 bar.
Vacuum pumps, UUT stands, adaptor kits, fittings and hoses are also available to optimise user set ups and applications.
