Time Electronics 5070 calibration instrument suitable for calibrating high current Ductor Testers and Micro-Ohm meters
  • Time Electronics 5070 calibration instrument suitable for calibrating high current Ductor Testers and Micro-Ohm meters

Time Electronics 5070 calibration instrument suitable for calibrating high current Ductor Testers and Micro-Ohm meters

Art. nr: Time Electronics 5070

Begär offert




Produktbeskrivning

  • 5 RANGES - 0.2, 2, 20, 200, 2000 milli-ohms
  • 5 point calibration 0, 25, 50, 75, 100%
  • Gold plated terminals
  • Low thermal emf connection
  • Portable robust carrying case (54x41x21cm)

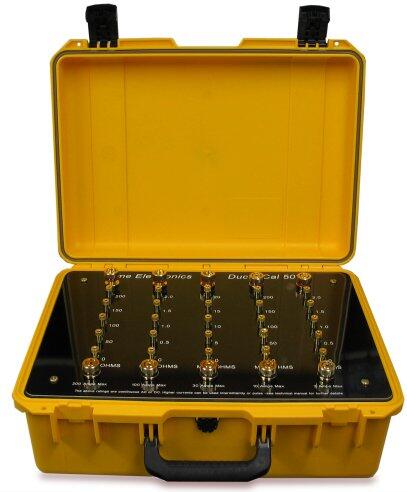

The 5070 DuctorCal is a portable calibration instrument suitable for calibrating high current Ductor Testers and Micro-Ohm meters.



It contains 5 sets of high current rating standard resistors which simulate the resistance being measured.



It has full 4 terminal capabilities with extra large terminals for the current connection.



Gold plated terminals are used throughout to reduce contact resistance and thermal emfs (for dc based instruments).



It has a substantial maximum continuous current rating but is also suitable for much higher transient/pulse test currents.
