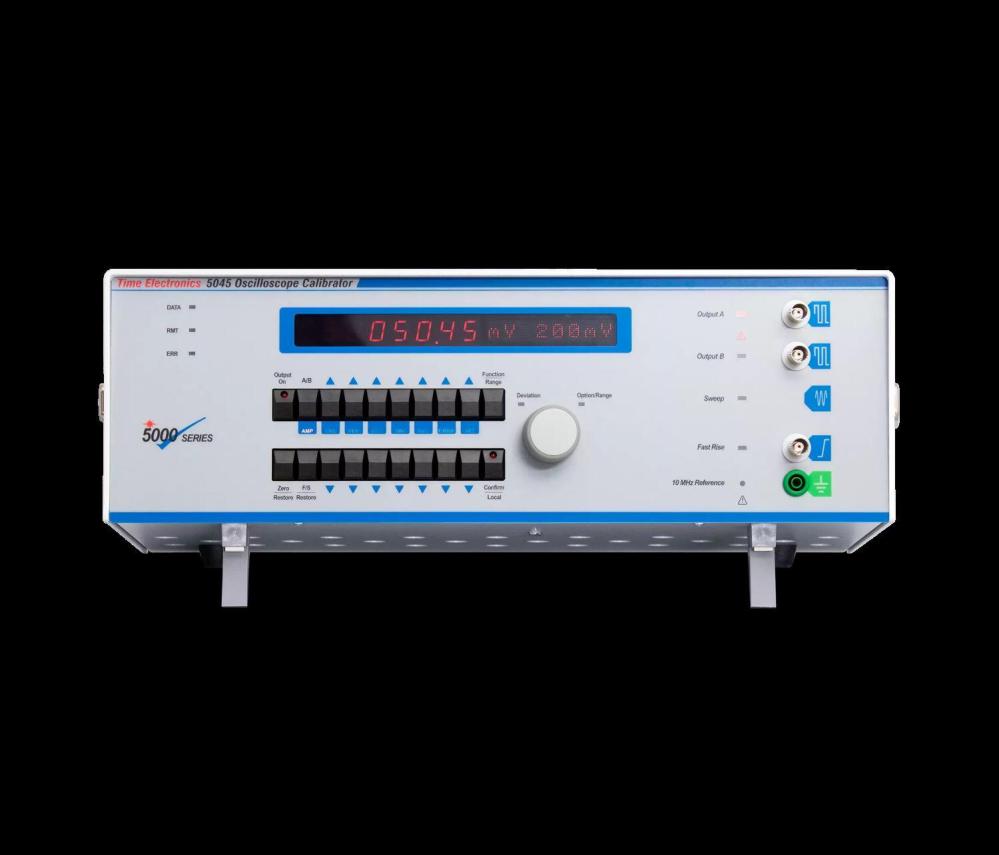

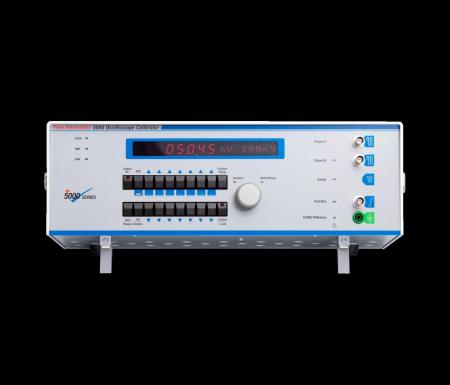

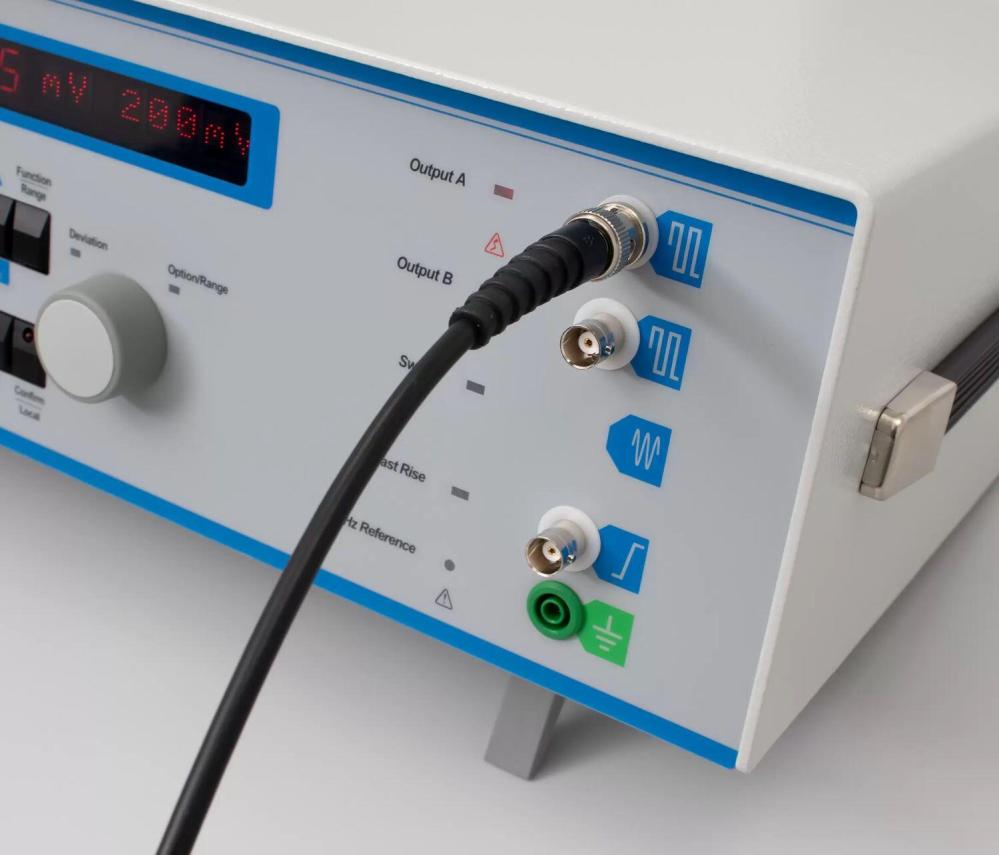

The 5045 is a versatile, high accuracy calibrator capable of calibrating a wide range of oscilloscopes and timer/counters.
It provides a wide range of outputs for amplitude, frequency, period and bandwidth. Amplitude calibration is achieved by a DC signal or 1kHz square-wave, ranging from 1mV to 220V (2V max for 50 ohm loads).
Deviation up to ±9.99% allows fine adjustment of amplitude and direct read-out of error.
Accurate frequencies are generated from a temperature controlled quartz crystal oscillator.
Timing accuracy of 0.1ppm is suitable for most oscilloscopes and timer counters.
A precise square-wave output provides a fast rise time of less than 300ps, which allows bandwidth testing up to 600MHz.
