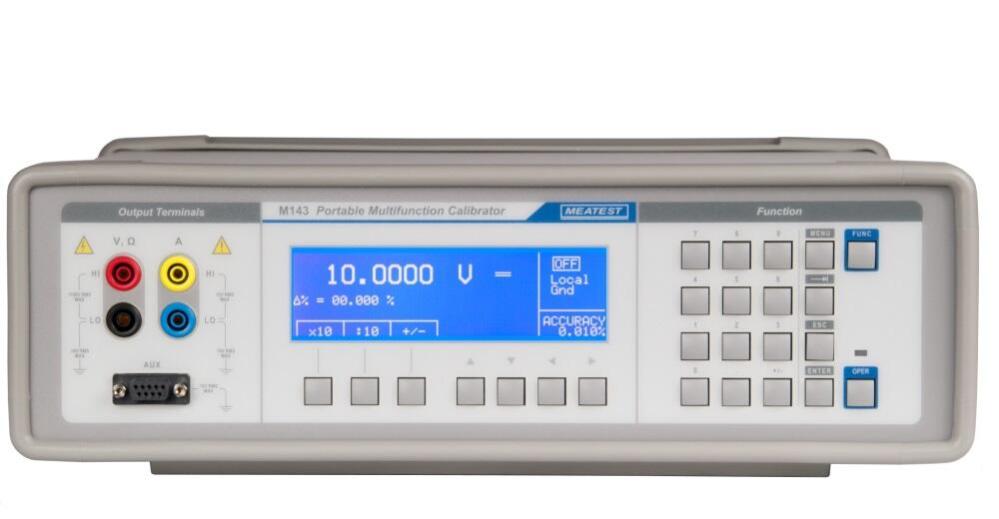

Meatest M143 Portabel Multifunktionskalibrator, 1000V, 20A AC/DC
Bilder
  • Meatest M143 Portabel Multifunktionskalibrator, 1000V, 20A AC/DC

Meatest M143 Portabel Multifunktionskalibrator, 1000V, 20A AC/DC

Art. nr: Meatest M143

Begär offert




Produktbeskrivning

  • Wide voltage range from 0 to 1000 V DC/AC with accuracy 0.007 %
  • Extended current range from 0 to 20 A DC/AC with accuracy 0.02 %
  • Extended current range to 1000 A using Meatest Option 140-50 Current coil for calibration of clamp ammeters
  • Sinusoidal & Non-sinusoidal waveforms
  • Fix standard resistors 10 Ω to 100 MΩ in decimal values with calibration accuracy 0.02 %
  • Thermocouple temperature sensor simulation R, S, B, J, T, E, K, N in range from 250 °C to 1850 °C
  • Cold junction automatic compensation using external Pt1000 sensor
  • RTD temperature sensor simulator as option
  • Interface RS 232, IEEE488 (optionally)
  • Small dimensions, overall weight 9 kg

The Meatest M143 is a 65 ppm AC/DC multifunction calibrator with extended voltage range 0 to 1000 V, current range 0 to 20 A and other basic functions within ultra portable, 9 kg body.

Dokumentation

pdf
Ladda ner datablad >>
pdf
Ladda ner manual >>



Mer information

Meatest has great tradition in making calibration and measurement equipment with lasting reliability, user-friendliness and high performance at the very top of its priorities.



Instrumentcenter AB  has long experience of calibration och measurement equipment which makes the combination of these two companies an ideal and a safe choice for you.
