Time Electronics 5077 Multifunction Power Calibrator
Bilder

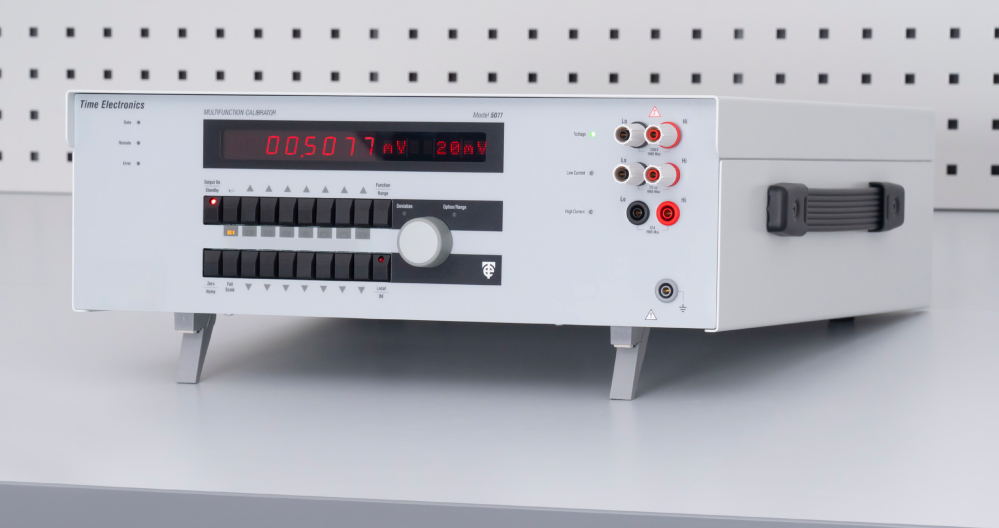

  • Time Electronics 5077 Multifunction Power Calibrator

Time Electronics 5077 Multifunction Power Calibrator

Art. nr: Time 5077

Begär offert




Produktbeskrivning

The 5077 Series 2 model is a multifunction calibrator for sourcing AC/DC voltage and current, and single-phase power. It can be used as a workload calibrator for verification of electrical measurement devices, or as a programmable source in an automated test rig for meter testing. The series 2 model offers the same coverage as it's predecessor with additional ranges, front panel operation, and independent voltage and current functions. This added functionality increases the workload capabilities, whilst maintaining performance for dedicated testing of single-phase watt-meters, power meters, and kW-Hr meters

For power the 5077 voltage range is 2 mV to 1050 V, with current from 2 mA to 22 A. Frequency is adjustable from 40 to 500 Hz, and phase ± 90° in 0.1° steps. Alternatively power factor (PF) can be set in steps of 0.01. The output can be displayed as VA or Watts. The wide current and voltage ranges enable verification of power meters on either the primary side of the of the CT / VT or directly connected to the meter (secondary side).

The standard maximum AC current output (22 A) can be extended to 100 A by using an optional 100 A current transformer (model 9790). This extends the maximum power to 0.1 MW/MVA. A single and 50-turn current clamp adaptor (model 9780) is available for clamp sensor and meter calibration up to 1000 A. The 5077 features turn coil ranges for DC and AC current, designed for use with this adaptor. Further options include test lead sets, carry case options, and calibration software.


Mer information

  • 0 to 1050 V AC/DC voltage
  • 0 to 22 A AC/DC current
  • Single-phase power simulation
  • Up to 23 kVA or 23 kW
  • Phase angle ± 90.0°
  • Power factor 0.00 to 1.00
  • 40 to 500 Hz adjustable frequency
  • 100 A AC current transformer option
  • Single/50-turn current clamp adaptor option
  • Operation via EasyCal or virtual control software
