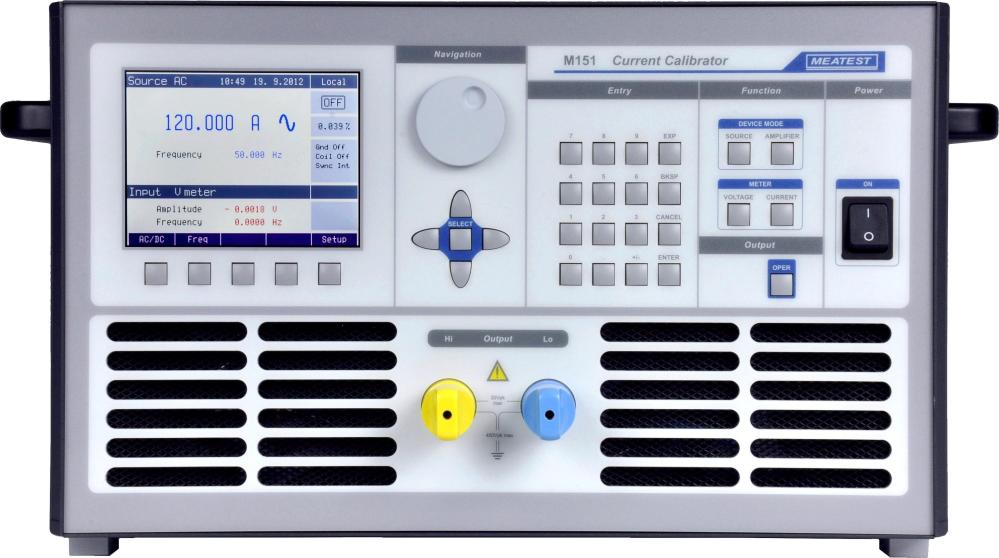

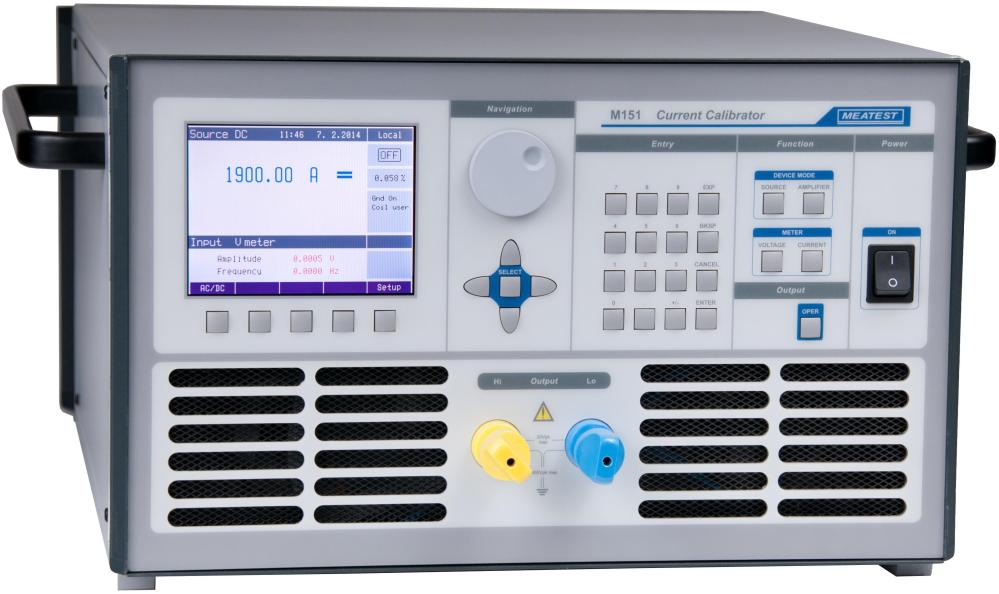

Meatest M151 Strömkalibrator
Högströmskälla för AC/DC upp till 120 A med fas- och frekvenssynkronisering, inbyggd processmultimeter samt möjlighet att utöka strömområden för andra kalibratorer.
Begär offert
- Current 8 mA ... 120 A(AC/DC)
- Frequency 15 Hz ... 1 kHz
- Best accuracy 0.035 %
- Simulated current and transconductance amplifier
- Built-in process multimeter
- Output capability 8 Vpk
- RS232, IEEE488 (SCPI)
The M151 is a stable high current calibrator up to 120 A. Basic accuracy is 0.035 %.
The instrument can be controlled via RS232 or GPIB interface.
The Calibrator can work in a simulated amplifier mode to increase current ranges of any multifunction calibrator.
It is suitable for power meter's calibration because M151 can be synchronized with the input signal not only in amplitude but also in frequency and phase.
Current terminals are isolated up to 450 Vpk against
case (protective earth).
M151 is a sophisticated instrument with its own recalibration procedure. The procedure enables to adjust any deviation directly from the front panel.
Calibrator is designed for checking parameters of amp meters.

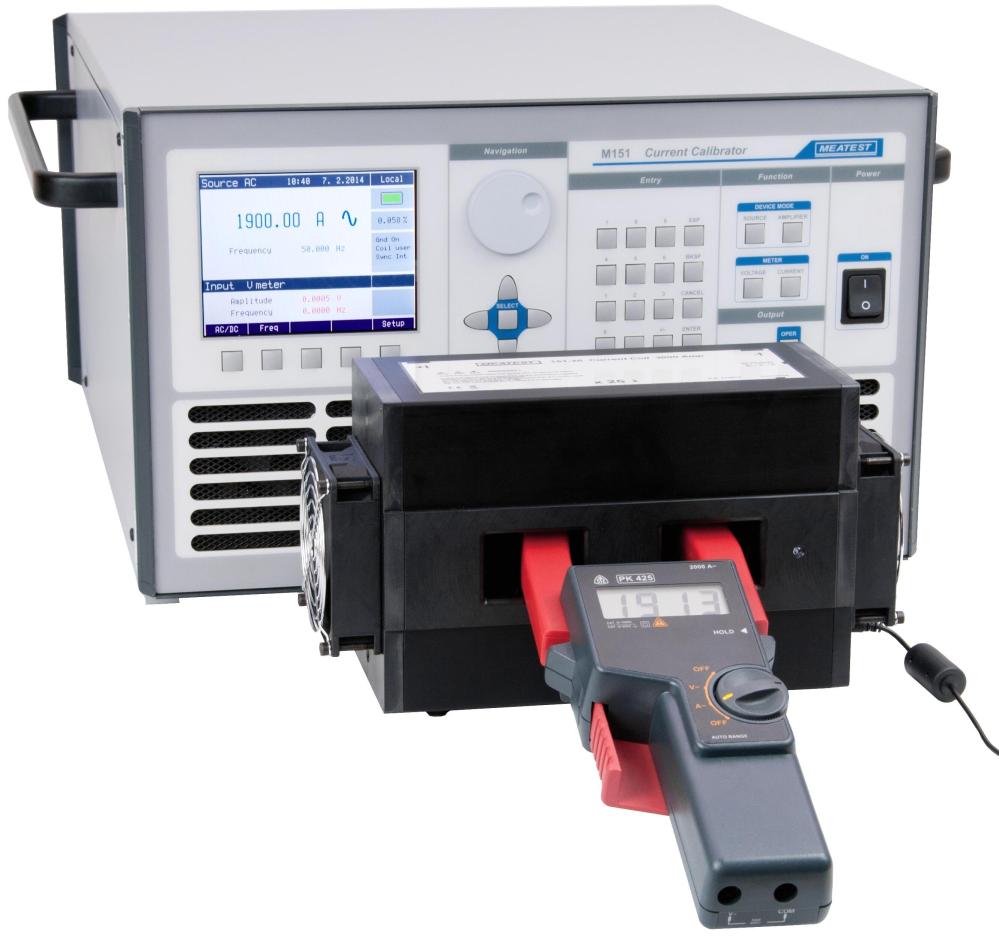

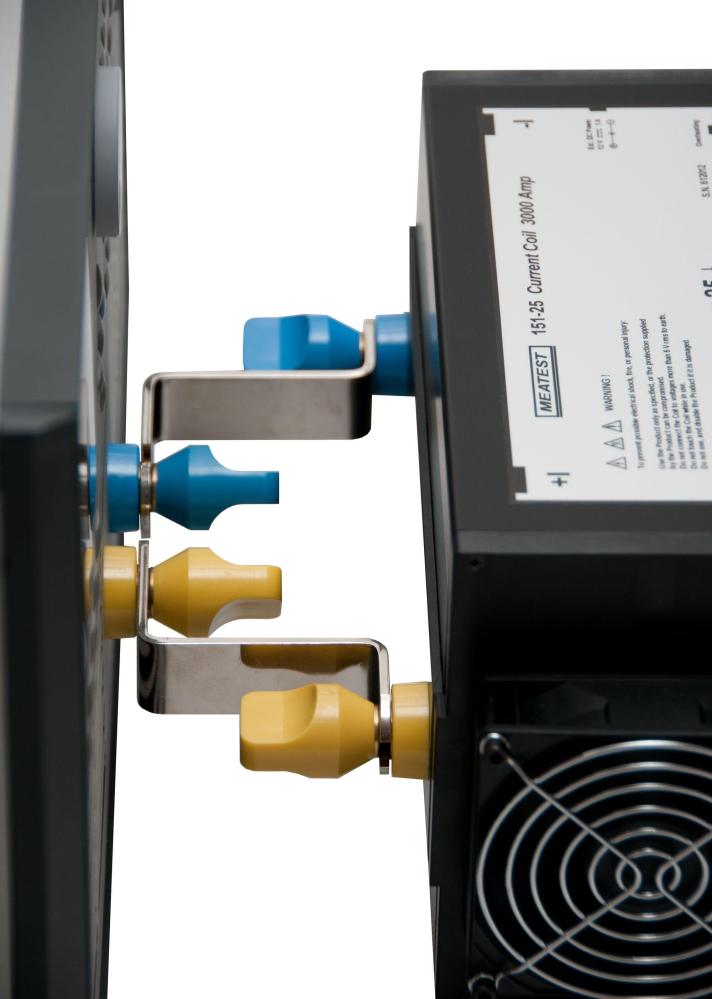

With current coil it can be used for calibration of
clamp meters.
Produktinformation
-
Art. nr
Meatest M151
