DS Instruments TG6000 Generisk RF SpårningsgeneratorDS Instruments TG6000 Generisk RF Spårningsgenerator
Bilder
  • DS Instruments TG6000 Generisk RF Spårningsgenerator
  • DS Instruments TG6000 Generisk RF Spårningsgenerator

DS Instruments TG6000 Generisk RF Spårningsgenerator

Art. nr: 72148
9 200 kr

Antal




Produktbeskrivning

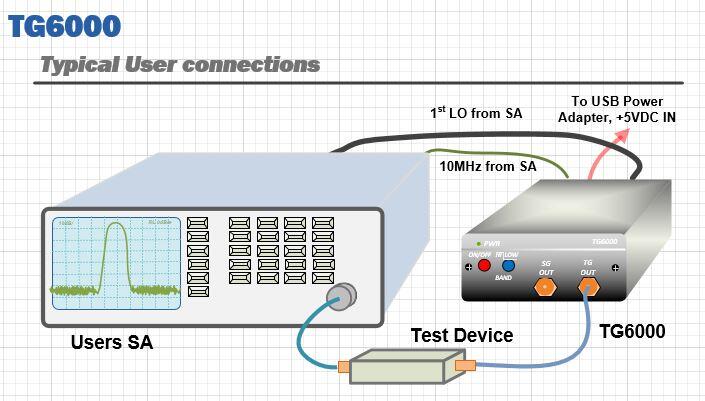

The TG6000 is a generic RF Tracking Generator that can be used with many existing Spectrum Analyzers. It covers a range from DC to 6GHz and also functions as a standalone RF signal generator from 25 to 6000MHz.

The TG6000 can replace the Agilent HP 85640A external tracking generator and adds a Signal Generator function as well. In addition it covers the 2nd band, which the 85640A does not, providing a TG signal past 6GHz. A very good troubleshooting and measuring tool to easily characterize filters and attenuators!

Tracking Signal Generator Specifications:
  • DC to 6.0 GHz Coverage
  • Internal Signal Generator:  25-6000 MHz
  • Typical TG output power: -5 dBm to +0dBm
  • Signal Generator power >= +10dBm
  • Very Compact Dimensions: 2.75″ x 4.10″ x 1.15″

TG6000 Features:
  • RF Output SMA connectors
  • Rear SMA 10MHz Reference Frequency input
  • Fully USB-powered
  • Sturdy all-aluminium enclosure
  • Industry Standard SCPI Command support
  • Status and power LEDs
