Rigol DG5351 En-kanals funktion / arbiträr vågforms generator 350 MHz / 1 GSa/s. Färgskärm

Art. nr: Rigol DG5351
87 895 kr

Antal




Produktbeskrivning

  •  4.3 inches, 16M true color TFT LCD
  • 350 MHz maximum sine output frequency, 1 GSa/s sample rate, 14 bits resolution
  • The 16+2 channels digital output module (optional) together with the analog channel can rebuild the more mixed signals in daily practice
  • Support an external power amplifier (optional) that can be configured online
  • Support frequency hopping output(optional) with hopping interval up to 80 ns and arbitrary editing frequency hopping patterns
  • 14 standard waveform functions: Sine, Square, Ramp, Pulse, Noise, Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, Haversine, Lorentz, Dual Tones and DC
  • Rise/Fall Time of the Pulse could be adjusted separately
  • Enable to edit arbitrary waveform up to 512 kpts and output arbitrary waveforms up to 128 Mpts
  • Support AM, FM, PM, ASK, FSK, PSK and PWM modulations
  • Support user-defined IQ vector signal modulation and IQ baseband/IF source output
  • Support Frequency Sweep and Burst output
  • Abundant I/O: waveform output, synchronous signal output, modulation input, 10 MHz clock input/output, trigger input/output
  • Enable to store and recall waveform data and instrument state, and support versatile file types
  • Standard configuration with 1 GBytes flash memory
  • Plenty of standard interfaces: double USB Hosts, USB Device, LAN, and GPIB (IEEE-488.2)
  • Seamlessly interconnected with RIGOL USB-TMC digital oscilloscopes for loading and reappearing waveforms
  • Support USB flash device storage for FAT files
  • Support PictBridge printer
  • Provide security lock hole
  • Support remote control through 10/100M Ethernet web
  • Conform to LXI-C instrument standards (Version 1.2)
  • Provide Chinese and English built-in help and input methods
  • Provide powerful waveform editing PC software





Mer information

The Rigol DG5351 is a 1 channel Function / Arbitary Waveform Generator to create high quality signals up to 350 MHz (Sine). Beside the analog output the devices include a USB-Host- and a USB-device, a RS-232, LAN and GPIB interface.



The Rigol Function-generators have a sophisticated and easy to use userinterface and offers multiple functions for all tasks. The menu navigation is very intuitional in use and all functions and parameters are easy to reach because of the graphical interface.



»Read more!




Relaterade

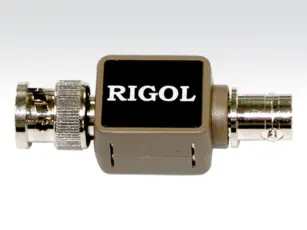

Rigol RA5040K Attenuator 40dB
70330
Rigol RA5040K Attenuator 40dB
40 dB attenuator for signal generators

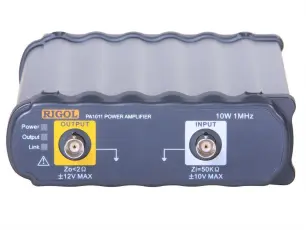

Rigol PA1011 Power Amplifier 10W
