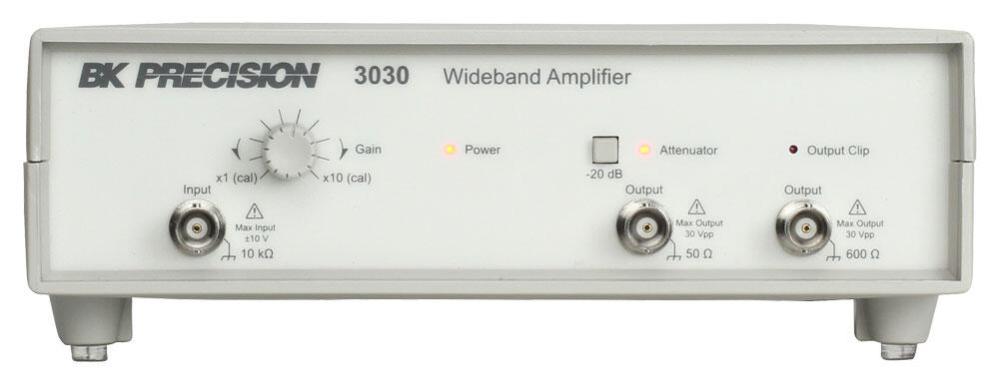

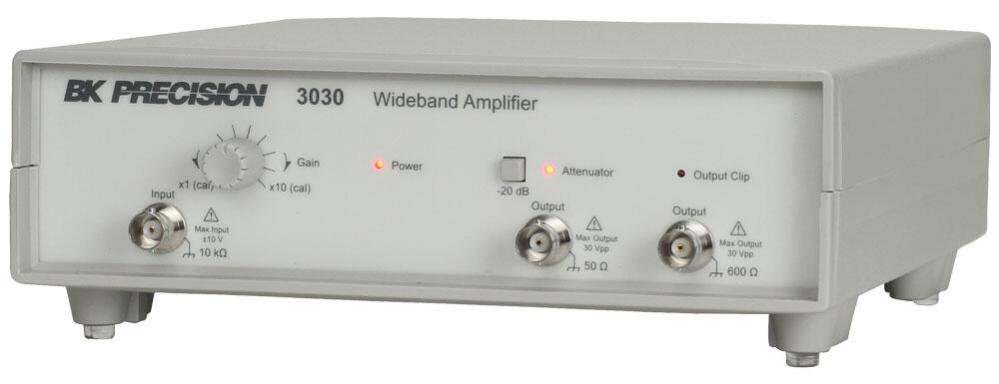

BK Precision BK3030-220 Broadband Amplifier

DC–1 MHz bandwidth, up to 30 Vpp output, adjustable gain x1–x10, 50 Ω and 600 Ω outputs, −20 dB attenuation and clipping indication.

3 930 SEK

The 3030 is a DC to 1MHz amplifier with a maximum output of 30 volts peak to peak from a  50 Ω source impedance. A 600 Ω output is also provided. The unit can output up to 15 volts peak to peak into a 50 Ω load and can drive up to 300 mA peak into a low impedance or short circuit.
The amplifier gain can be adjusted between x1 and x10 using the Vernier adjustment knob.  Additional features include a -20 dB attenuator and LED notifying when a signal is beyond the output limit (clipping).
  • 30 Vpp output from 50 Ω
  • DC to 1 MHz bandwidth
  • 50 Ω and 600 Ω outputs
  • -20 dB attenuation
  • LED notification for clipped signals
  • Fully protected output with high current drive

Product information

  • Art.no

    23230
