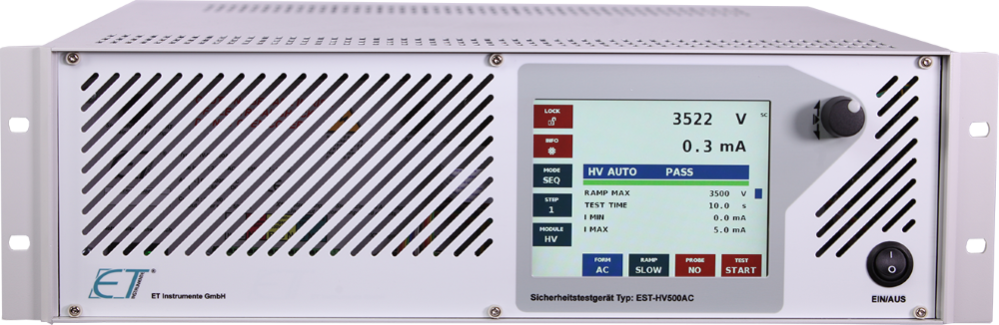

ET-Instrumente EST-HV500AC Högspänningsprovare 0-6kV AC, 0-100mA, 500VA
Bilder
  • ET-Instrumente EST-HV500AC Högspänningsprovare 0-6kV AC, 0-100mA, 500VA

ET-Instrumente EST-HV500AC Högspänningsprovare 0-6kV AC, 0-100mA, 500VA

Art. nr: ET-Instrumente EST-HV500AC

Begär offert




Produktbeskrivning

High Voltage Test Unit for EN-, IEC and VDE- Test



With the high voltage test unit EST-HV the dielectric strength tests on units, systems, packages, components and insulation material of all kinds can be practicabled.



The operational area is in manufacturing, incomming inspection and service, also investigation and development.



The high voltage test unit EST-HV500AC gives a isolated adjustable test voltage of 0 - 6000 Vac.



High voltage test pistols with 3m cable and HV-Connector, (with or without start button) is available as accessory options.



Mer information

  • Test voltage range 1 = 0 - 6000 Vac
  • Test voltage range 2 = 0 - 6000 Vdc (Option)
  • Test voltage 0 - 6000 Vdc
  • Ramp up and down function
  • PASS / FAIL indicator, optically and acustically
  • Automatic and manuel operation
  • Adjustable test time
  • Safety circuit input
  • External start input
  • Current switch-off 0 - 100 mA
  • Option RS 232- , Ethernet, Analogue- or USB Interface
