BK Precision DAS240 Datalogger
Modulär handhållen datalogger med 20–200 analoga kanaler, 16-bitars upplösning, 1 ms samplingshastighet och stöd för spänning, temperatur, ström och resistans.
Begär offert
- 20 to 200 analogue channels
- Input: voltage, thermocouple, Pt100-Pt1000, current (with optional adapter), resistance
- Voltage: from 1 mV to 200 V (±100 V)
- Temperature: thermocouples (all types), Pt100-Pt1000 (2 or 3 wires)
- 16 Bit vertical resolution
- Max sampling rate: 1 ms (1 kHz)
- 12 logical channels
- 4 alarms (output)
- 4 logical function input with counter & frequency meter capability
- 10" TFT panoramic touch screen
- Internal hard drive: 32 Gb

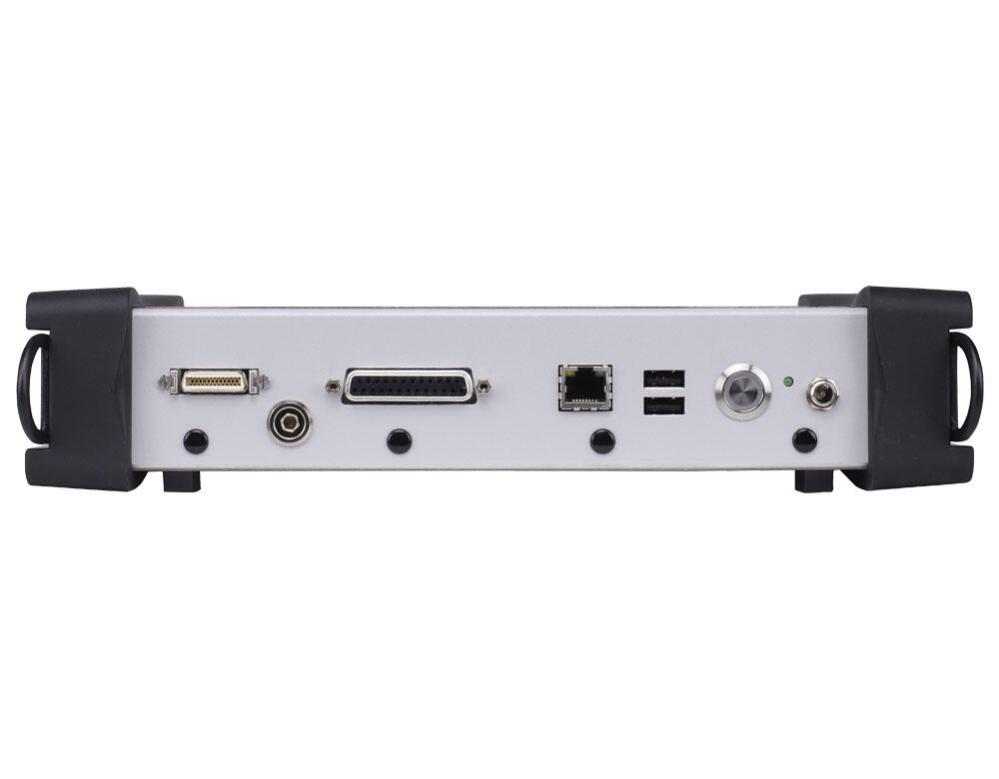

- Interfaces: USB, Ethernet, Wifi (option)
- Lithium-ion battery (factory option): 15 h autonomy
- DasLab software (licence free)
- Safety: IEC 61010 CAT I 100 V
- LabWiew® driver
- Supplied with calibration report
The new DAS40 recorder has been designed to measure all parameters you can find in a process: voltage measurements, measurements on sensors (0-10 V), temperature measurements (thermocouple, Pt100-Pt1000), current measurements (with optional shunt), resistance measurement, counter, frequency. You can view directly the results of measurements (graphs, numerical values) and memorize your results in the recorder memory or in an USB memory stick. The data transfer and data processing can be done later with a personal computer using the licence free DasLab software.
User-friendly interface

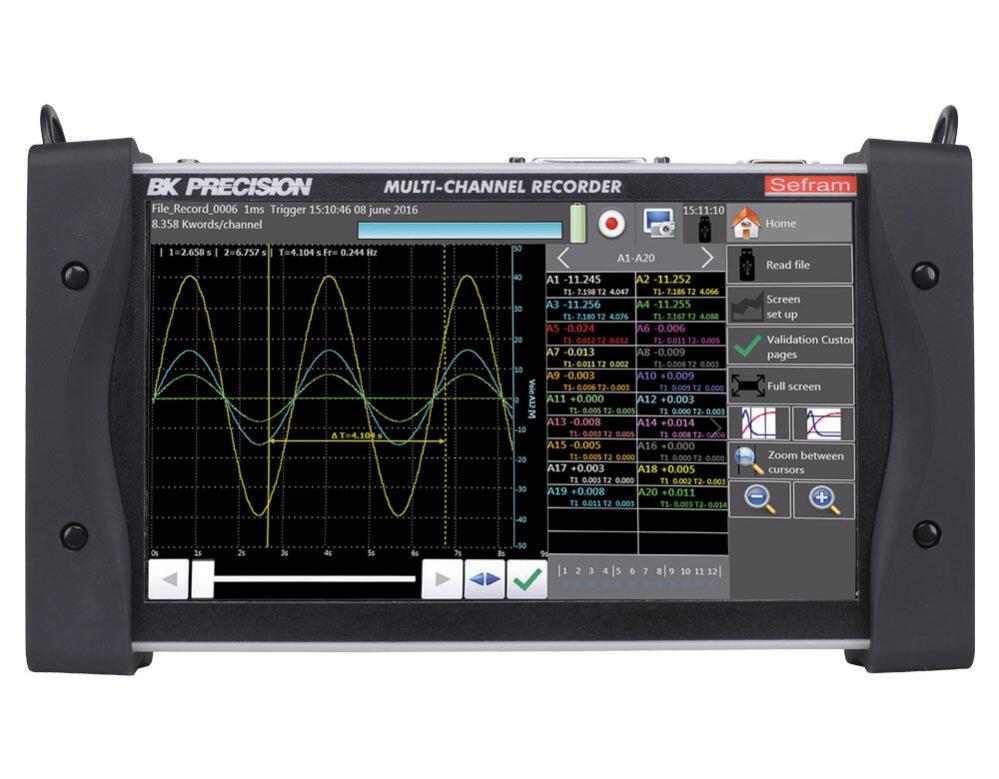

The DAS240 is equipped with a panoramic 10" touch screen: the user interface becomes absolutely interactive. The icons and symbols used makes the browsing very easy and will save your time.
Multiple applications
The DAS240 recorder is really a general purpose recorder for process applications:
- Multi channel temperature monitoring and recording
- 0-10 V sensors monitoring and recording
- Voltage measurements
- Pulse counting
- 4-20 mA measurement and monitoring (with optional shunt).
A modular solution

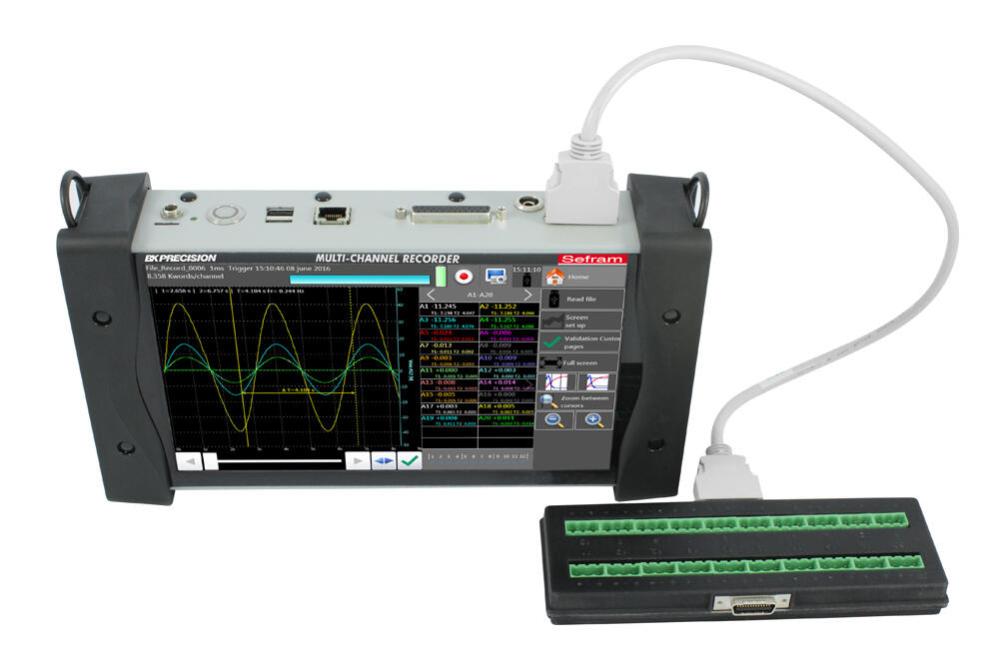

The DAS240 is supplied with 20 analogue channels, but you can add 180 analogue channels, by steps of 20. All modules (20 channels) are strictly identical and can perform the same measurements (voltage, temperature, resistance, current).
Display: 10" TFT touch screen LCD, backlighted, 1024 x 600 dots
Power supply: 15V / 4 A max with main adapter (100/240VAC)
Battery: factory option, non removable, Lithium-ion
Autonomy with battery: 15 h with standby mode, 10 h without stand-by mode
Operating temperature: 0 °C to 40 °C, 80 % RH (no condensation)
Storage temperature: -20 °C to 60 °C
Dimensions: 66 x 298 x 176mm
Weight: 1,5kg
Safety: Cat I 100 V, according to IEC61010-1
Warranty: 2 years
Input Specification DC Voltage
- Ranges: 1m V (±0,5 mV) to 200 V (±100 V)
- Maximum input voltage: 100 V DC
- Accuracy: 0,1 % of the full scale ±10 µV
