iseg VHS 2/4/C 0xxx Multichannel 500V - 10kV  max. 9W/Ch  4 / 12 Channel High Voltage power supply in VMEiseg VHS 2/4/C 0xxx Multichannel 500V - 10kV  max. 9W/Ch  4 / 12 Channel High Voltage power supply in VME
  • iseg VHS 2/4/C 0xxx Multichannel 500V - 10kV  max. 9W/Ch  4 / 12 Channel High Voltage power supply in VME
  • iseg VHS 2/4/C 0xxx Multichannel 500V - 10kV  max. 9W/Ch  4 / 12 Channel High Voltage power supply in VME

iseg VHS 2/4/C 0xxx Multichannel 500V - 10kV max. 9W/Ch 4 / 12 Channel High Voltage power supply in VME

Art. nr: iseg VHS 2/4/C 0xxx

Begär offert




Produktbeskrivning

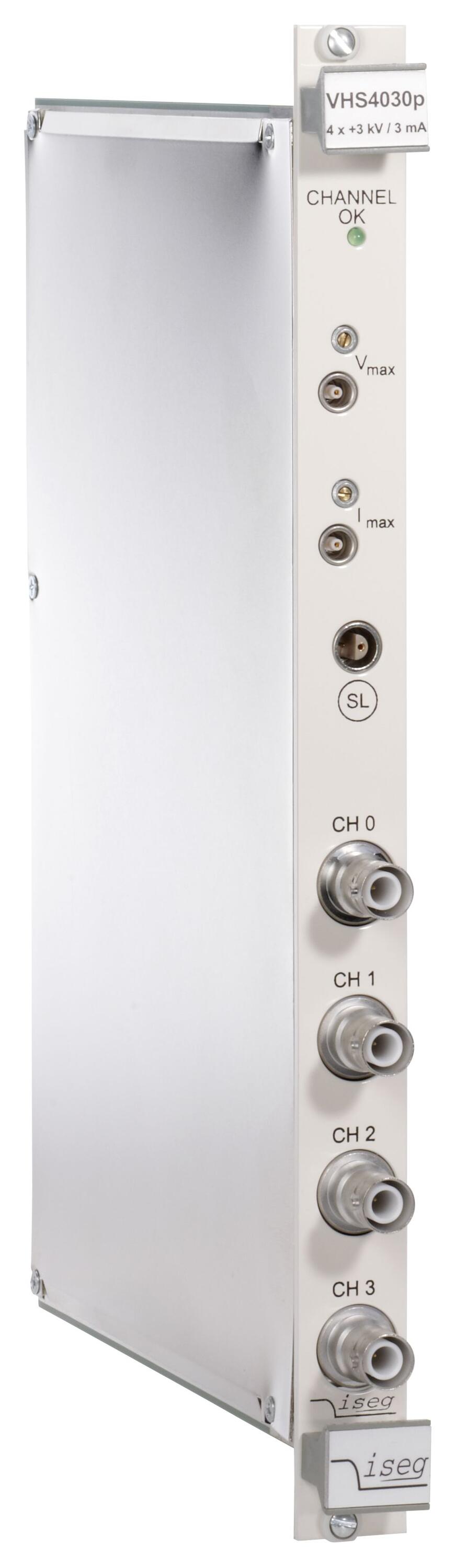

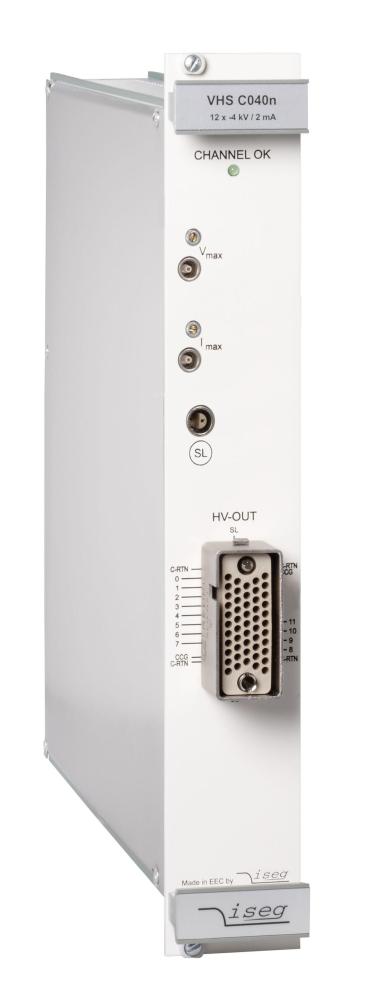

  • VME high voltage module in 1 slot width with 4 HV channels or 2 slot width with 2, 4 or 12 HV channels
  • All channels with common GND and voltage and current regulation, in different versions with voltages up to 10 kV and currents up to 15 mA
  • Other voltage and current combinations on request, also combined with low voltages (VMS Modules)
  • Low ripple and noise ( typ. < 10mVp-p up to 4kV, < 30mVp-p at 10kV)
  • Measurement and setting values in floating point single precision
  • Hardware current and voltage limit per module
  • Programmable fast hardware current trip per channel
  • Flexible group and event handling, e.g. for time delayed trip processing
  • Protection circuitry e.g. safety loop , ramp down, optional INHIBIT per channel
  • Each channel fully remote controllable via VME - interface
Read more...
