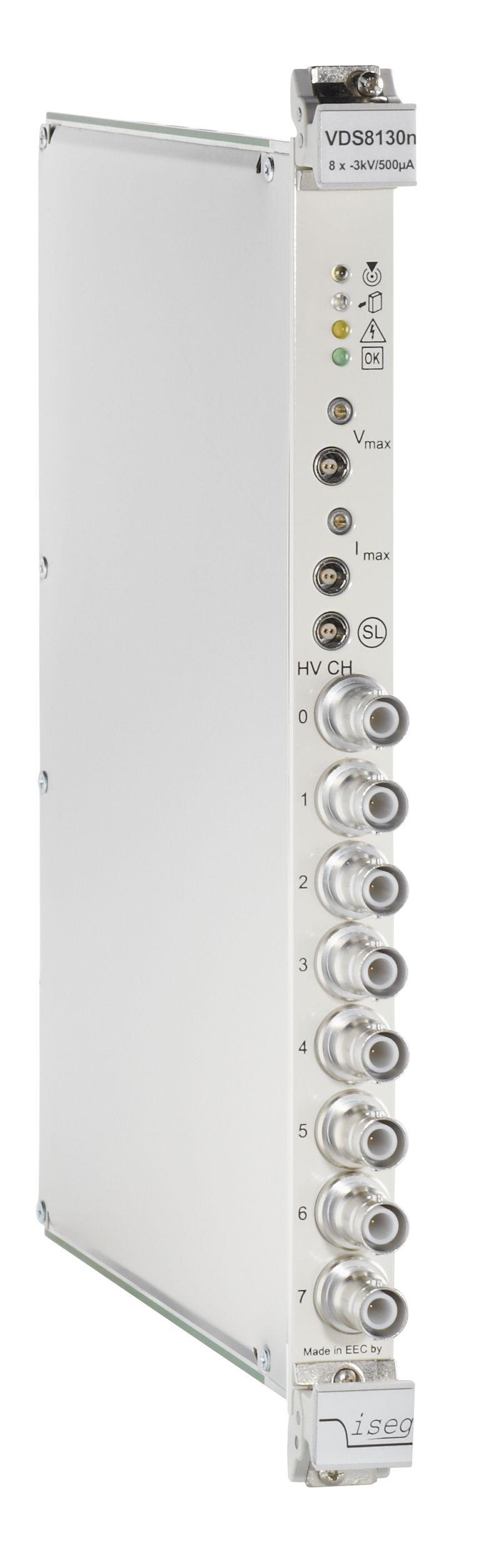

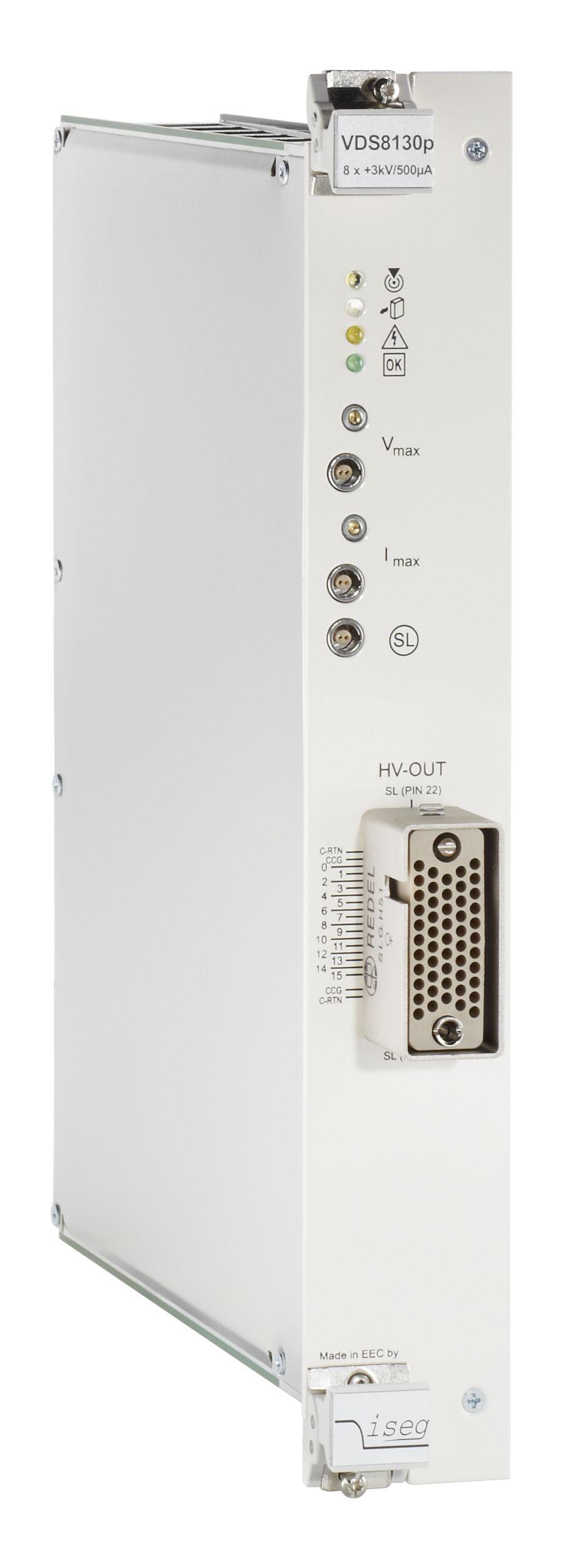

iseg VDS 8/18 1xx Multichannel 500V - 3kV  max. 1,5W/Ch.  8 / 24 Channel with Common Floating-GND in VMEiseg VDS 8/18 1xx Multichannel 500V - 3kV  max. 1,5W/Ch.  8 / 24 Channel with Common Floating-GND in VME
  • iseg VDS 8/18 1xx Multichannel 500V - 3kV  max. 1,5W/Ch.  8 / 24 Channel with Common Floating-GND in VME
  • iseg VDS 8/18 1xx Multichannel 500V - 3kV  max. 1,5W/Ch.  8 / 24 Channel with Common Floating-GND in VME

iseg VDS 8/18 1xx Multichannel 500V - 3kV max. 1,5W/Ch. 8 / 24 Channel with Common Floating-GND in VME

Art. nr: iseg VDS 8/18 1xx

Begär offert




Produktbeskrivning

  • VME high voltage modules in 1 slot width with 8 HV channels or 2 slot width with 24 HV channels
  • Voltage up to 3 kV and current up to 1 mA
  • Low ripple and noise ( <20 mVp-p)
  • Common floating return reducing the voltage noise level
  • Live insertion capability
  • Data format measurement and setting values: floating-point single precision
  • Hardware current trip and voltage limit per module
  • Flexible Group- and Eventhandling
  • Protection circuitry e.g. safety loop, ramp down, optional fast
  • Very compact (6U cassette)
  • Each channel fully remote controllable via VME interface according to VME/VME64 standards
