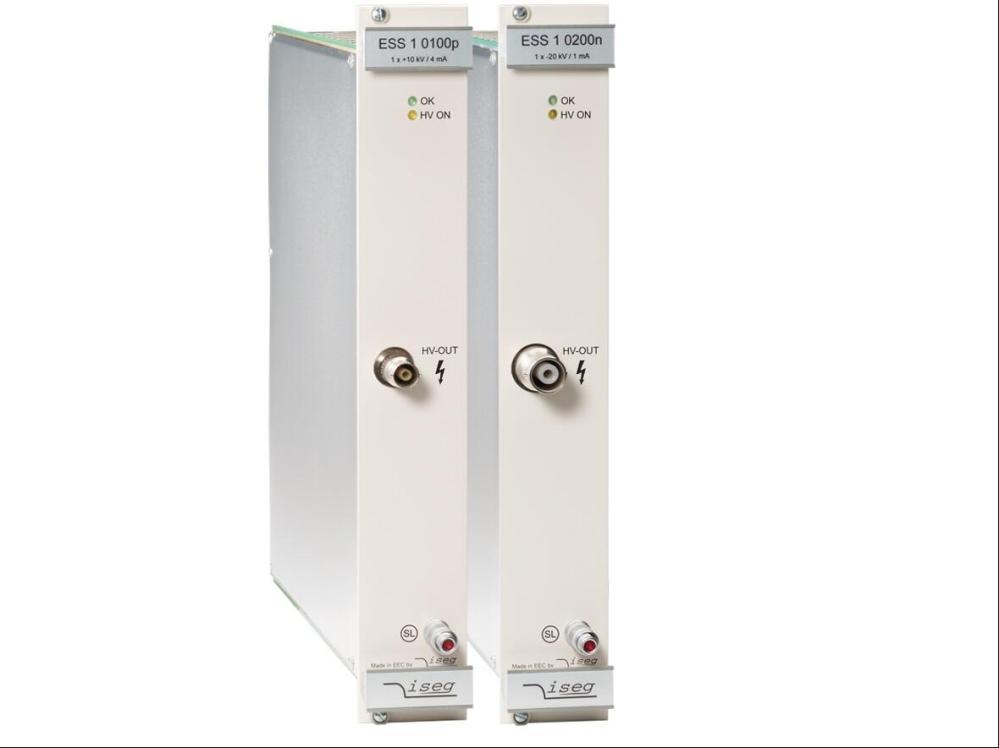

The ESS module is a single channel high voltage power supply in MMS-system (Eurocard format) with 2-quadrant capabilities. It can be used as unipolar current sink and source, which perfectly covers requirements of electron optical systems or capacitive loads. The ESS series is built in floating ground principle to reduce voltage noise level.
The configuration of output voltage and current can be customized on request. The module is made of high precision components as 24 bit ADC and 16 bit DAC and provides comprehensive security features.
- 1 channel
- 2-quadrant capabilities, usable as unipolar current sink and source
- Perfect for electron optical systems and capacitive loads
- Low ripple and noise
- Floating ground principle
- Programmable parameters (delayed trip etc.)
