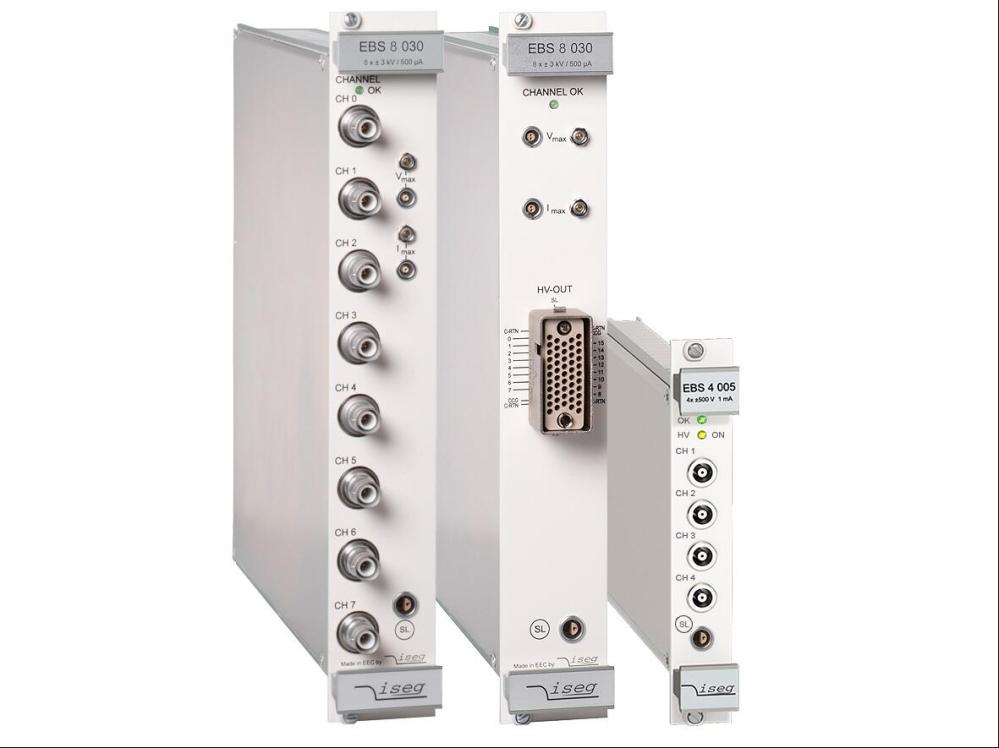

iseg EBS -Bipolar 4 Quadrant High Voltage Module with CFG
  • iseg EBS -Bipolar 4 Quadrant High Voltage Module with CFG

iseg EBS -Bipolar 4 Quadrant High Voltage Module with CFG

Art. nr: iseg EBS

Begär offert




Produktbeskrivning

The bipolar EBS distribution modules are multichannel high voltage power supplies in MMS- and MMC system (Eurocard format) with full 4-quadrant capabilities. The EBS can be used as bipolar current sink and source, which perfectly covers requirements of electron optical systems or capacitive loads. The EBS is built in common floating ground principle to reduce voltage noise level.

With up to 16 channels each single channel has an independent voltage control up to 3 kV channel-voltage-difference. The EBS configuration of output voltage and current can be customized on request. The module is made of high precision components as 24 bit ADC and 20 bit DAC and provides comprehensive security features.

  • Full 4-quadrant capabilities, usable as bipolar current sink and source
  • Perfect for electron optical systems and capacitive loads
  • Low ripple and noise
  • Hardware voltage and current limit
  • Programmable parameters (delayed trip etc.)
