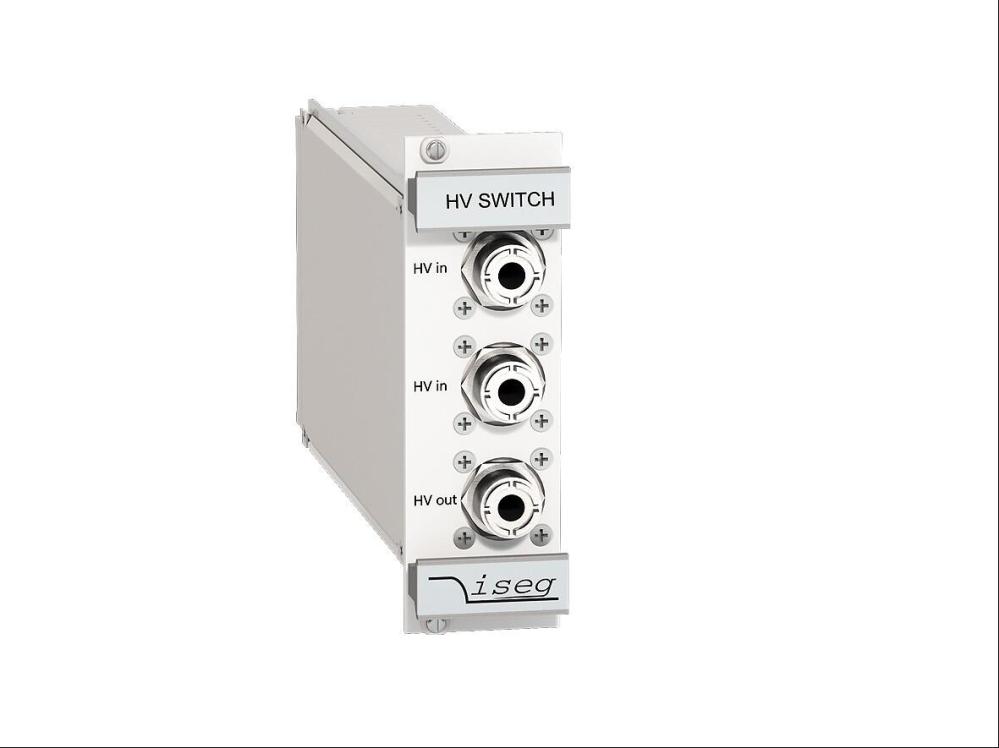

The 3U switching module with two inputs and one output fits into the ECH 12A. The output is connected via the switch with one of the inputs. This high voltage switch has an isolation voltage up to 19 kV. The module can be used with two CPS modules to drive electrostatic lens in an ion beam application.
- Up to 19kV
- 2 inputs, 1 outputs
