SRS PS310 - 1.25 kV DC Power Supply, 25 W. Dubbel polaritet

Art. nr: SRS PS310

Begär offert




Produktbeskrivning

  • 1.25 kV supply
  • 25 W output power
  • 1 volt resolution
  • 0.001 % regulation, 0.05 % accuracy
  • Dual polarity
  • Programmable limits and trips
  • 0.0015 % ripple
  • GPIB interface (opt.)


Mer information

The PS310 High Voltage Power Supply is a microprocessor-controlled, switching DC power supply capable of delivering 25 W of output power at a voltage up to 5.0 kV.



PS310 has 0.001 % regulation and 0.05 % accuracy, and the output voltage can be adjusted with 1 V resolution over the entire operating range.



The PS310 has rear-panel SHV connectors. Optional cables allow connection with standard high-voltage connectors (SHV or MHV). A three-position, high-voltage enable switch on the front panel prevents the high voltage from being turned on under computer control unless the switch has been manually armed.

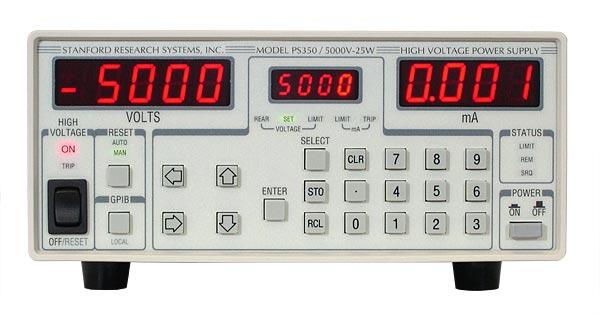

A highly visible red LED always indicates when the high voltage is on. Convenient front-panel LED displays indicate both the voltage and current delivered to the load at all times.
